X220 Body Harness to I/P Harness

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
GM1664488Courtesy of GENERAL MOTORS CORP.

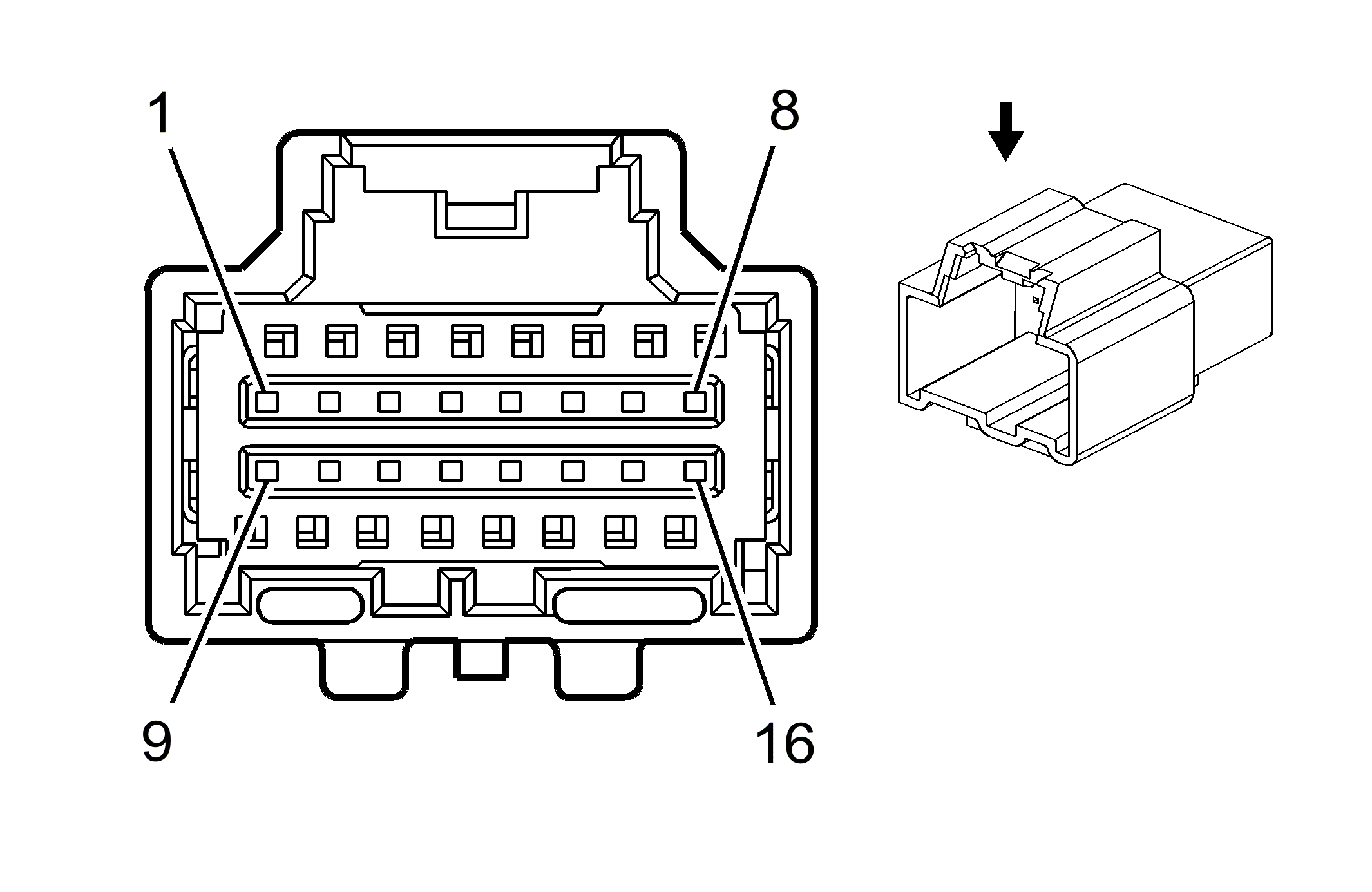

GM1707495Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 7283-9078-80
  • Service: 15136074
  • Description: 16-Way F Kaizen 0.64 Series (BN)
 Connector Part Information
  • OEM: 7282-9072-80
  • Service: 89047490
  • Description: 16-Way M YESC Kaizen 0.64 Unsealed (BN)
Terminal Part Information
  • Terminal/Tray: 7116-4618-02
  • Core/Insulation Crimp: Pins: 1-9. 11-13, 16 : P/P
  • Core/Insulation Crimp: Pins: 14, 15 : See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
 Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
X220 Body Harness to I/P Harness

Pin Wire Circuit Function Pin Wire Circuit Function
1 0.35 BN/WH 367 Remote Radio Left Audio Signal (U2X/U2Y) 1 0.35 BN/WH 367 Remote Radio Left Audio Signal (U2X/U2Y)
2 0.35 BK/WH 372 Remote Radio Audio Output (-) 2 0.35 BK/WH 372 Remote Radio Audio Output (-)
3 0.35 BARE 5345 Drain Wire (U2X/U2Y) 3 0.35 BARE 5345 Drain Wire (U2X/U2Y)
4 0.35 D-GN/WH 368 Remote Radio Right Audio Signal (U2X/U2Y) 4 0.35 D-GN/WH 368 Remote Radio Right Audio Signal (U2X/U2Y)
5 0.35 GY 388 Remote Radio Right Audio Signal (U2X/U2Y) 5 0.35 GY 388 Remote Radio Right Audio Signal (U2X/U2Y)
6 0.35 BARE 1792 Drain Wire (UAV and UE1) 6 0.35 BARE 1792 Drain Wire (UAV and UE1)
7 0.35 PK/BK 5152 Voice Recognition Audio Low Reference 7 0.35 PK/BK 5152 Voice Recognition Audio Low Reference
0.35 BARE 514 Ground (WXS) 0.35 BARE 514 Ground (WXS)
8 0.35 GY 655 Cellular Microphone Low Reference (WXS) 8 0.35 GY 655 Cellular Microphone Low Reference
0.35 PK 5149 Voice Recognition Audio Signal 0.35 PK 5149 Voice Recognition Audio Signal
9 0.35 YE VICS2 COAX 9 0.35 YE VICS2 COAX
10 - - Not Used 10 - - Not Used
11 0.35 L-BU 1405 Remote Playback Device Audio Common Signal (UE1) 11 0.35 L-BU 1405 Remote Playback Device Audio Common Signal (UE1)
0.35 GY VICS1 COAX 0.35 GY VICS1 COAX
12 0.35 BARE 1782 Drain Wire (U2X) 12 0.35 BARE 1782 Drain Wire (U2X)
0.35 OG/BK 1406 Remote Playback Device Left Audio Signal (UE1) 0.35 OG/BK 1406 Remote Playback Device Left Audio Signal (UE1)
13 0.35 BARE 814 Drain Wire (UE1) 13 0.35 BARE 814 Drain Wire (UE1)
0.35 BN VICS4 COAX 0.35 BN VICS4 COAX
14 0.5 GY COAX1B COAX 14 0.5 GY COAX2B COAX
15 0.5 BK SHIELD1B COAX 15 0.5 BK SHIELD2B COAX
16 0.35 PK 539 Ignition 1 Voltage (UH3) 16 0.35 PK 539 Ignition 1 Voltage (UH3)
