Fuel Feed Pipe Installation (LLT)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Fuel Rail Crossover Pipe

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the LH to RH fuel rail crossover pipe.
Tighten: Tighten the fuel rail crossover pipe fittings to 30 N.m (22 lb ft).

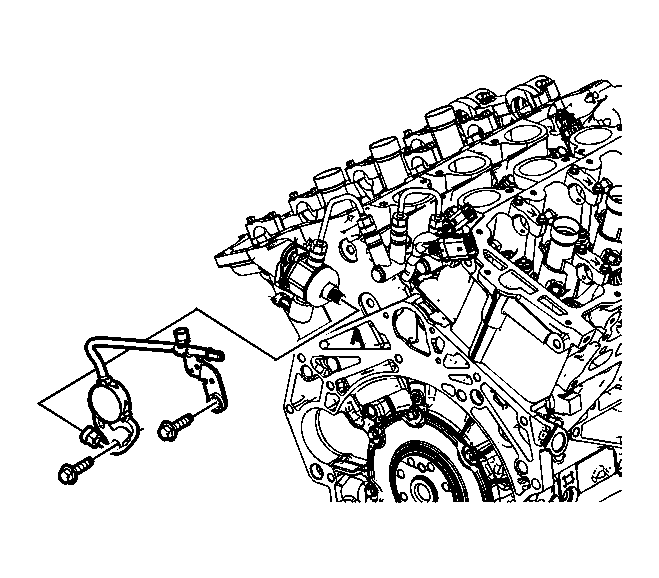

Fig 2: View of Fuel Rail Wiring Connectors and Bracket

Courtesy of GENERAL MOTORS CORP.

Install the fuel feed pipe.
Install the fuel feed pipe bolts.
Tighten: Tighten the fuel feed pipe bolts to 10 N.m (89 lb in).
Install the fuel rail wiring connectors to the fuel feed pipe bracket.

Fig 3: View of Fuel Rail Noise Shield

Courtesy of GENERAL MOTORS CORP.

Install the fuel rail noise shield.
