Engine Front Cover Disassemble: Procedures

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Removing & Installing Crankshaft Front Oil Seal
    GM1950005Courtesy of GENERAL MOTORS CORP.
  1. Remove the crankshaft front oil seal from the engine front cover using the J 45000  . See Special Tools .

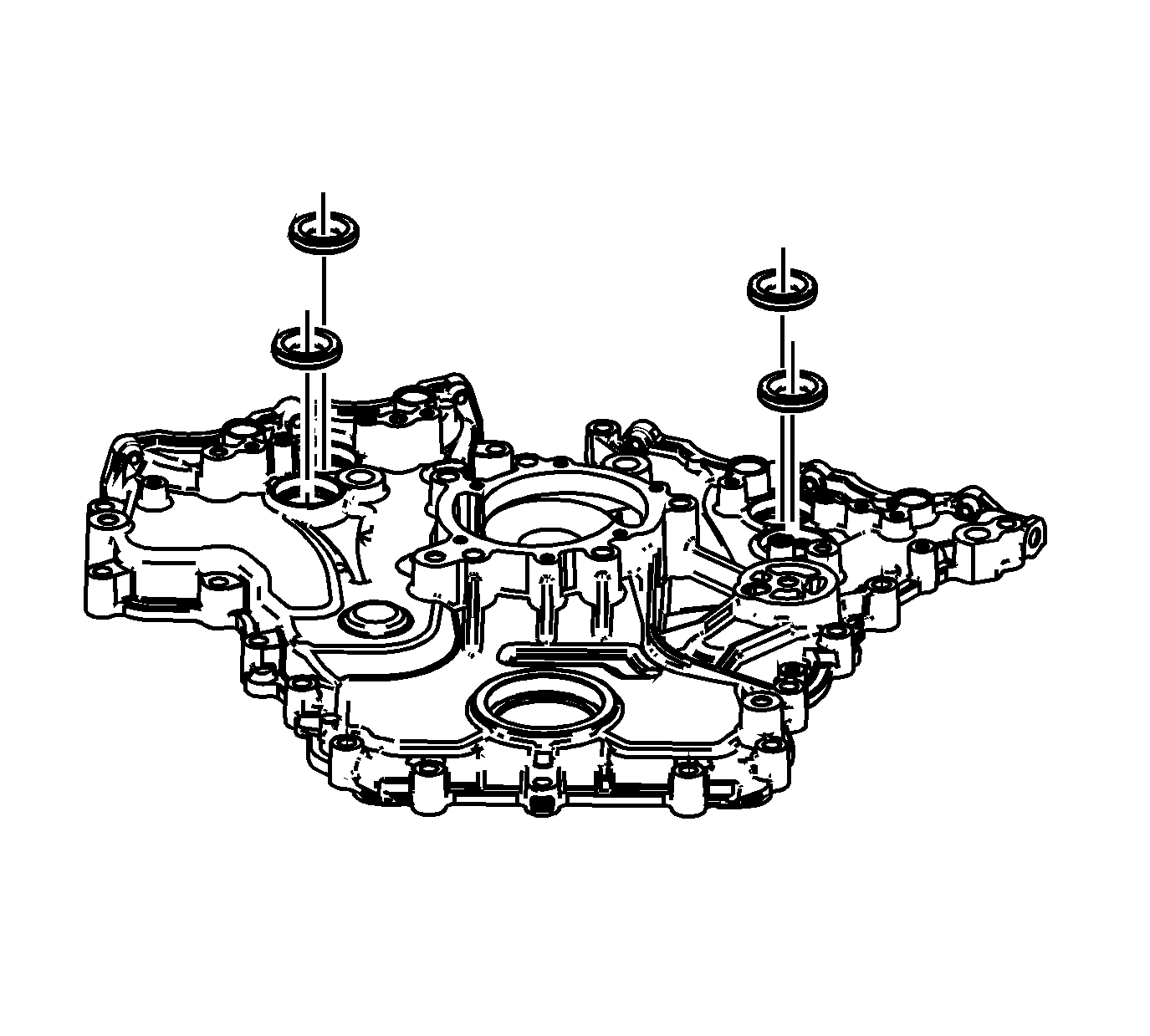

    2. Fig 2: View Of Camshaft Position Actuator Valve Oil Seals
    GM1210998Courtesy of GENERAL MOTORS CORP.
  2. Remove the camshaft position actuator valve oil seals from the engine front cover.
    3. Fig 3: Identifying Water Pump Seal
    GM1211002Courtesy of GENERAL MOTORS CORP.
  3. Remove the water pump seal from the engine front cover.
  4. Discard the water pump seal.
