Left Camshaft Cover

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

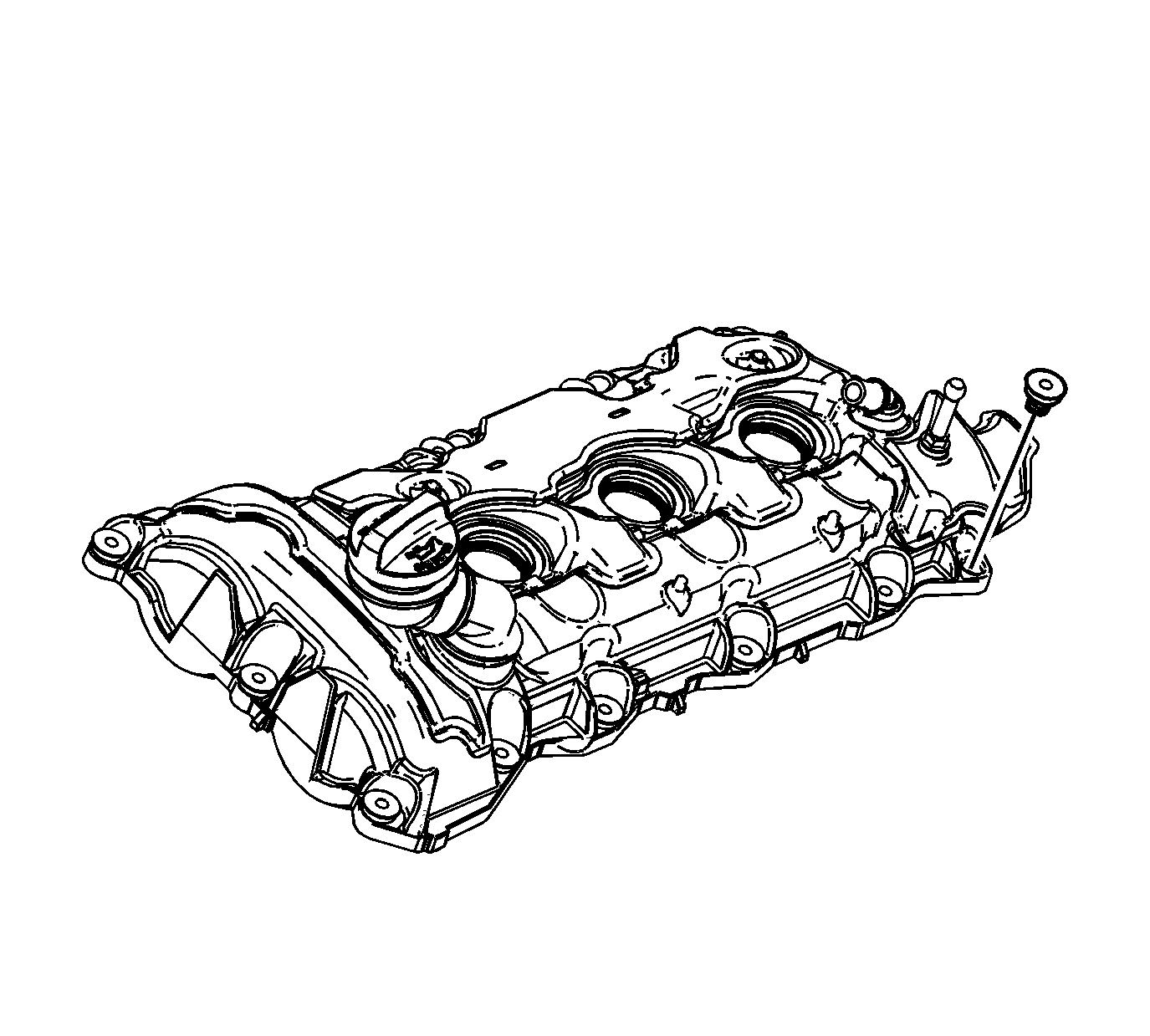

    Fig 1: Identifying Left Camshaft Cover Bolt Grommets
    GM1871075Courtesy of GENERAL MOTORS CORP.
  1. Remove and discard the left camshaft cover bolt grommets.

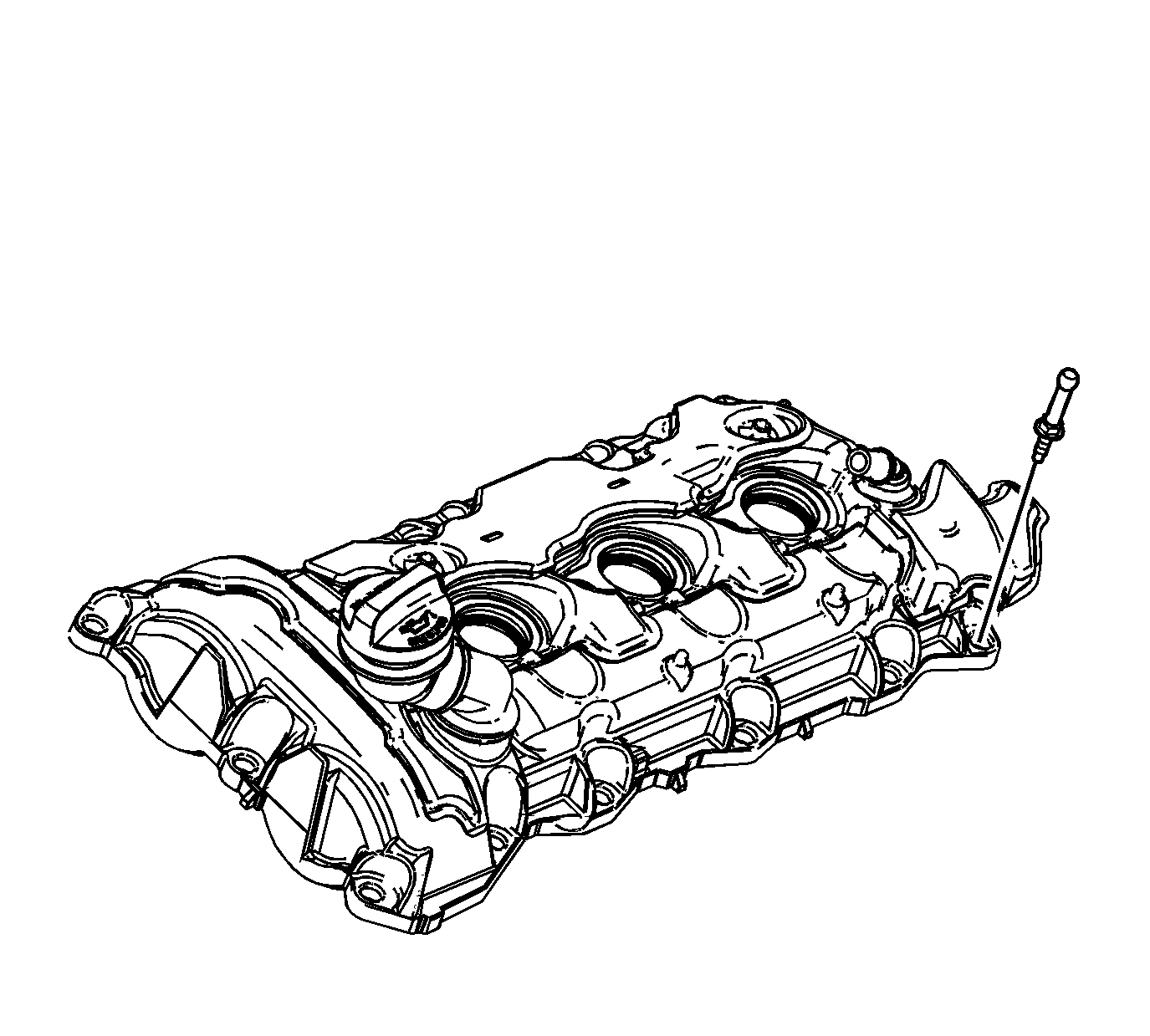

    2. Fig 2: Identifying Fuel Injector Sight Shield Ballstud
    GM1871076Courtesy of GENERAL MOTORS CORP.
  2. Remove the fuel injector sight shield ballstud.

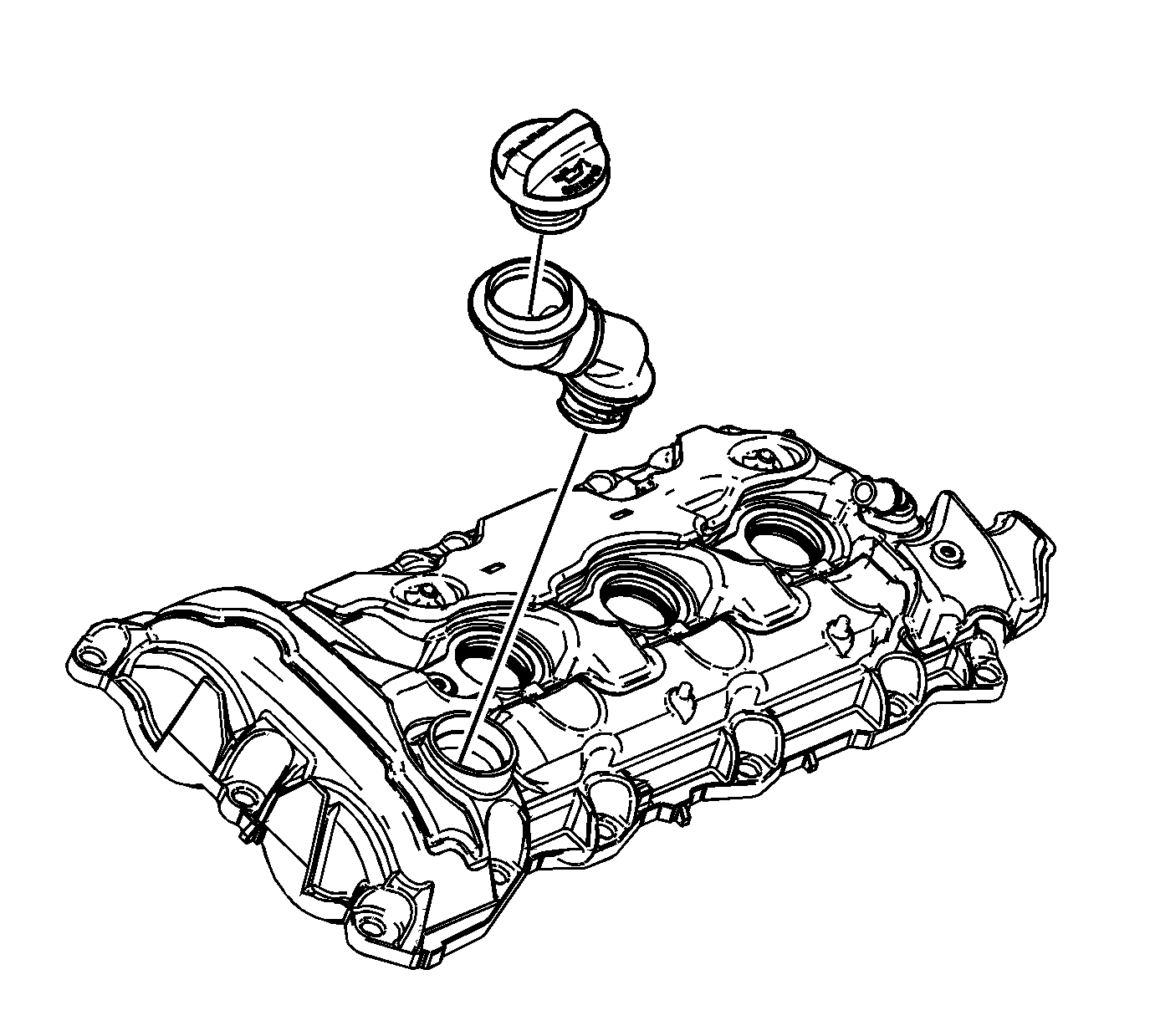

    3. Fig 3: Identifying Oil Fill Cap
    GM1871077Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil fill cap.
    4. Fig 4: View of Camshaft Cover and Gasket Assembly
    GM1864448Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not reuse the camshaft cover gasket and spark plug shield tube seals.
  4. Remove and discard the left camshaft cover gasket.
    5. Fig 5: View of Camshaft Cover and Spark Plug Shield Tube Seals
    GM1864449Courtesy of GENERAL MOTORS CORP.
  5. Remove and discard the left spark plug shield tube seals.
