Engine Block Disassemble

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Block Heater Cartridge
    GM1930194Courtesy of GENERAL MOTORS CORP.
  1. Remove the block heater cartridge.
    2. Fig 2: View Of Right Knock Sensor
    GM1930195Courtesy of GENERAL MOTORS CORP.
  2. Remove the right knock sensor bolt.
  3. Remove the right knock sensor.
    4. Fig 3: View Of Crankshaft Position Sensor
    GM1930246Courtesy of GENERAL MOTORS CORP.
  4. Remove the crankshaft position sensor bolt.
  5. Remove the crankshaft position sensor.
    6. Fig 4: View of Sensor O-Ring
    GM1930269Courtesy of GENERAL MOTORS CORP.
  6. Remove the crankshaft position sensor O-ring, if damaged.
    7. Fig 5: View of Knock Sensor Assembly
    GM1930214Courtesy of GENERAL MOTORS CORP.
  7. Remove the left knock sensor bolt.
  8. Remove the left knock sensor.

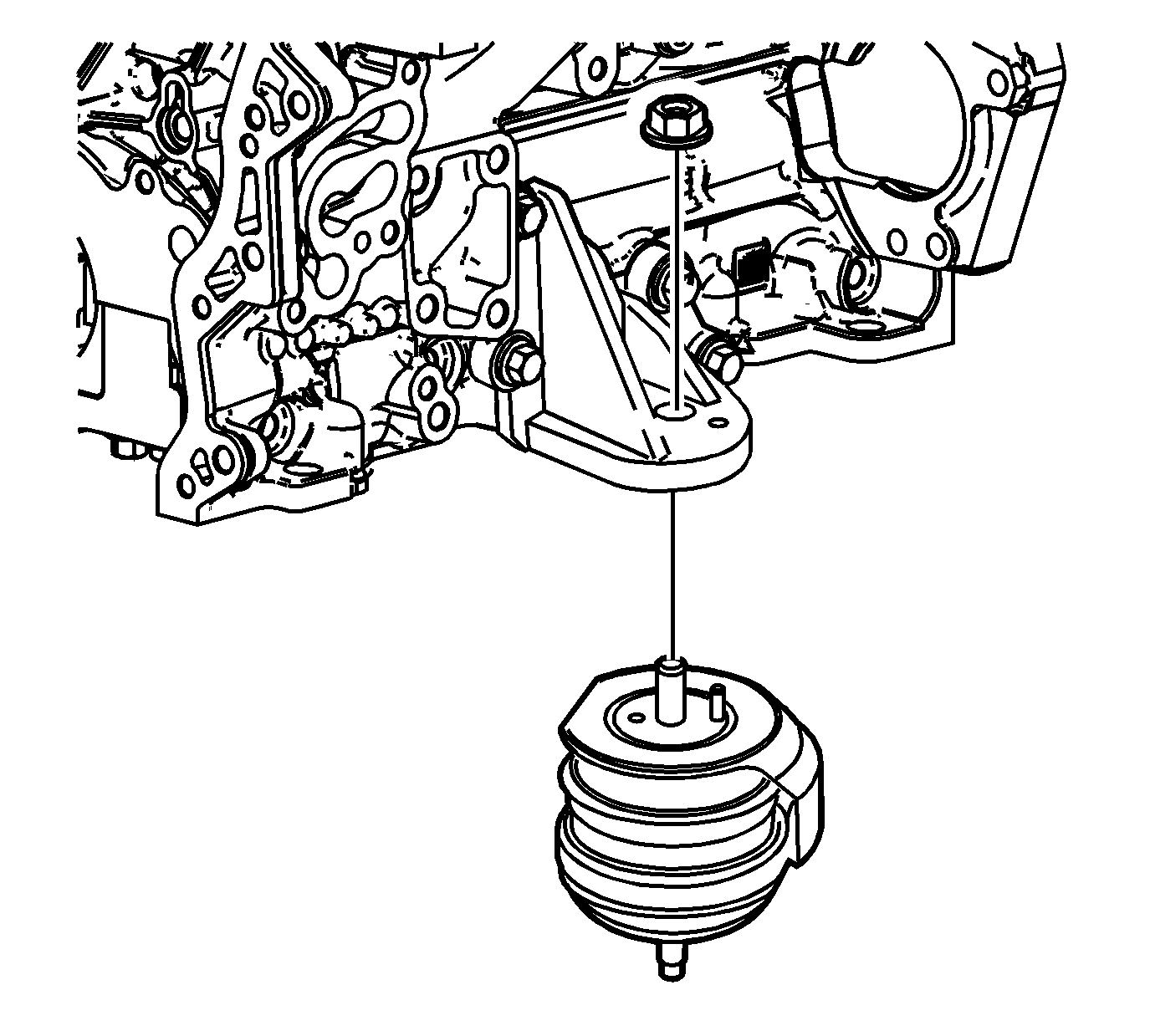

    9. Fig 6: Identifying Engine Mount Nut
    GM1966954Courtesy of GENERAL MOTORS CORP.
  9. Remove the left engine mount nut.
  10. Remove the left engine mount.

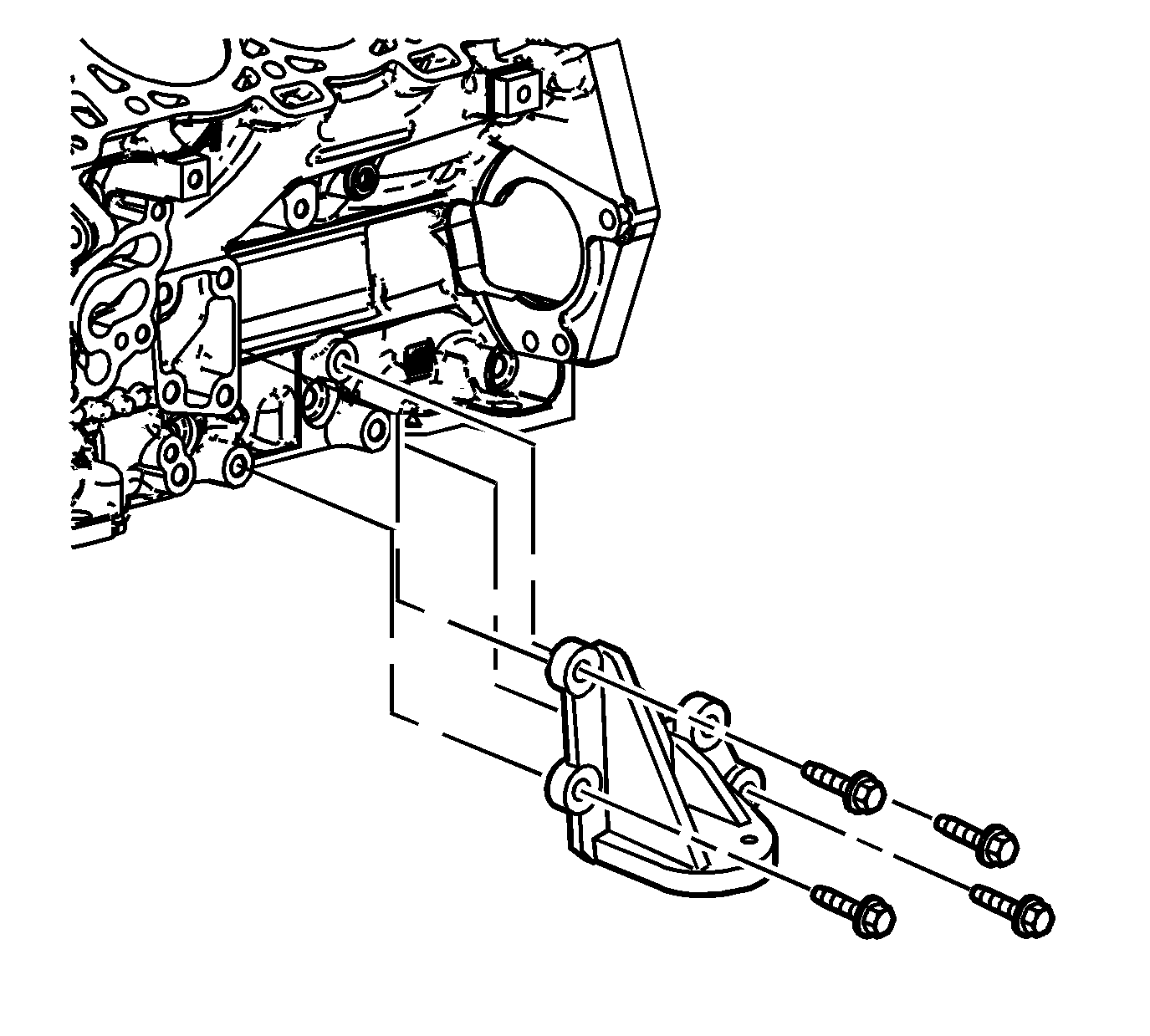

    11. Fig 7: View of Engine Mount Bracket Bolt Assembly
    GM1966955Courtesy of GENERAL MOTORS CORP.
  11. Remove the left engine mount bracket bolt.
  12. Remove the left engine mount bracket.

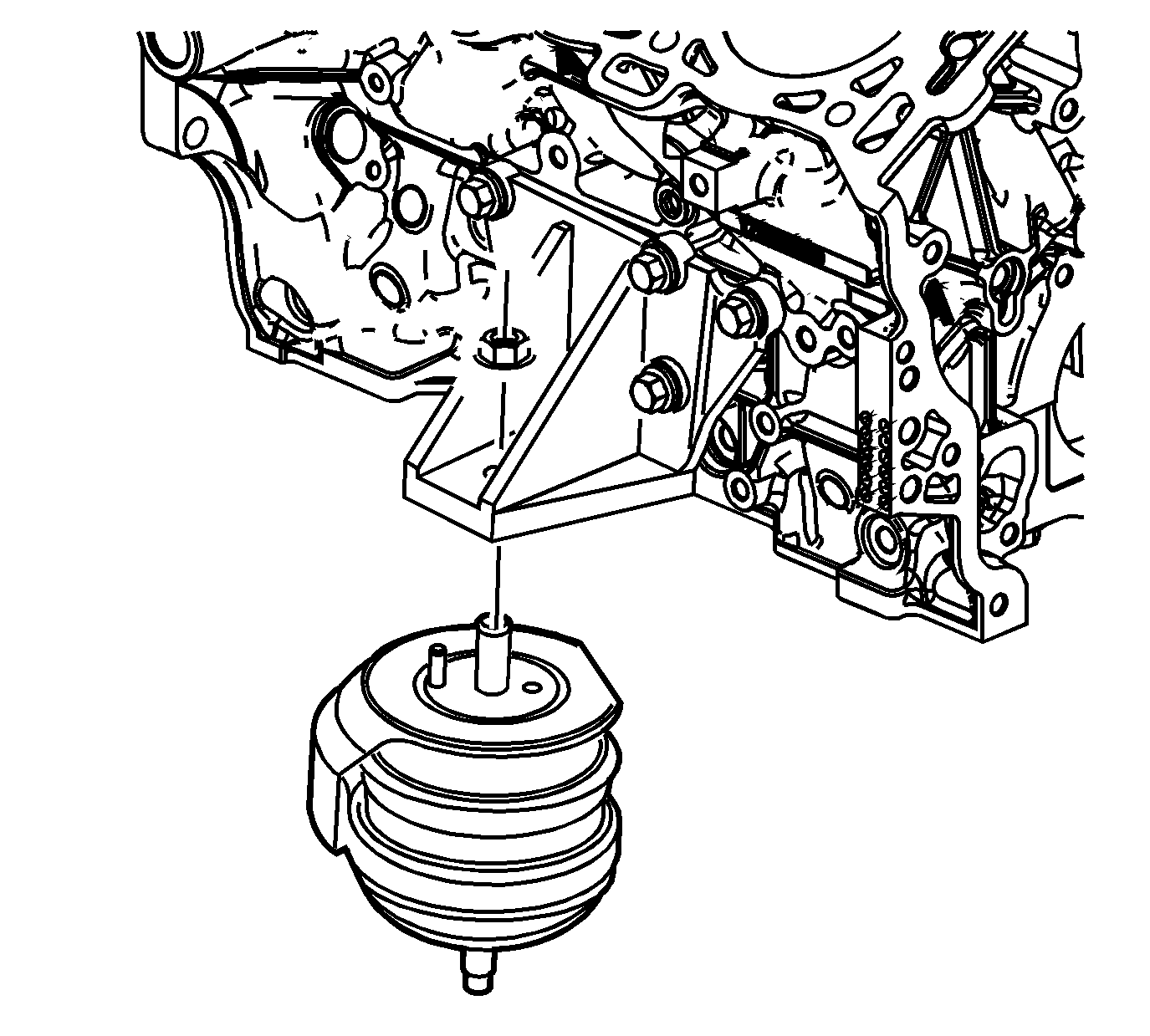

    13. Fig 8: View of Engine Mount Nut
    GM1966956Courtesy of GENERAL MOTORS CORP.
  13. Remove the right engine mount nut.
  14. Remove the right engine mount.

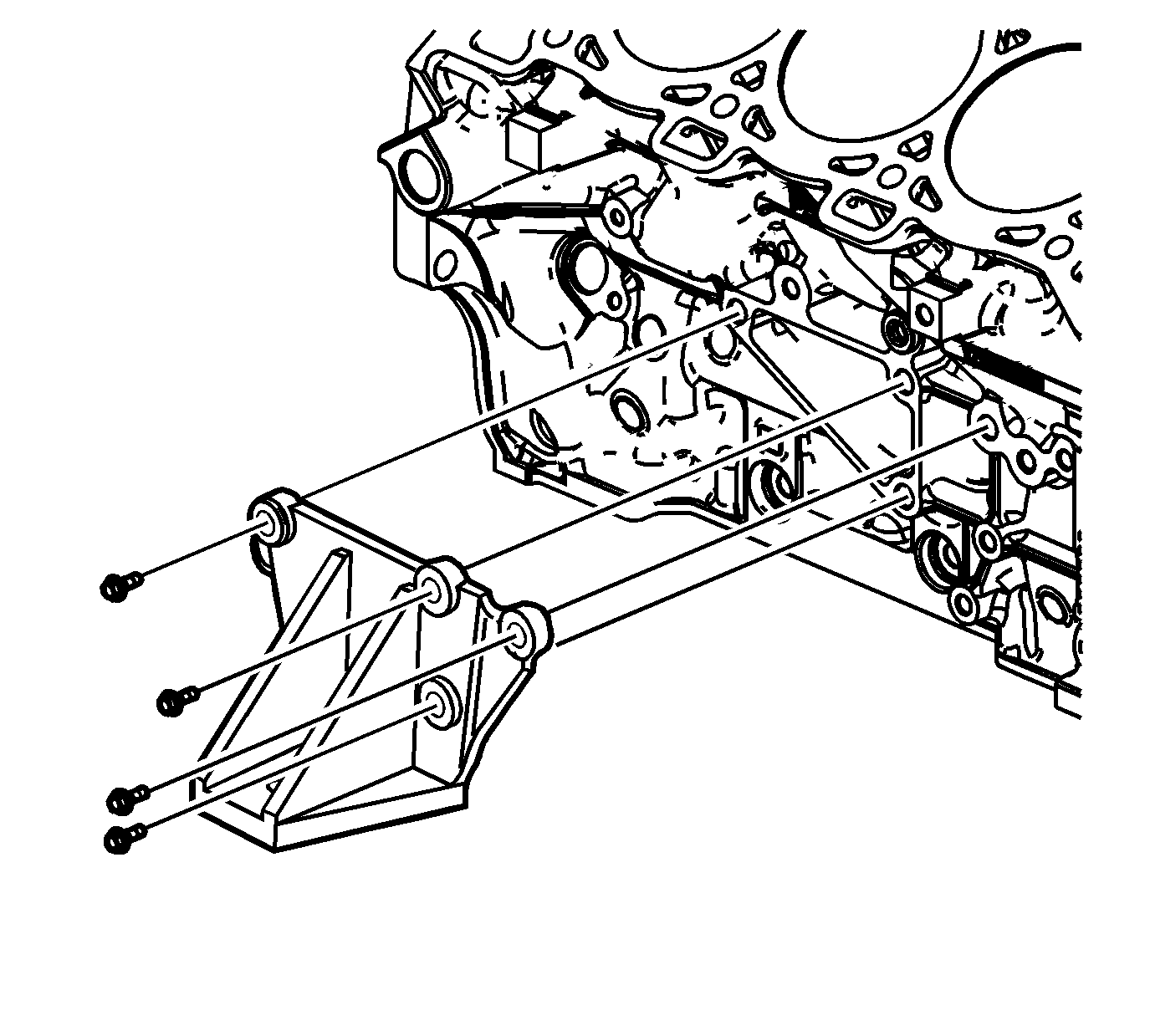

    15. Fig 9: View of Engine Mount Bracket Assembly
    GM1966957Courtesy of GENERAL MOTORS CORP.
  15. Remove the engine mount bracket bolts (1, 2).
  16. Remove the engine mount bracket.
    17. Fig 10: View of Oil Jet Assembly
    GM1866877Courtesy of GENERAL MOTORS CORP.
  17. Remove the oil jet bolts.
  18. Remove the oil jets.
    19. Fig 11: Identifying Right Front Oil Pan Rail Oil Gallery Expansion Plug
    GM902732Courtesy of GENERAL MOTORS CORP.
  19. Remove the right front oil pan rail oil gallery expansion plug.
    20. Fig 12: View of Cylinder Block-To-Oil Pan Alignment Dowels
    GM902740Courtesy of GENERAL MOTORS CORP.
  20. Remove the cylinder block-to-oil pan alignment dowels.
    21. Fig 13: Identifying M14 Right Side Oil Gallery Threaded Plug
    GM1327922Courtesy of GENERAL MOTORS CORP.
  21. Remove the M14 right side oil gallery threaded plug.
    22. Fig 14: Identifying M14 Right Side Coolant Drain Threaded Plug
    GM1327923Courtesy of GENERAL MOTORS CORP.
  22. Remove the M14 right side coolant drain threaded plug.
    23. Fig 15: View of M14 Rear Oil Gallery Threaded Plug
    GM1327924Courtesy of GENERAL MOTORS CORP.
  23. Remove the M14 rear oil gallery threaded plug.
    24. Fig 16: View Of M14 Left Side Coolant Drain Threaded Plug
    GM1327925Courtesy of GENERAL MOTORS CORP.
  24. Remove the M14 left side coolant drain threaded plug.
    25. Fig 17: Identifying M20 Left Side Oil Gallery Threaded Plug
    GM1327926Courtesy of GENERAL MOTORS CORP.
  25. Remove the M20 left side oil gallery threaded plug.
    26. Fig 18: Identifying Coolant Expansion Plugs
    GM902733Courtesy of GENERAL MOTORS CORP.
  26. Remove the coolant expansion plugs.
    27. Fig 19: Identifying Cylinder Block-To-Transmission Alignment Dowels
    GM902737Courtesy of GENERAL MOTORS CORP.
  27. Remove the cylinder block-to-transmission alignment dowels.
    28. Fig 20: Identifying Front Oil Gallery Expansion Plug
    GM902730Courtesy of GENERAL MOTORS CORP.
  28. Remove the front oil gallery expansion plug.
    29. Fig 21: Identifying Cylinder Block-To-Cylinder Head Alignment Dowels
    GM902736Courtesy of GENERAL MOTORS CORP.
  29. Remove the cylinder block-to-cylinder head alignment dowels.
