Backup Lamp Switch Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

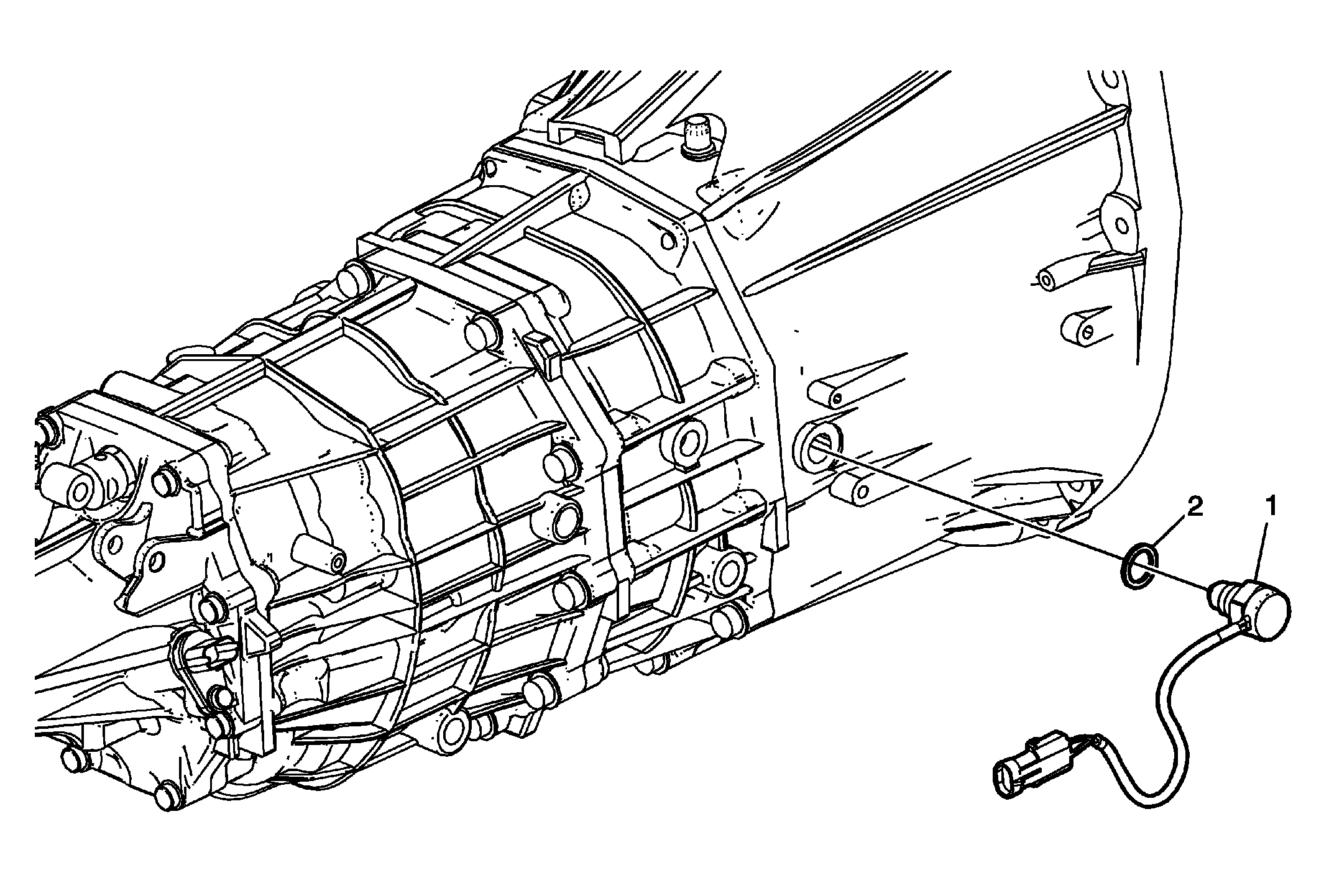

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Backup Lamp Switch
NOTE:
Refer to Component Fastener Tightening Notice
. Procedure: Disconnect the electrical wire harness from the backup lamp switch. Tighten: 44 N.m (32 lb ft) |
| 2 | Backup Lamp Switch Washer Tip: Use a NEW backup lamp switch washer. |
