Rear Case Disassemble

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

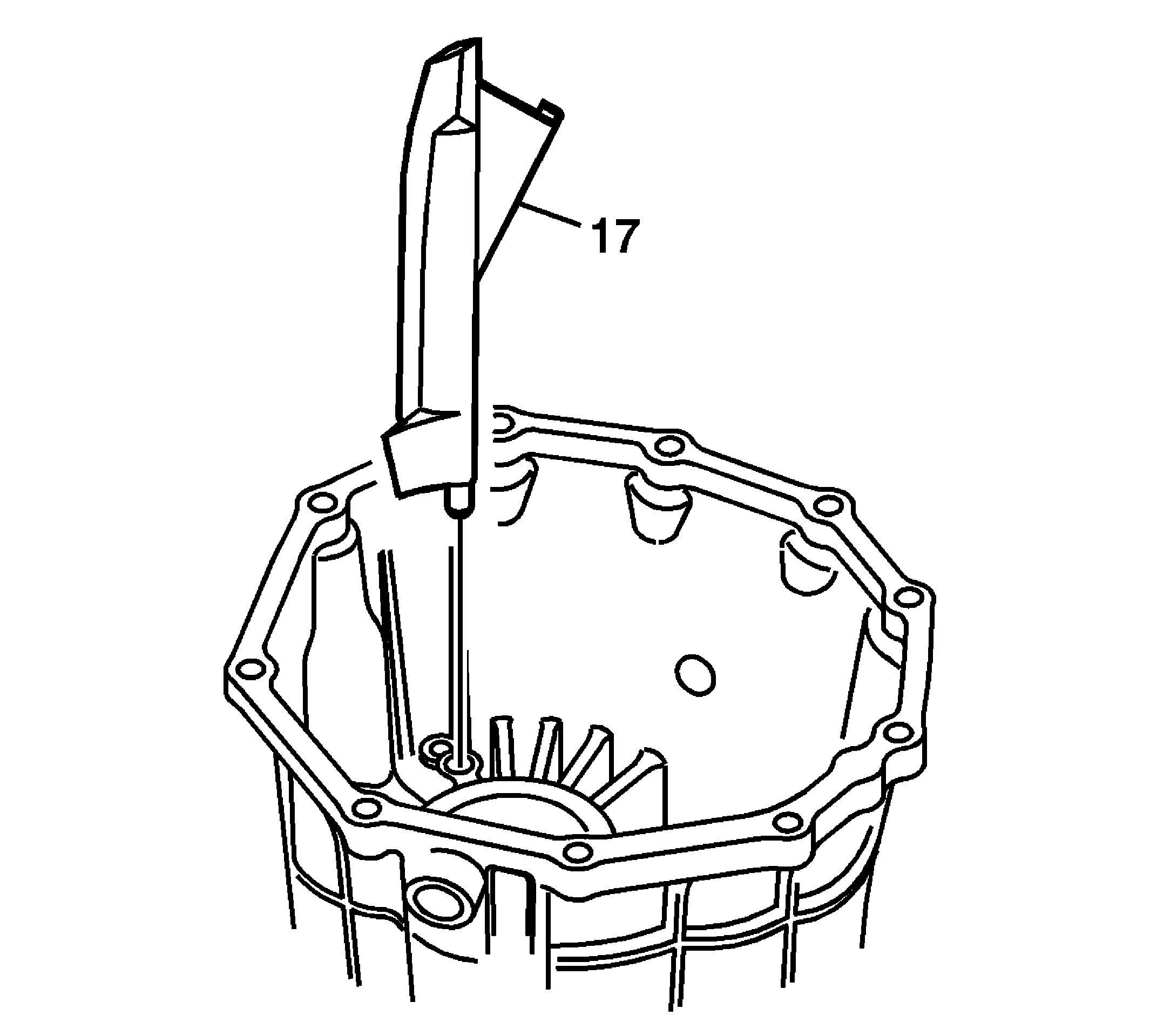

Fig 1: View Of Oil Trough

Courtesy of GENERAL MOTORS CORP.

Remove the oil trough (17).

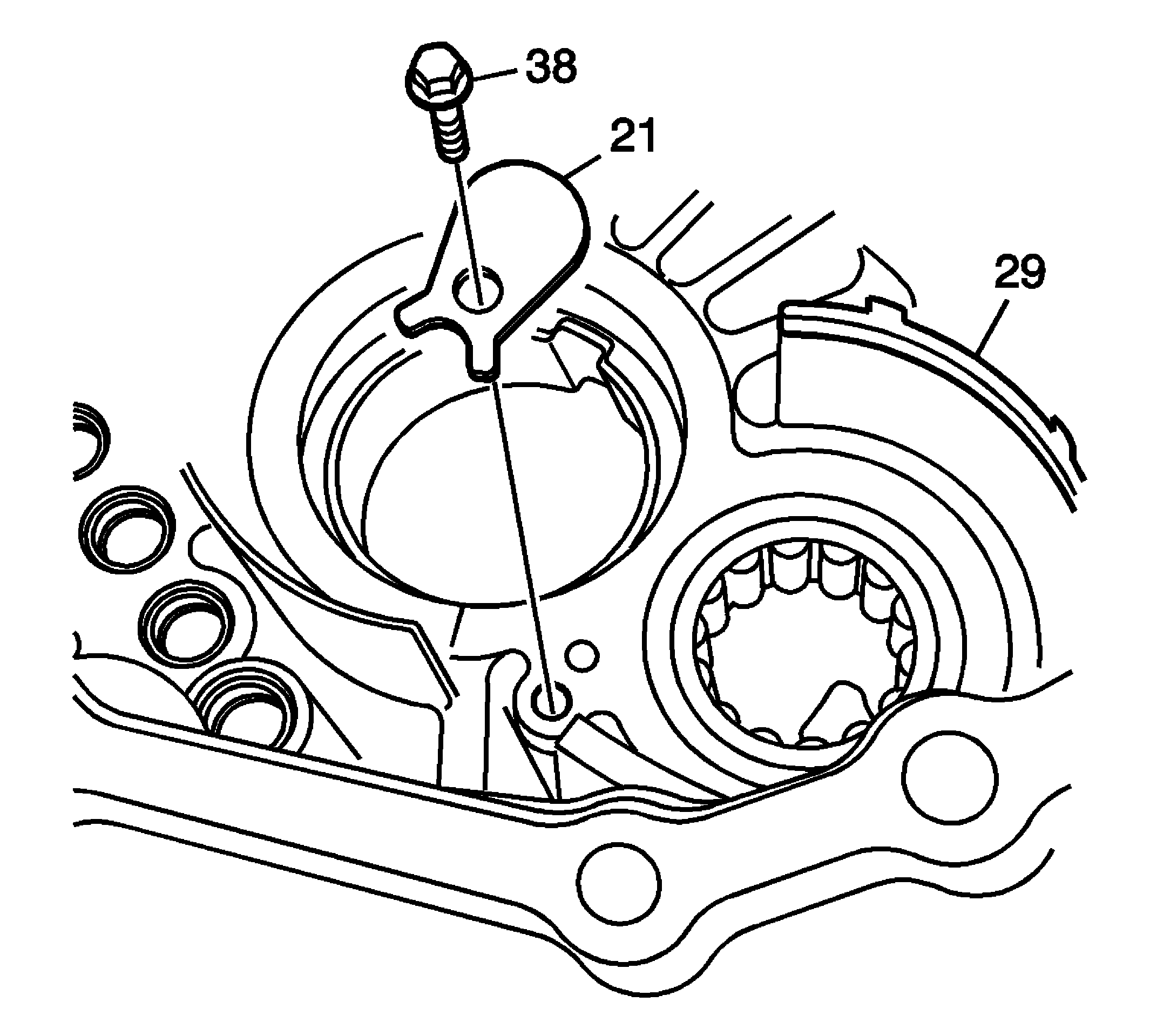

Fig 2: View Of Bearing Retainer, Bolt & Gasket

Courtesy of GENERAL MOTORS CORP.

Remove the bolt (38) and retainer (21).
Remove the gasket (29).

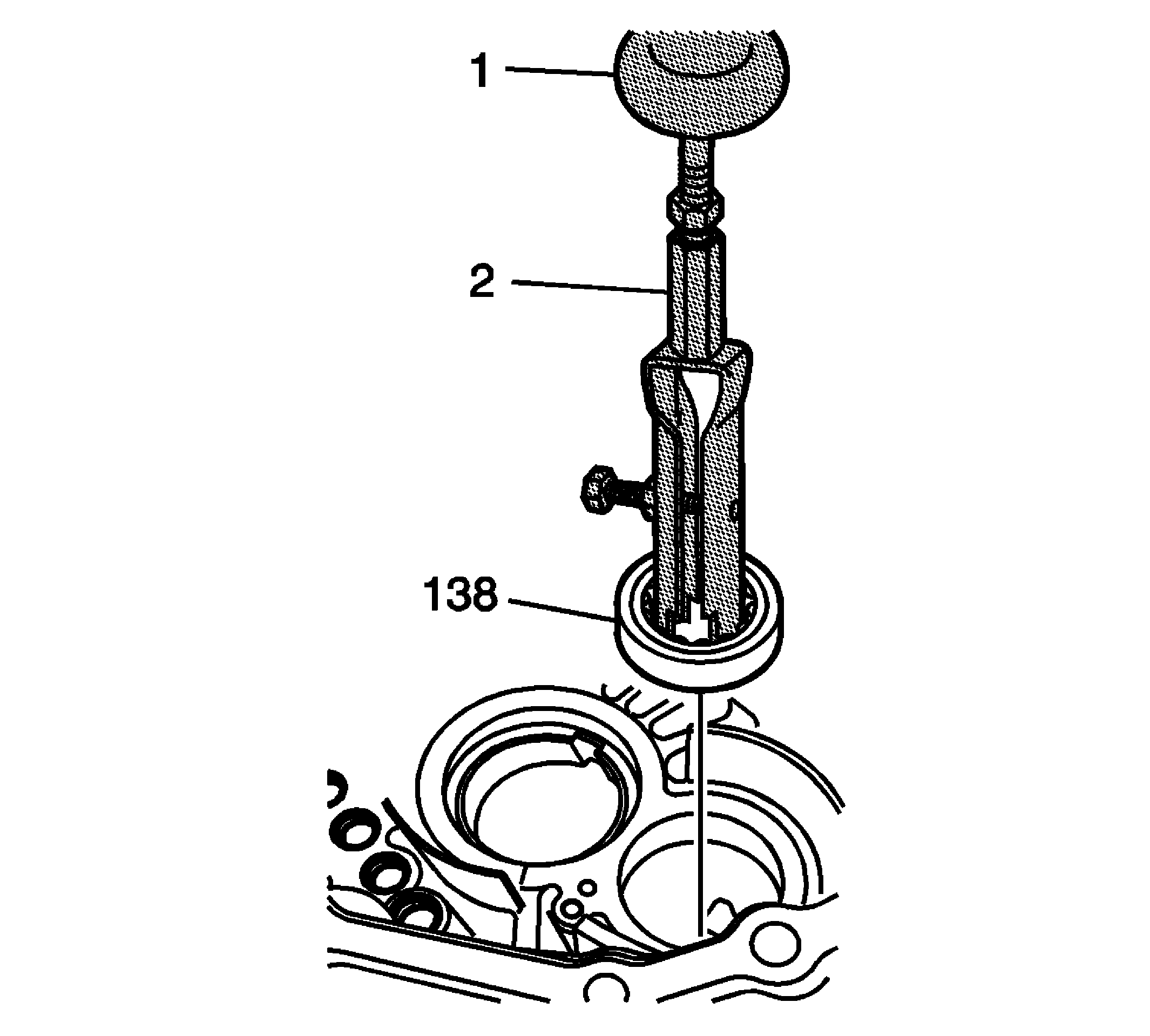

Fig 3: Removing Counter Gear Roller Bearing

Courtesy of GENERAL MOTORS CORP.

Using J 26941 (2) and J 2619-01 (1), remove the counter gear roller bearing (138).

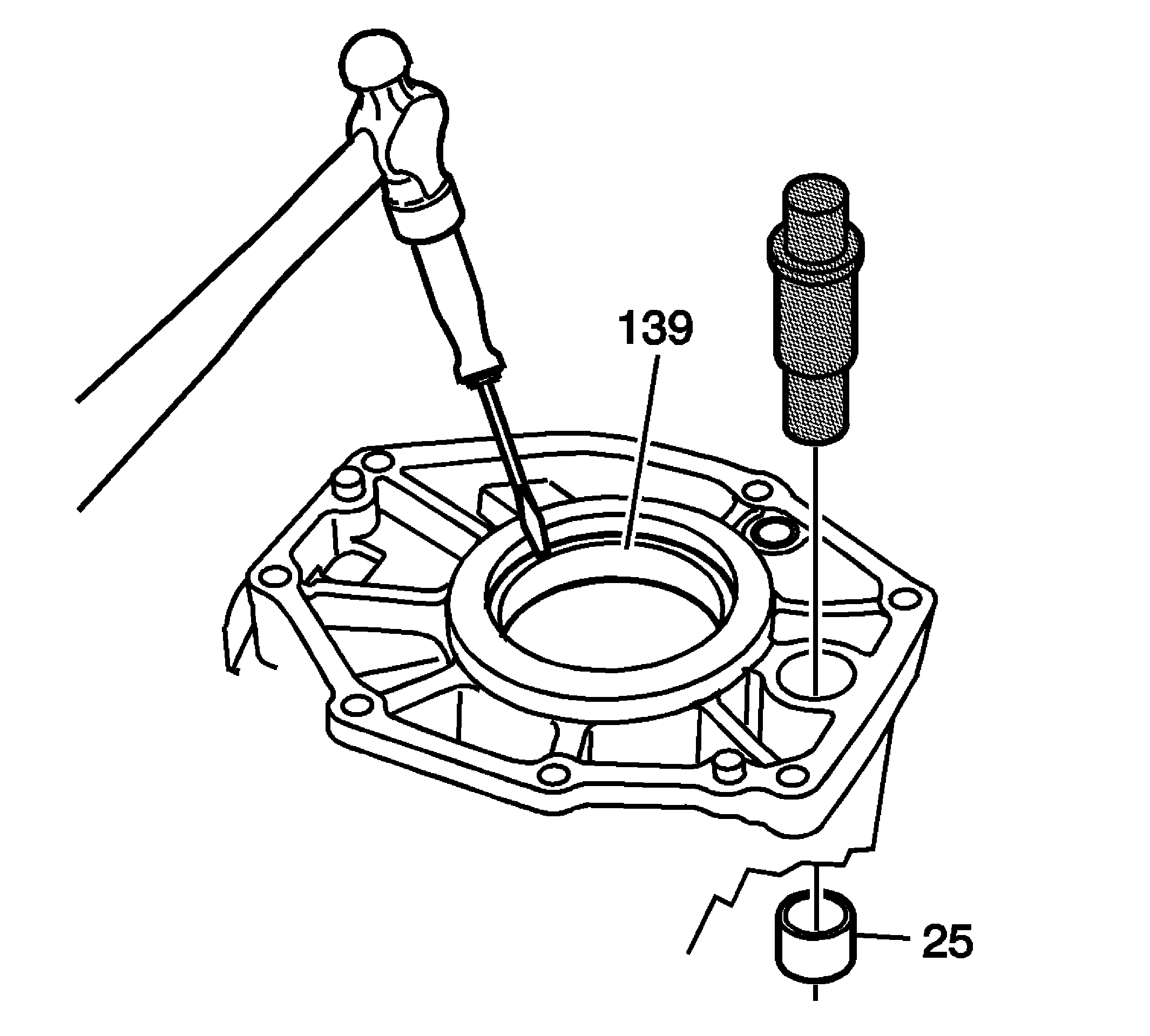

Fig 4: DT-47722 And Shift Shaft Bearing

Courtesy of GENERAL MOTORS CORP.

Using DT-47722 , remove the shift shaft bearing (25) from the case. See Special Tools .
Remove the output shaft bearing race (139).
