Middle Case Disassemble

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

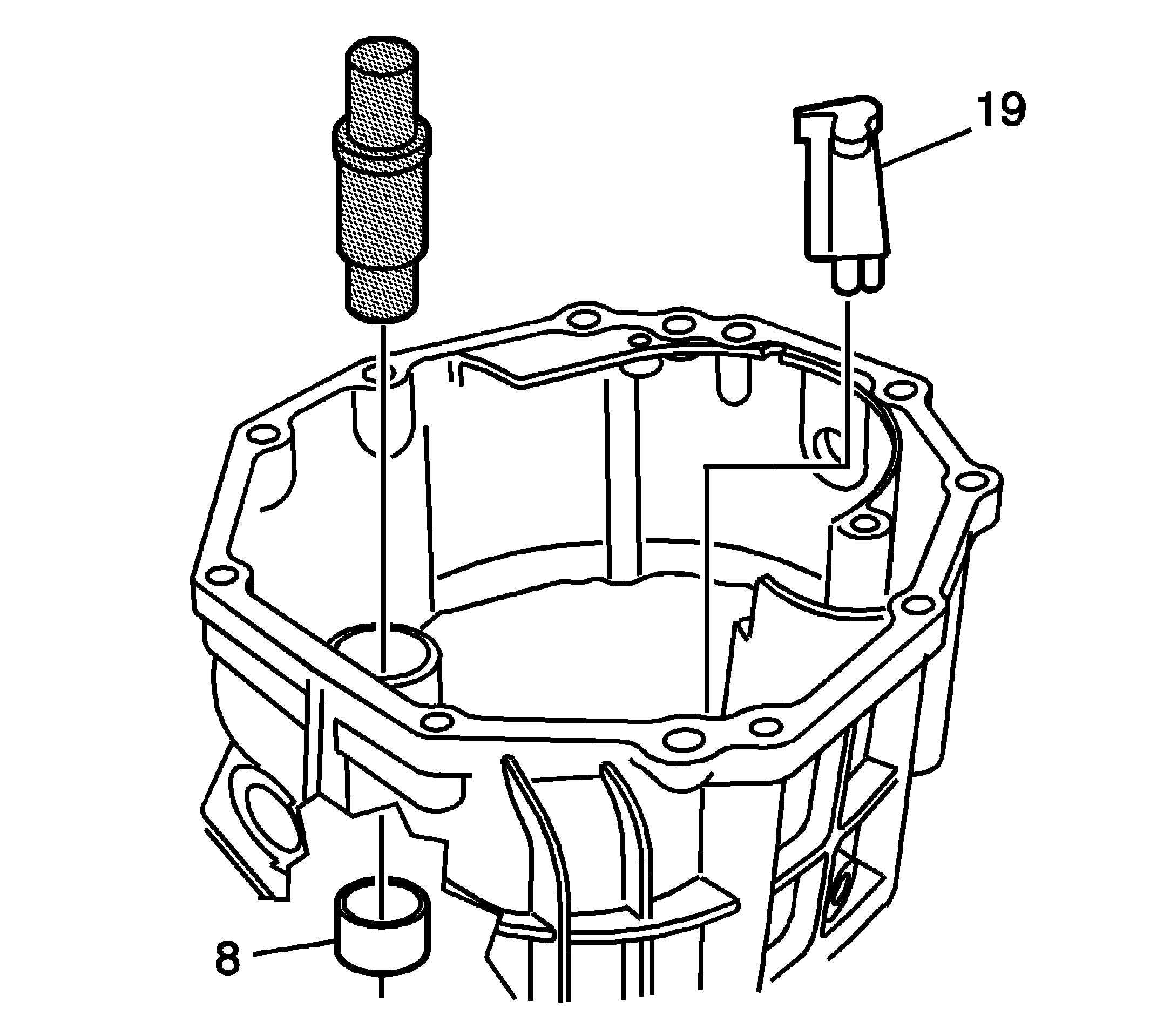

Fig 1: DT-47722 & Shift Shaft Bearing

Courtesy of GENERAL MOTORS CORP.

Using DT-47722 , remove the shift shaft bearing (8) from the middle case. See Special Tools .
Remove the oil trough (19) from the middle case.
