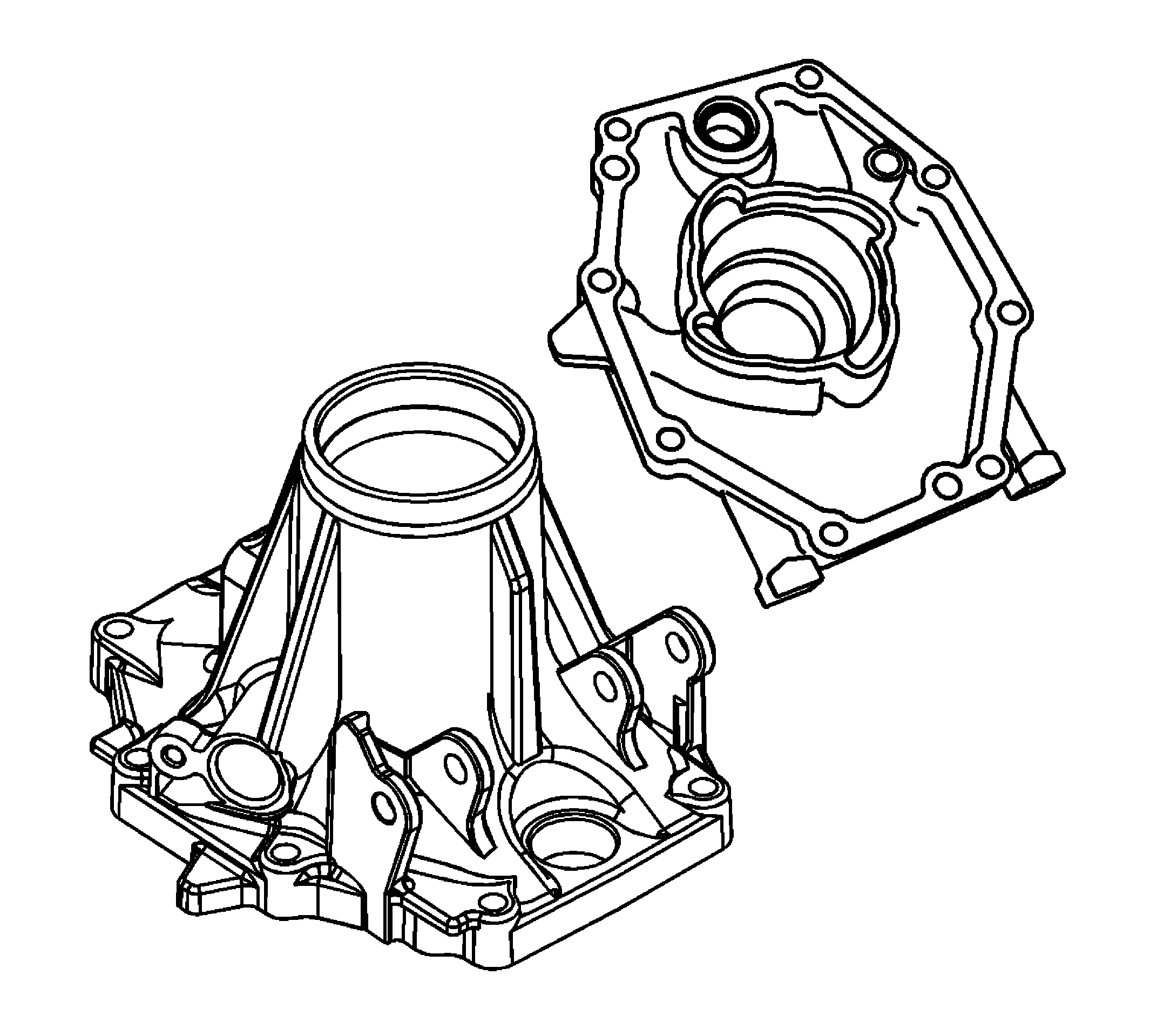

Extension Housing
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the extension housing in a suitable cleaning solvent and air dry.
- Remove the sealer from the extension sealing surfaces.
- Inspect the sealing surfaces for damage.
- Inspect the extension for being broken or cracked.
- Inspect the oil seal for wear or damage. The oil seal is serviced only with the extension housing.
- Inspect the bearing bore.
- Replace the extension if any of the above conditions are found.
- Inspect the case threaded bolt holes for damage.
- Repair any damaged threads.
- Repair or replace any damaged location pins.
NOTE:
Refer to Machined Surface Damage Notice
.
