Middle Case Assemble

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

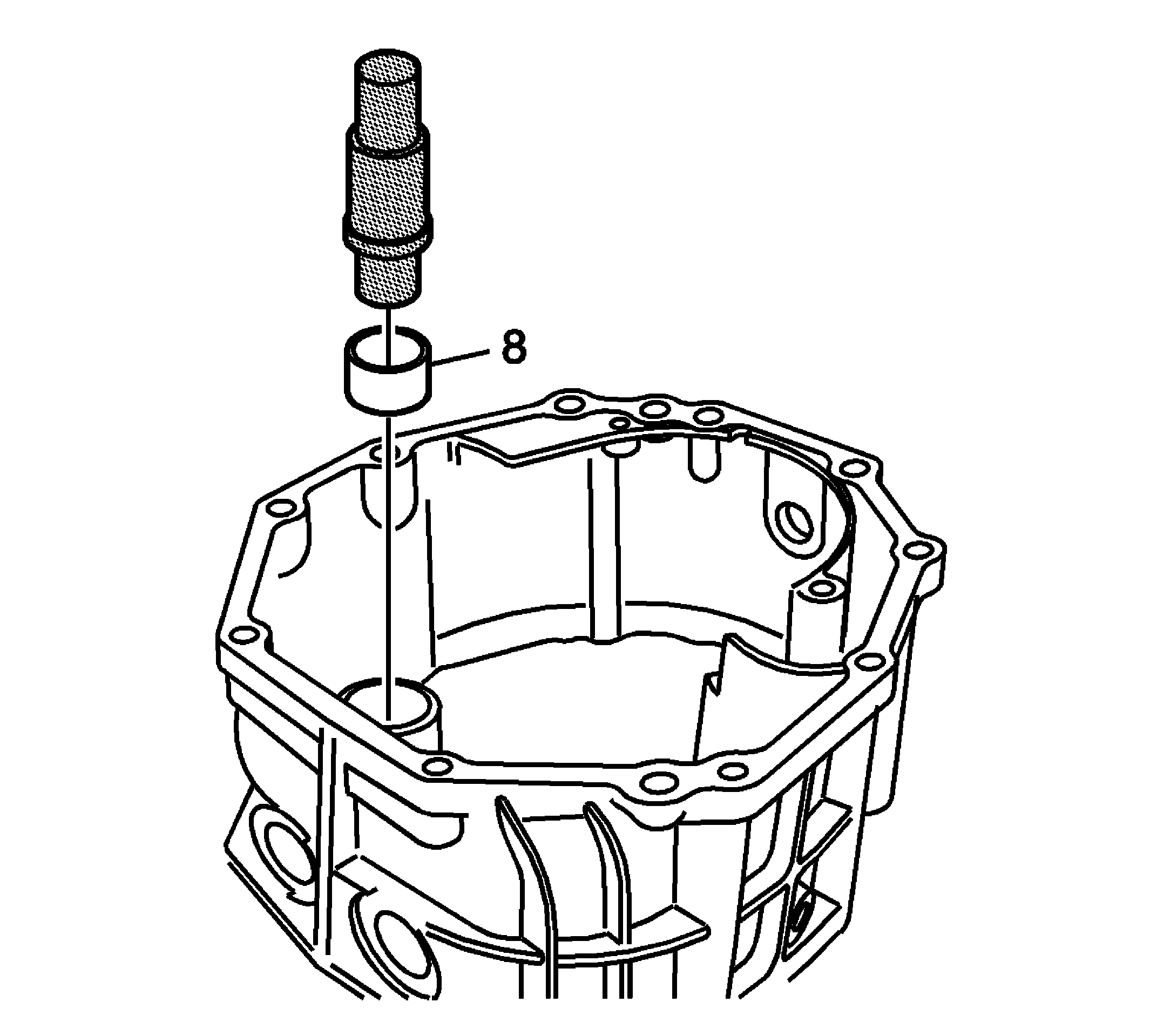

Fig 1: Installing Bearing Into Middle Case

Courtesy of GENERAL MOTORS CORP.

Using DT-47722 , install the bearing (8) in the middle case. See Special Tools .
