Tools Required

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

DT-47723  Output Shaft Bearing Installer. See Special Tools .

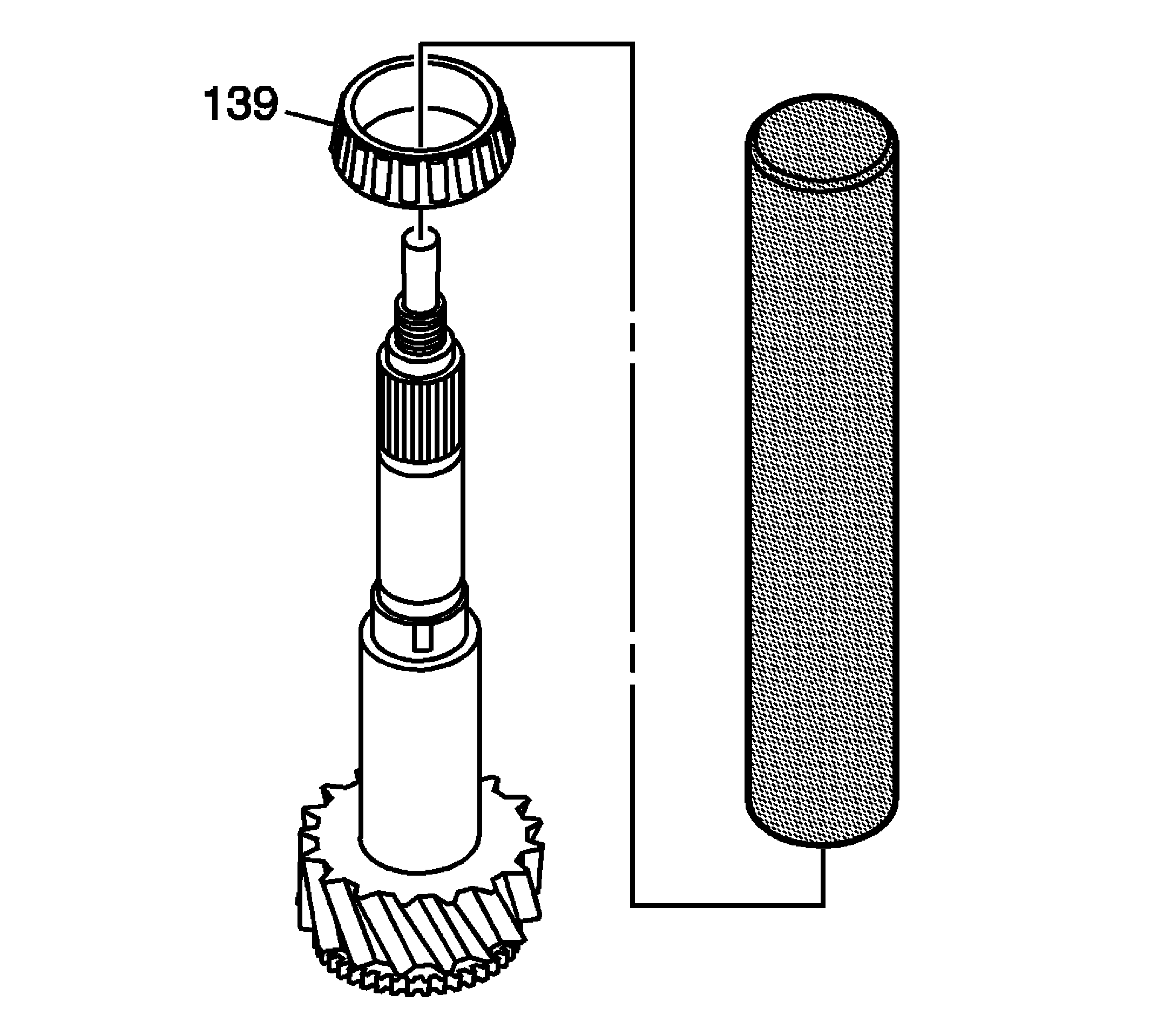

Fig 1: Installing Output Shaft Bearing
GM1485744Courtesy of GENERAL MOTORS CORP.

Using DT-47723  , install the output shaft bearing (139). See Special Tools .
