Extension Disassemble: Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

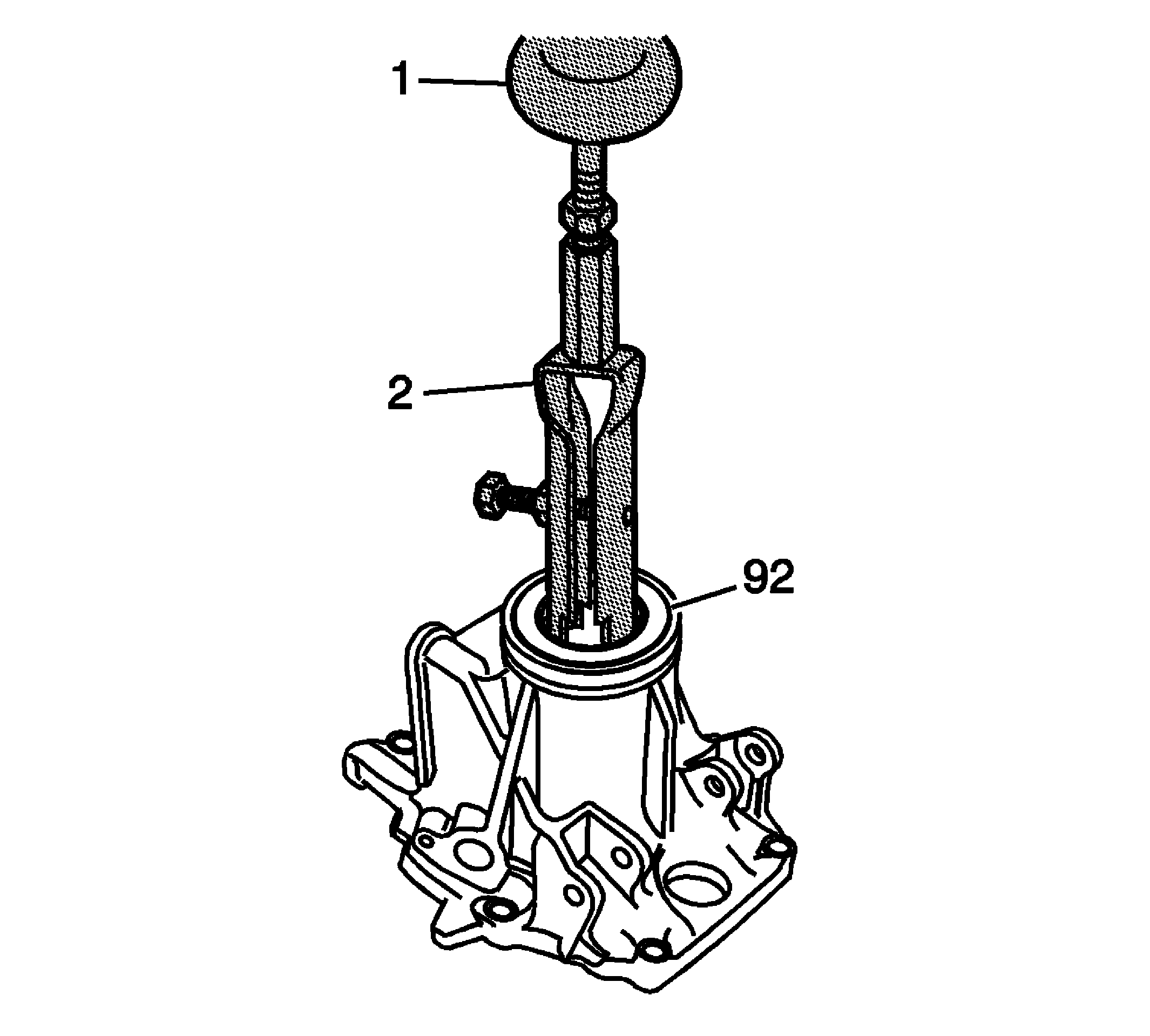

Fig 1: Removing Rear Output Shaft Seal

Courtesy of GENERAL MOTORS CORP.

Using J 2619-01 (1) and J 26941 (2), remove the rear output shaft seal (92). See Special Tools .

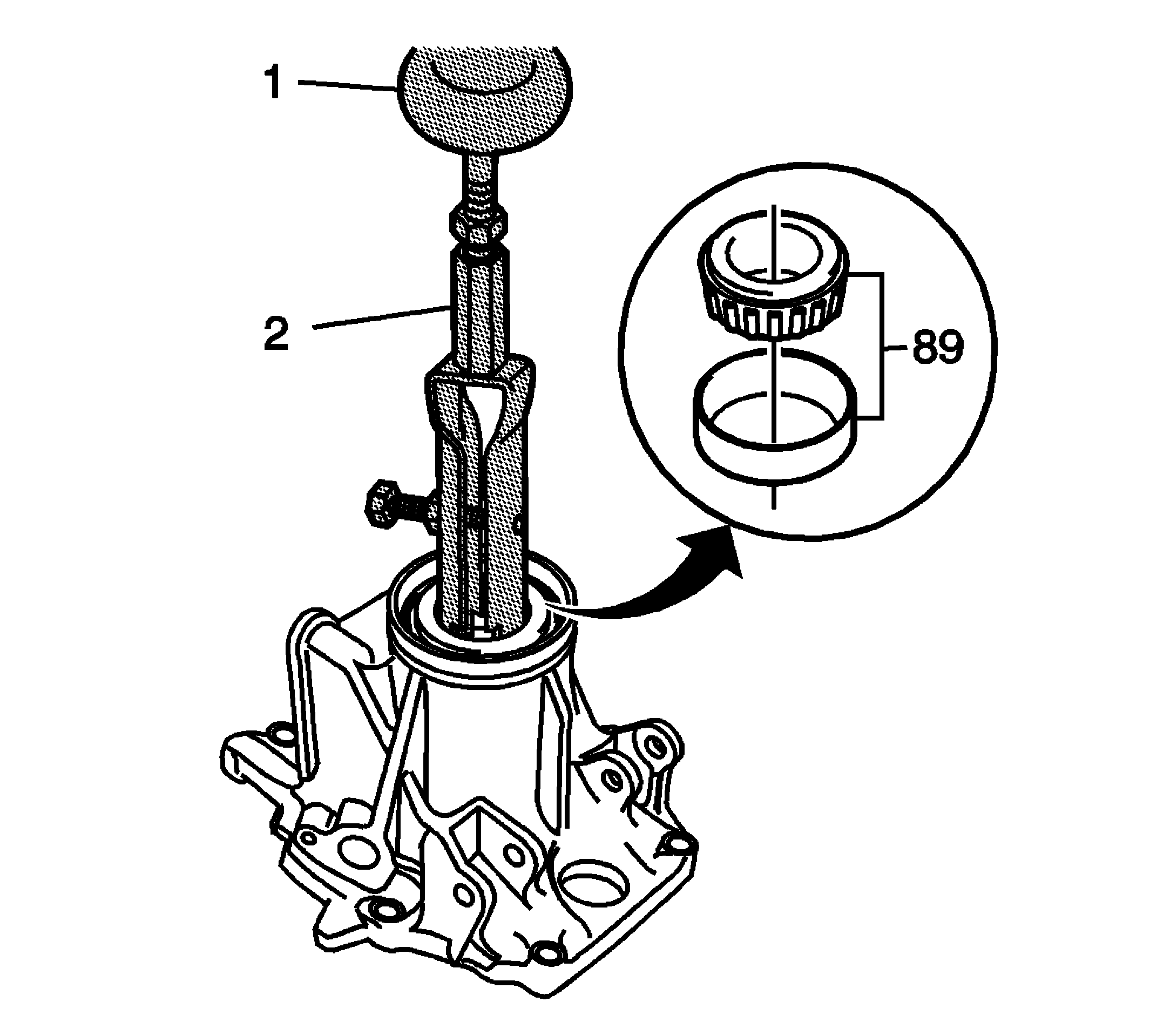

Fig 2: Removing Rear Output Shaft Bearing Assembly

Courtesy of GENERAL MOTORS CORP.

Using J 2619-01 (1) and J 26941 (2), remove the rear output shaft bearing assembly (89). See Special Tools .

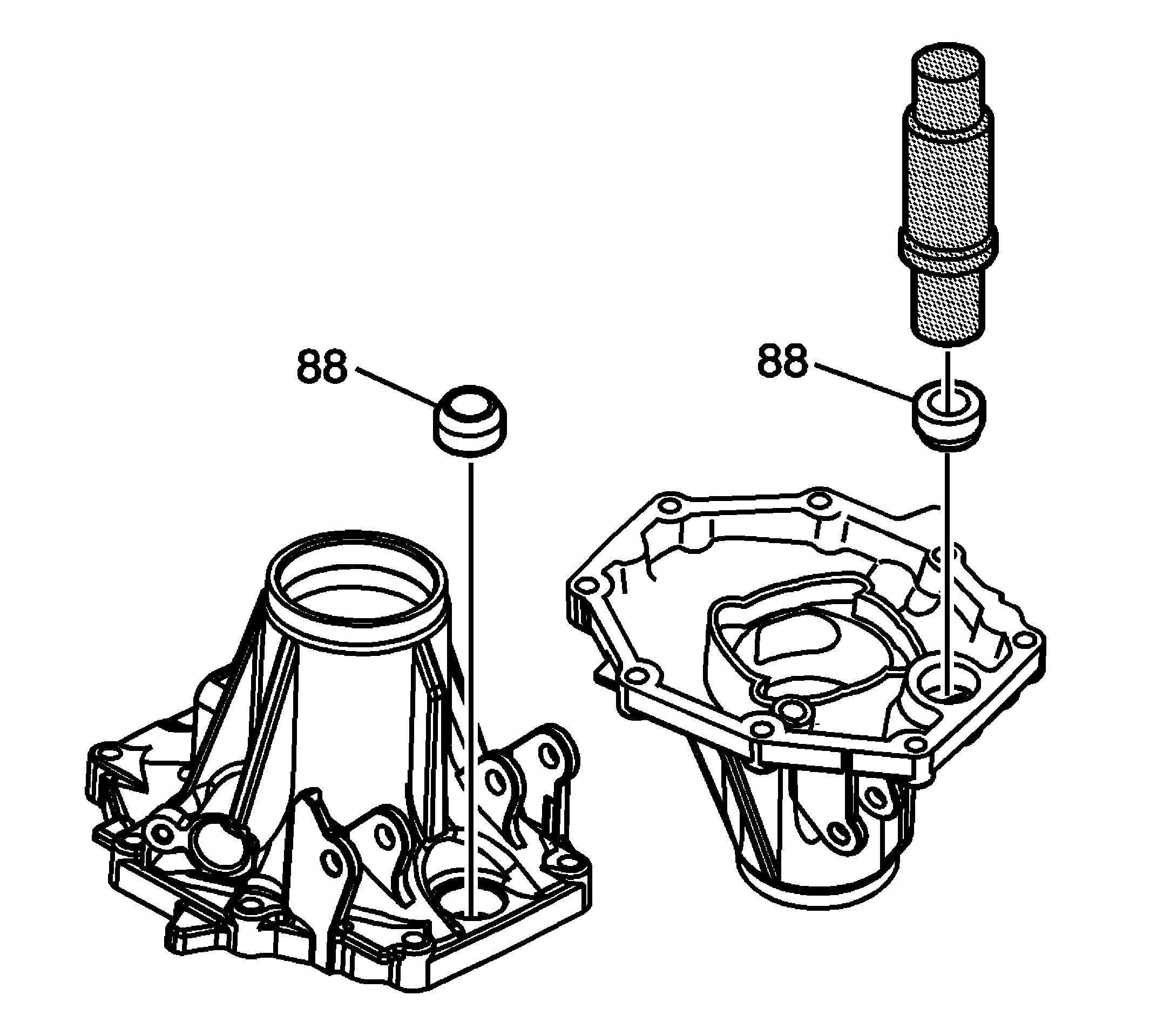

Fig 3: Identifying Shift Shaft Seal

Courtesy of GENERAL MOTORS CORP.

Using tool DT-47722 , remove the shift shaft seal (88). See Special Tools .
