Extension Assemble: Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

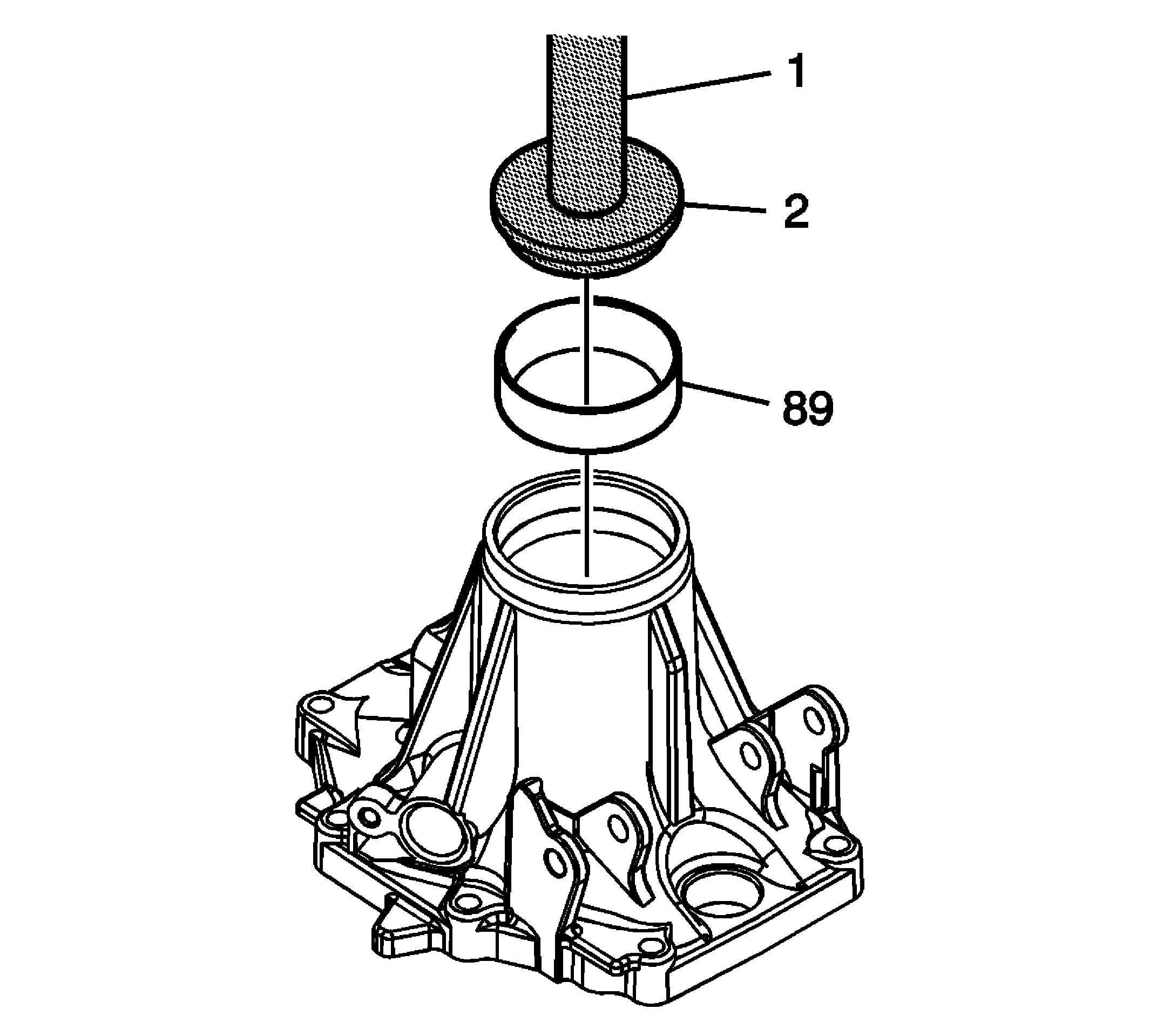

Fig 1: DT-47724, J 36614 and Tapered Bearing Race

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Ensure that the extension housing installation surfaces are clean.

Using DT-47724 (2) and J 36614 (1), install the tapered bearing race (89). See Special Tools .

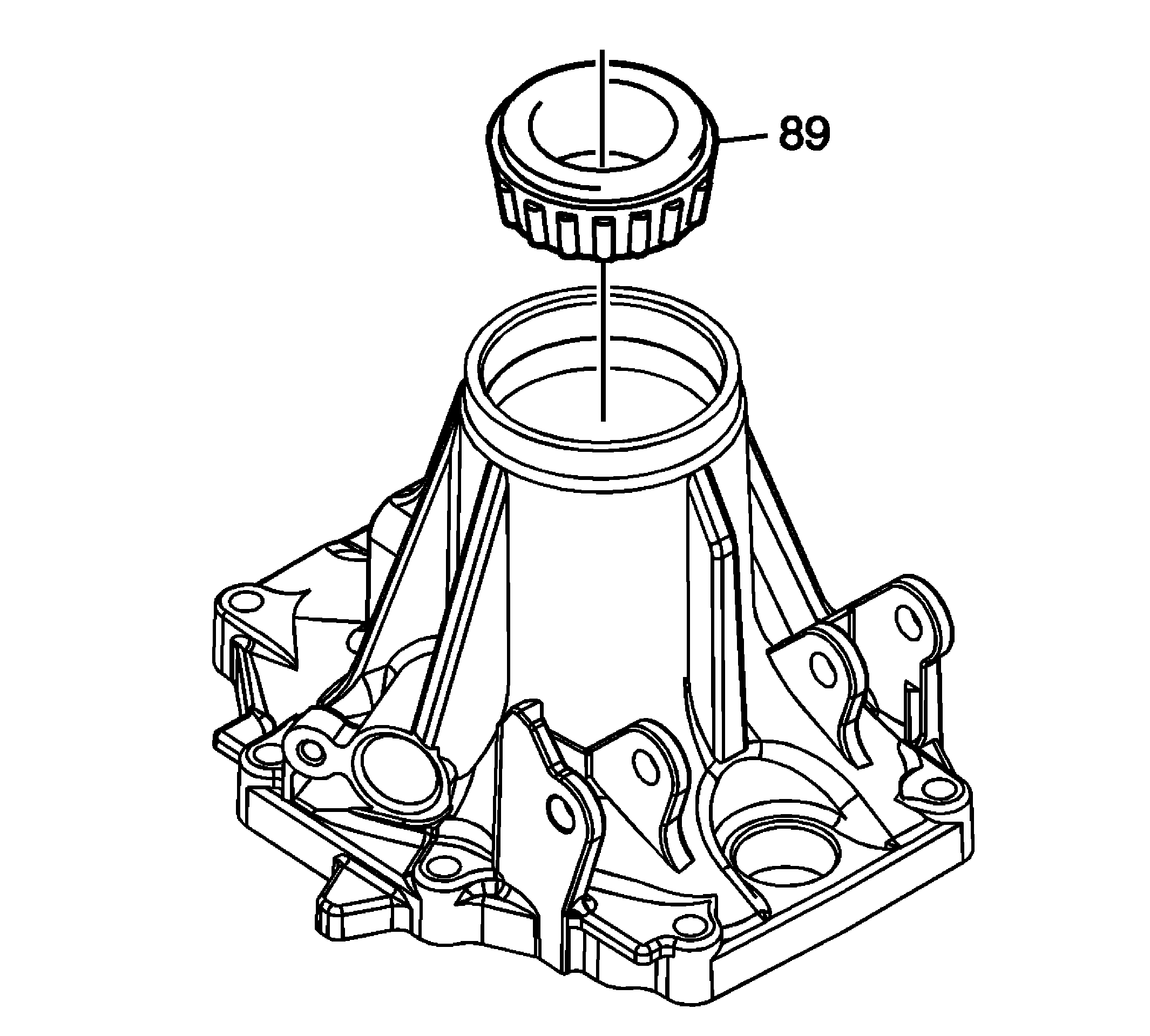

Fig 2: Identifying Tapered Roller Bearing

Courtesy of GENERAL MOTORS CORP.

Apply gear oil and install the tapered roller bearing (89).

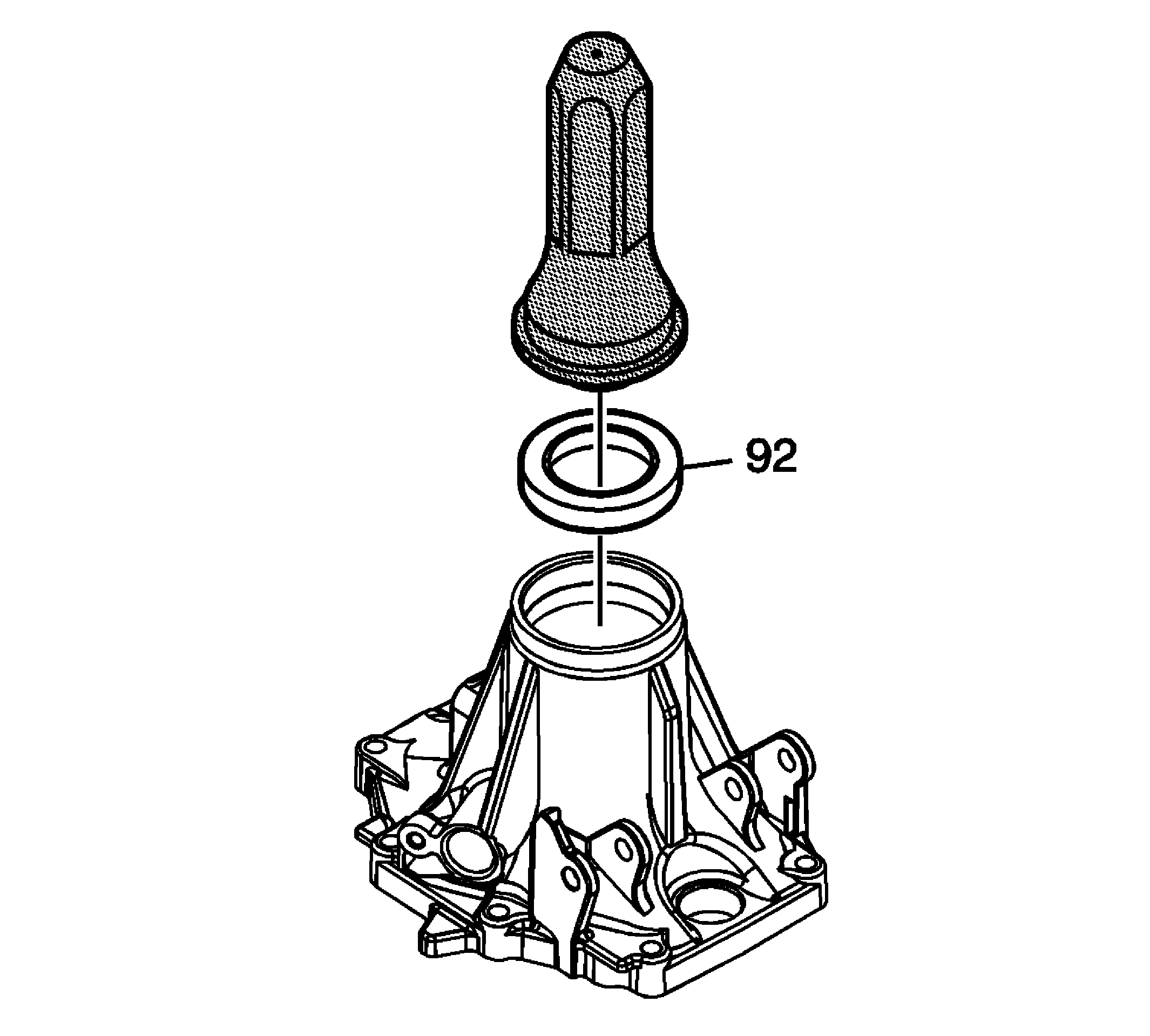

Fig 3: View Of Output Shaft Oil Seal

Courtesy of GENERAL MOTORS CORP.

Using J 44765 , install a NEW rear output shaft oil seal (92). See Special Tools .

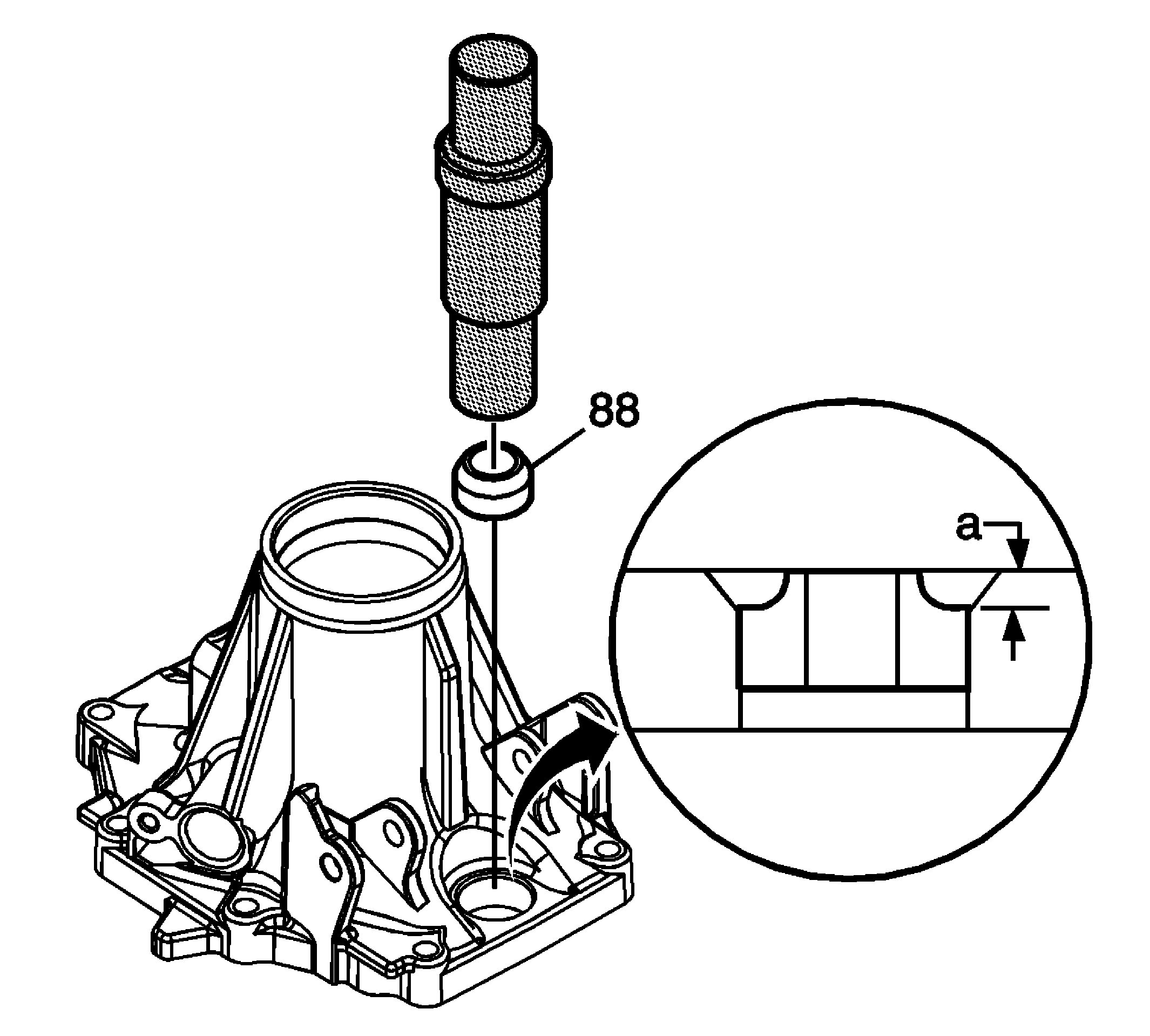

Fig 4: View of DT-47722 and Shift Shaft Seal

Courtesy of GENERAL MOTORS CORP.

Using DT-47722 , install a NEW shift shaft seal (88) to the specified depth (a). See Special Tools .
Depth: Drive the shift shaft seal to a depth of 4.6-5.4 mm below the surface of the extension housing.
