Manual Transmission Component Views

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

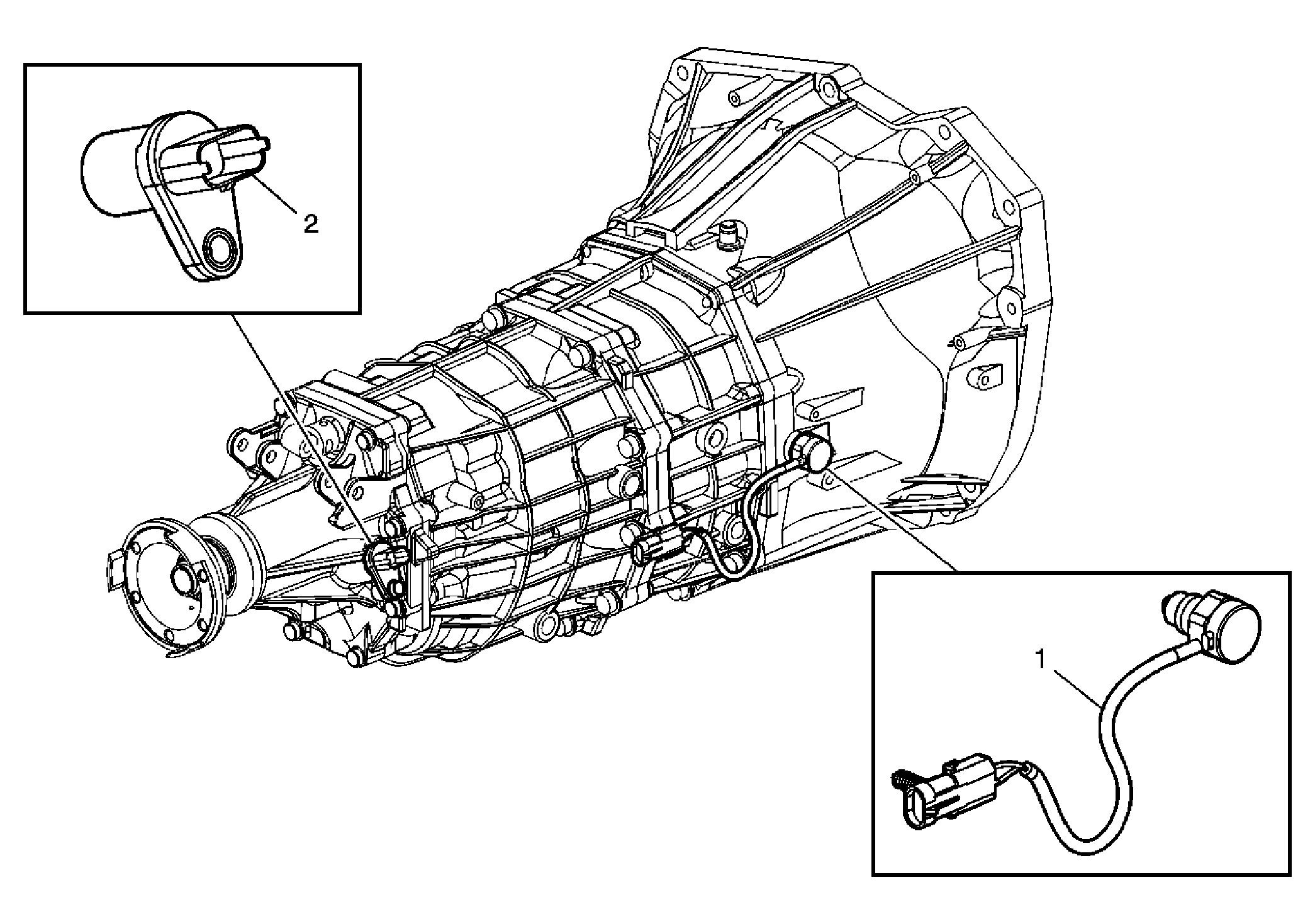

Fig 1: Electronic Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamp Switch Assembly
2	Output Sensor
