Removal Procedures

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Tool EN 46106
    GM945978Courtesy of GENERAL MOTORS CORP.
  1. Install the EN 46106  through the starter mounting hole. See Special Tools .

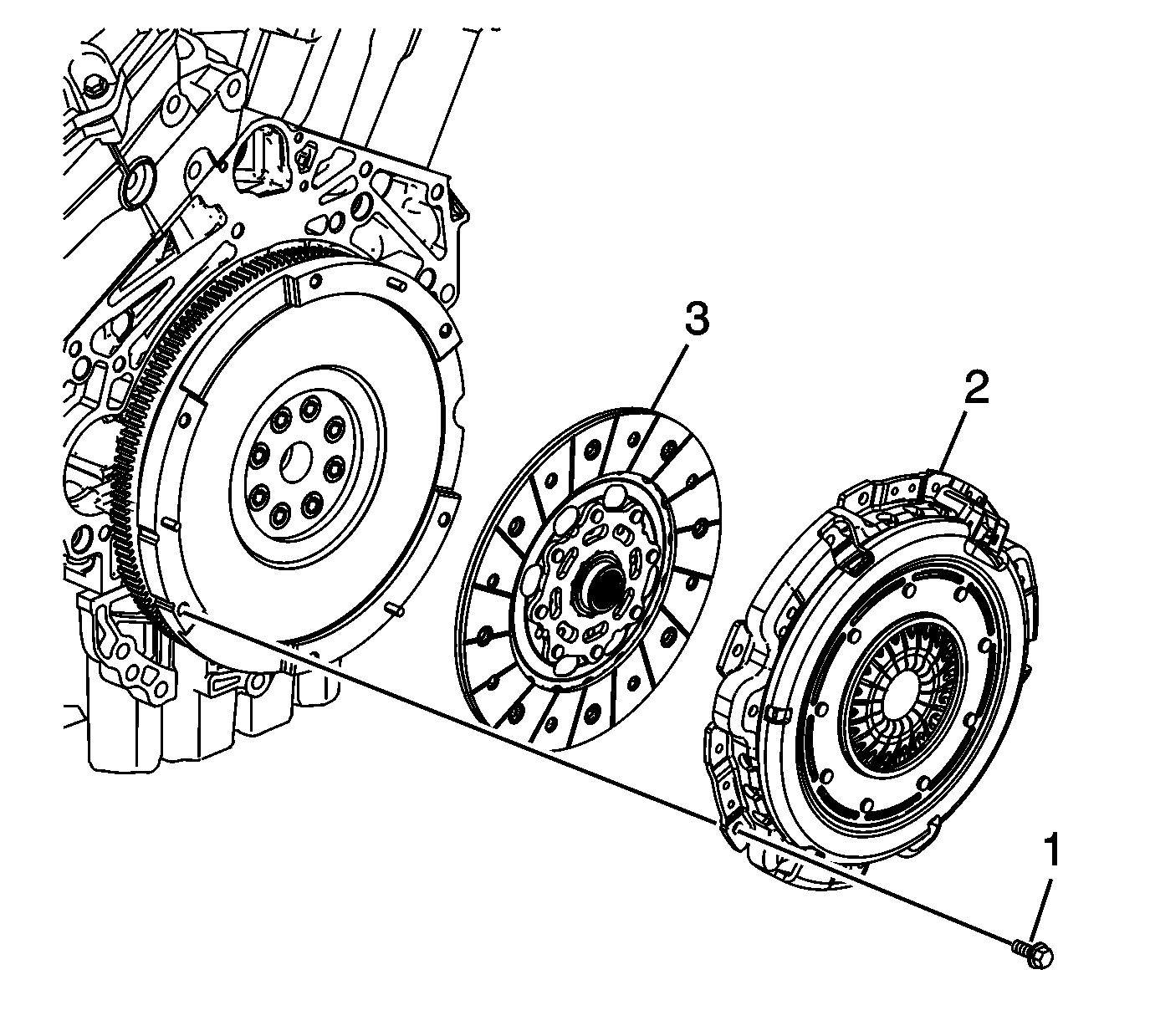

    2. Fig 2: View of Clutch Pressure Plate Assembly
    GM1888113Courtesy of GENERAL MOTORS CORP.
  2. Remove the clutch pressure plate bolts.
  3. Remove the clutch pressure plate and the clutch driven plate disc.

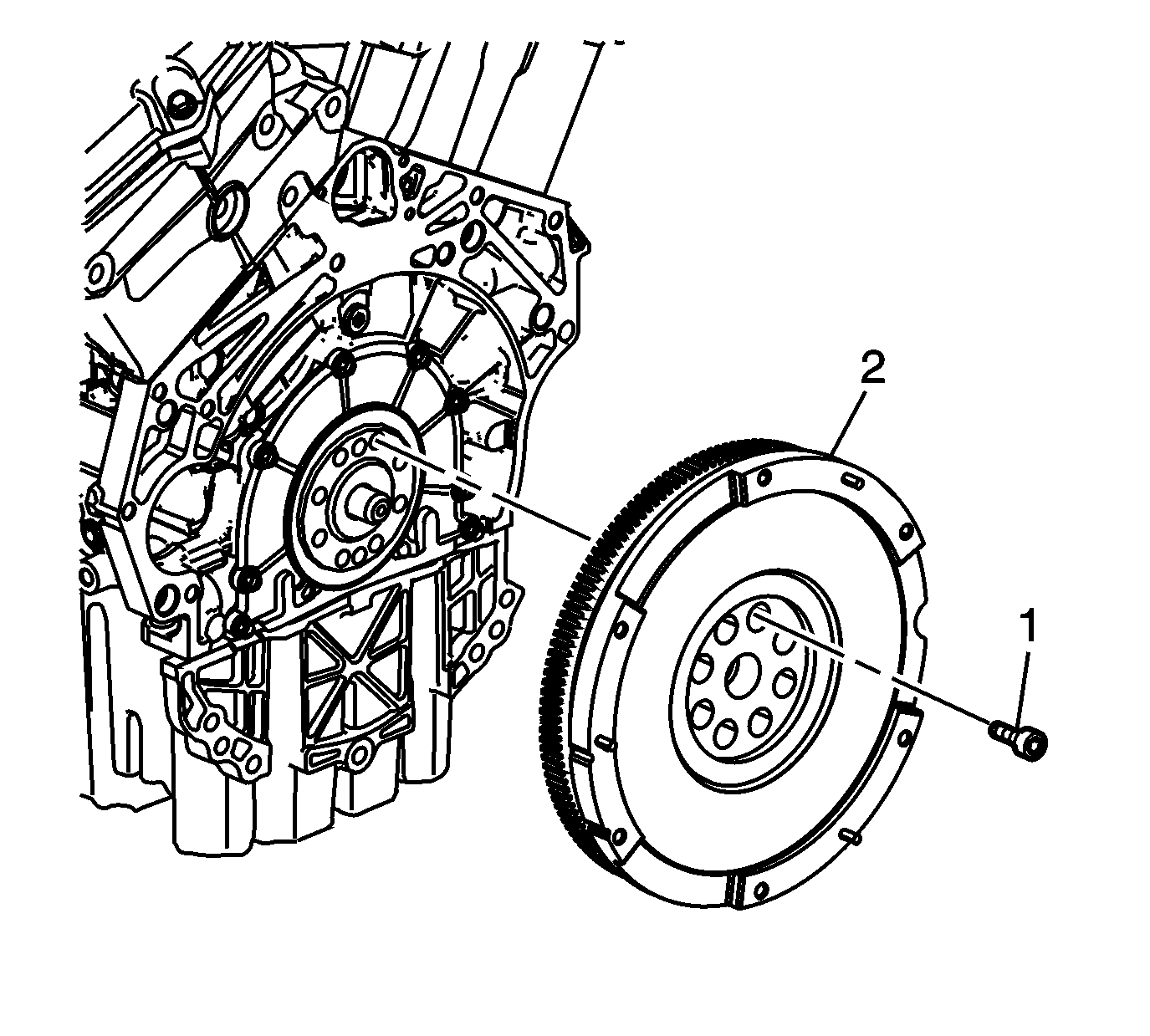

    4. Fig 3: View Of Flywheel & Bolts
    GM1506438Courtesy of GENERAL MOTORS CORP.
  4. Remove the engine flywheel bolts and discard.
  5. Remove the engine flywheel from the crankshaft.
    6. Fig 4: View Of Tool EN 46106
    GM945978Courtesy of GENERAL MOTORS CORP.
  6. Remove the EN 46106  . See Special Tools .
