Removal Procedures

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Tool EN 46106
    GM945978Courtesy of GENERAL MOTORS CORP.
  1. Install the EN 46106  through the starter mounting hole. See Special Tools .

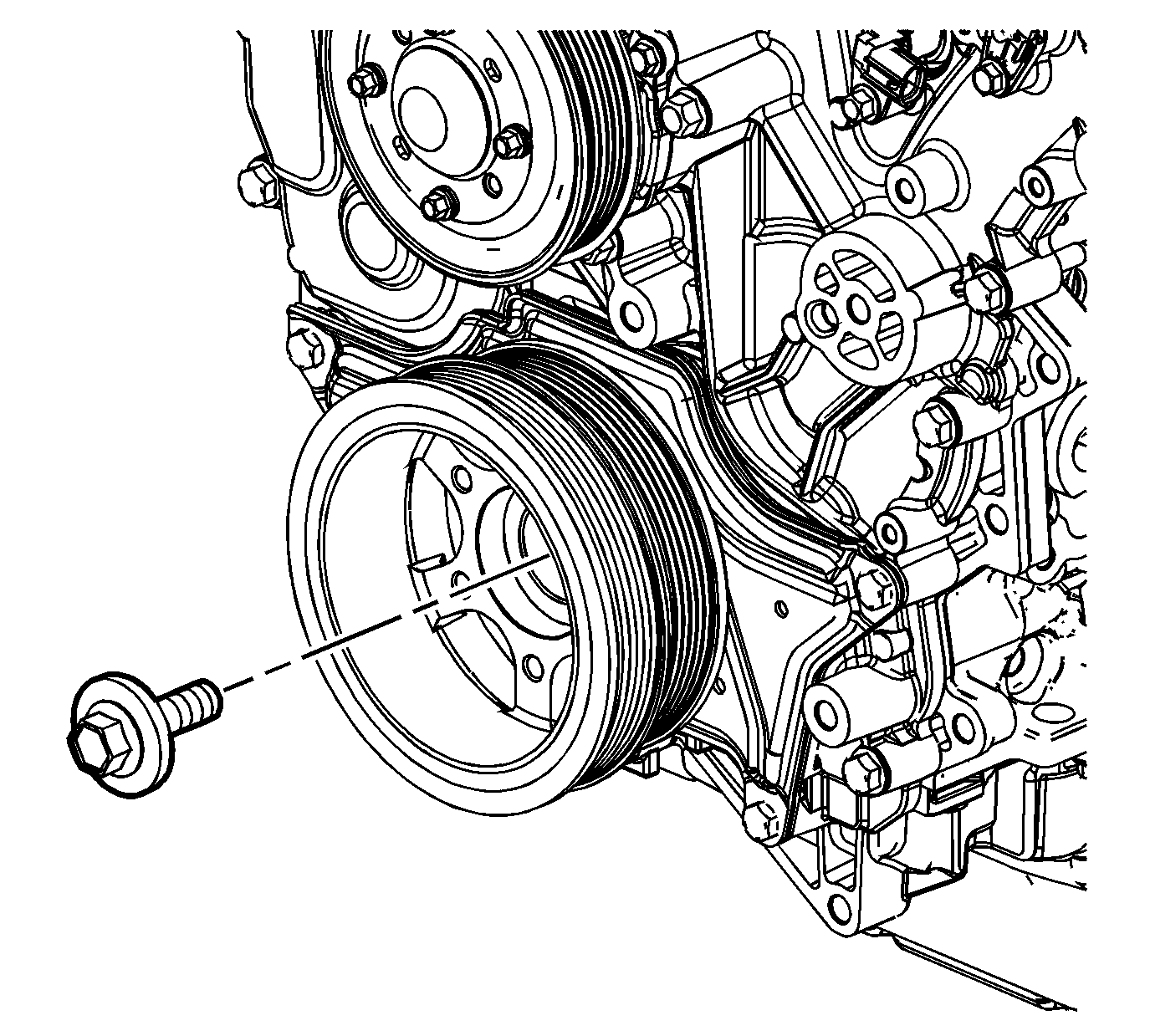

    2. Fig 2: View of Crankshaft Balancer and Bolt
    GM1871061Courtesy of GENERAL MOTORS CORP.
  2. Remove the crankshaft balancer bolt.

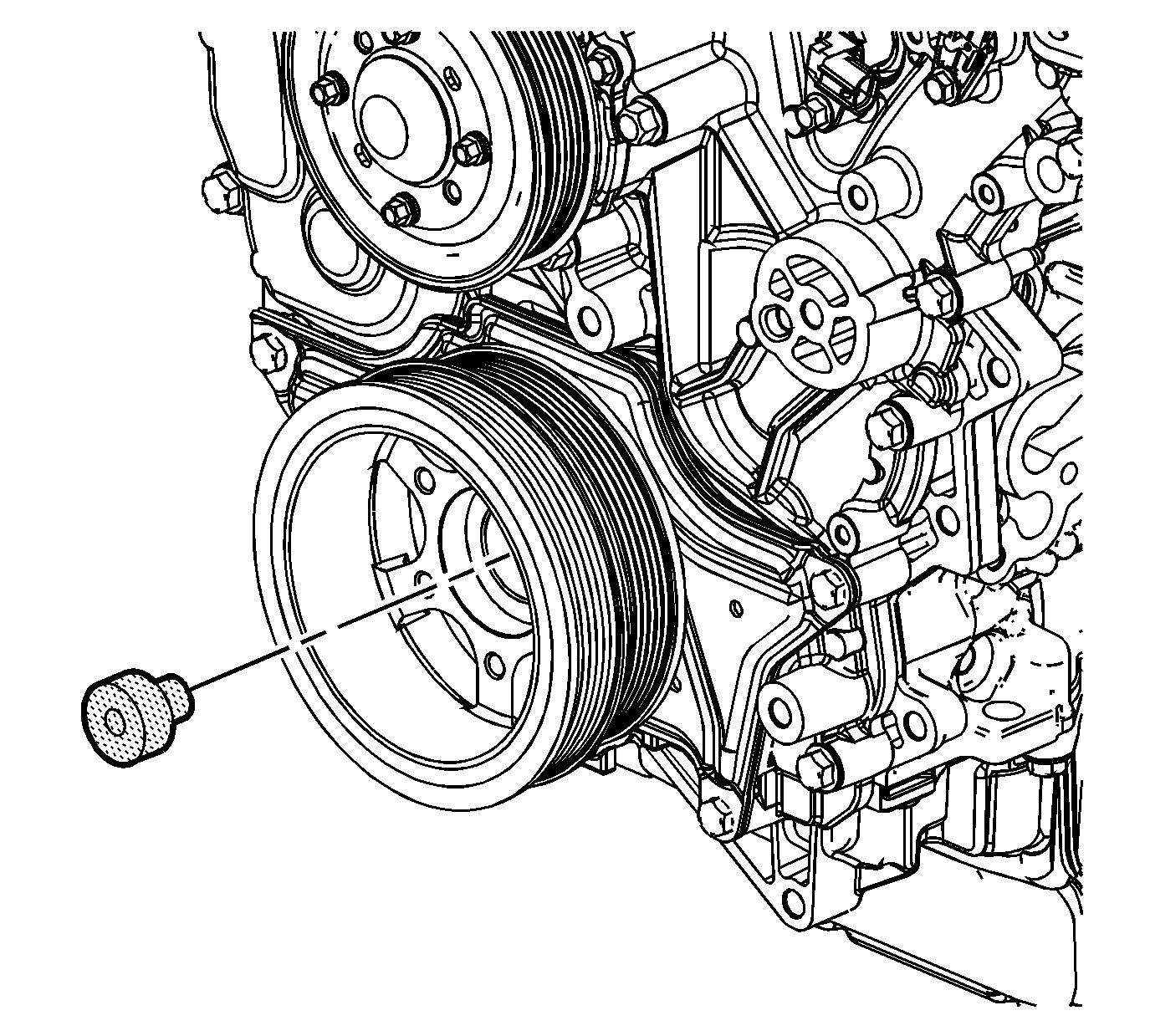

    3. Fig 3: Identifying J 38416-2 and Crankshaft
    GM1871062Courtesy of GENERAL MOTORS CORP.
  3. Install the J 38416-2  in the nose of the crankshaft. See Special Tools .

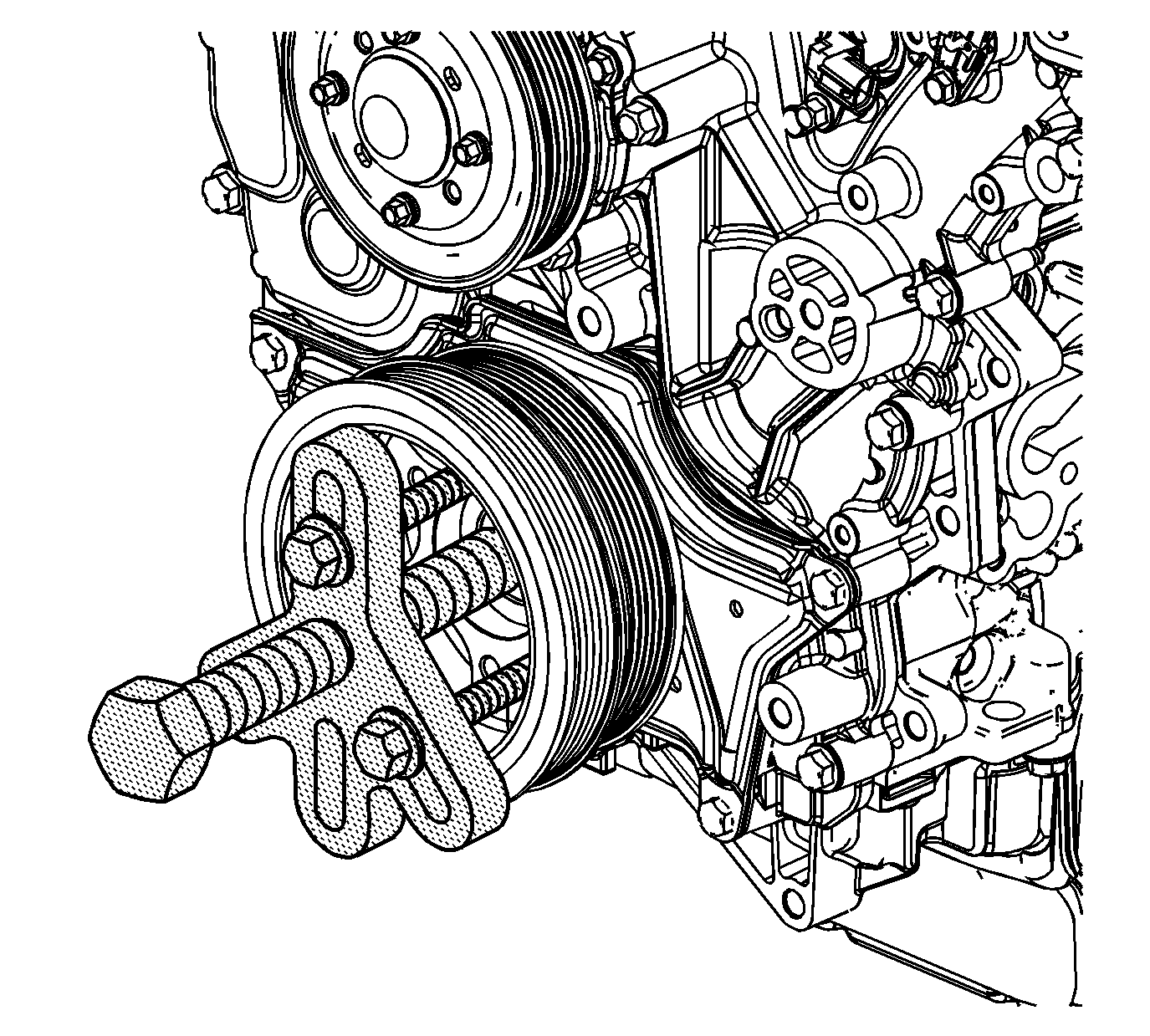

    4. Fig 4: Identifying J 24420-C and Crankshaft Balancer
    GM1871064Courtesy of GENERAL MOTORS CORP.
  4. Install the J 24420-C  in order to remove the crankshaft balancer. See Special Tools .

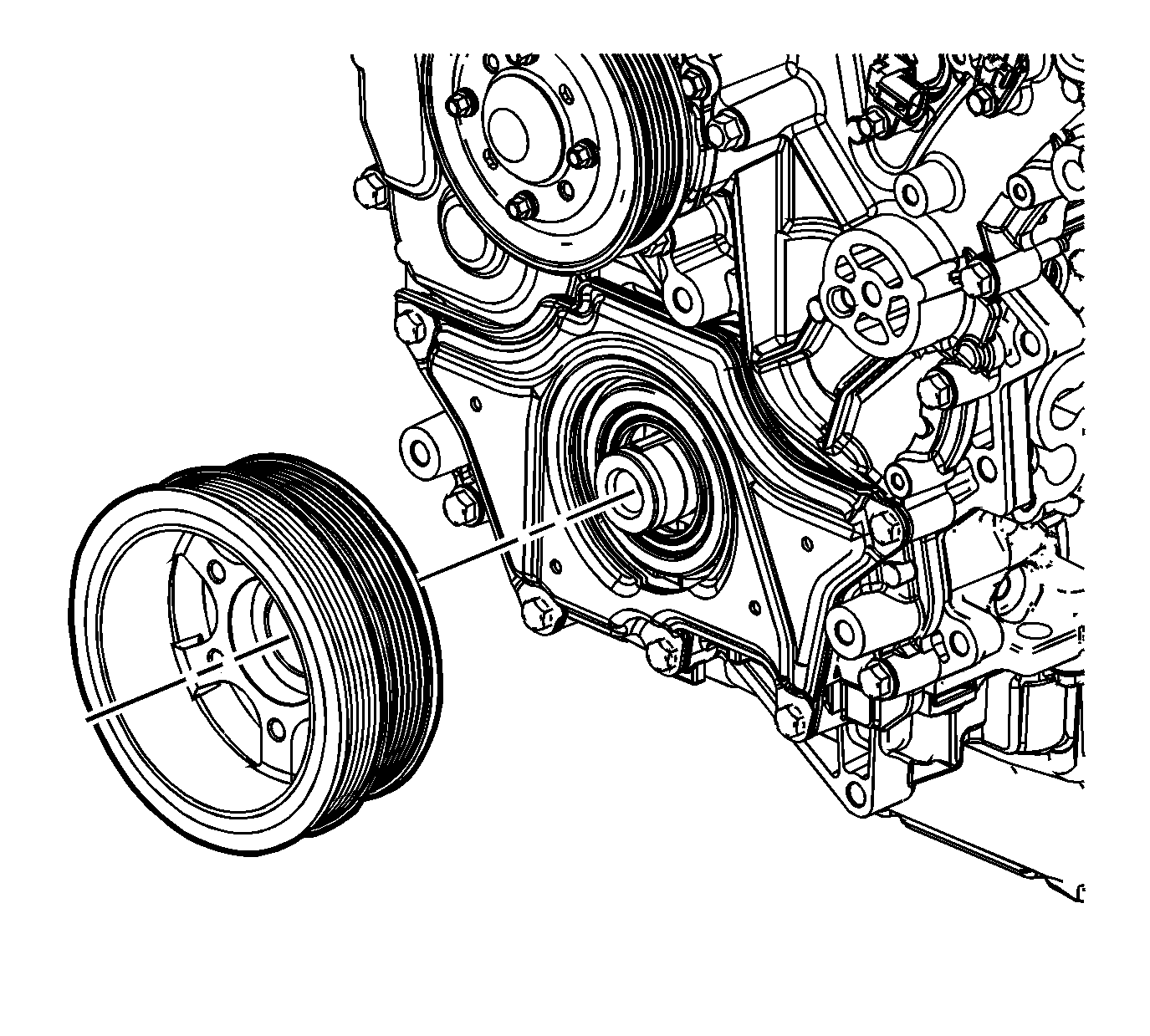

    5. Fig 5: View of Crankshaft Balancer Assembly
    GM1871065Courtesy of GENERAL MOTORS CORP.
  5. Pull the crankshaft balancer off by tightening the center bolt on the J 24420-C  until the crankshaft balancer pulls off of the crankshaft end. See Special Tools .
  6. Remove the J 24420-C  from the crankshaft balancer. See Special Tools .
    7. Fig 6: View Of Tool EN 46106
    GM945978Courtesy of GENERAL MOTORS CORP.
  7. Remove the EN 46106  . See Special Tools .
