Rear Seat Belt Retractor Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

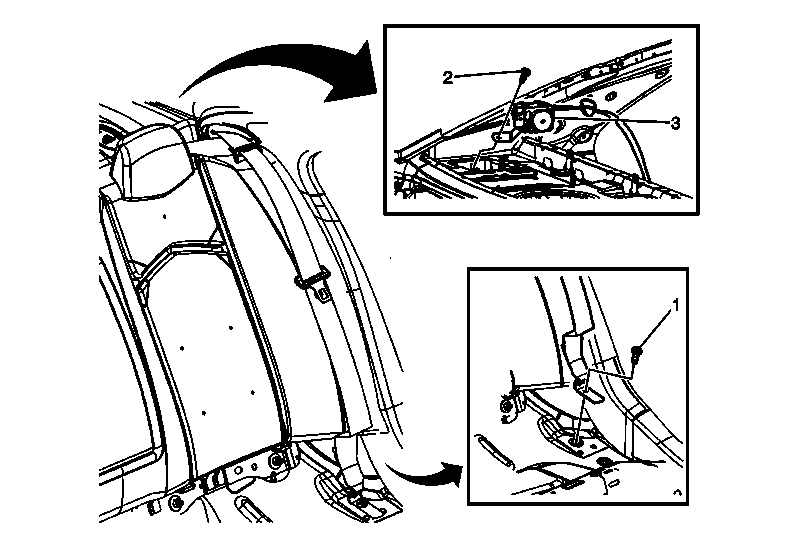

Fig 1: Exploded Viewing of Rear Seat Belt Retractor Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement . Remove the rear seat back. Refer to Rear Seat Back Replacement . Remove the rear window shelf trim panel. Refer to Rear Window Panel Trim Replacement .
1	Seat Shoulder Belt Anchor Plate Bolt NOTE: Refer to Fastener Notice . Tighten: 36 N.m (27 lb ft)
2	Seat Belt Retractor Bolt Tighten: 30 N.m (22 lb ft)
3	Rear Shoulder Seat Belt Retractor
