Rear Seat Belt Buckle Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

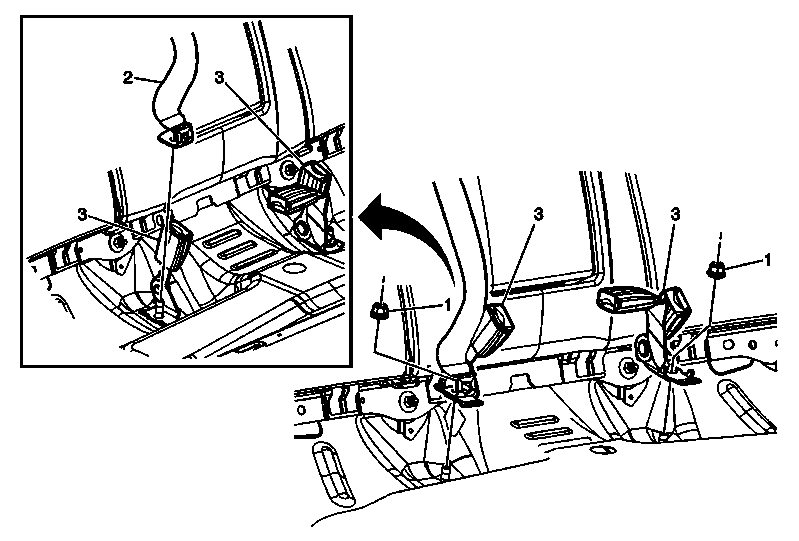

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement . |
|
| 1 | Seat Belt Buckle Nut (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 36 N.m (27 lb ft) |
| 2 | Seat Belt Shoulder Belt |
| 3 | Rear Seat Belt Assembly Buckle |
