Front Seat Belt Buckle Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

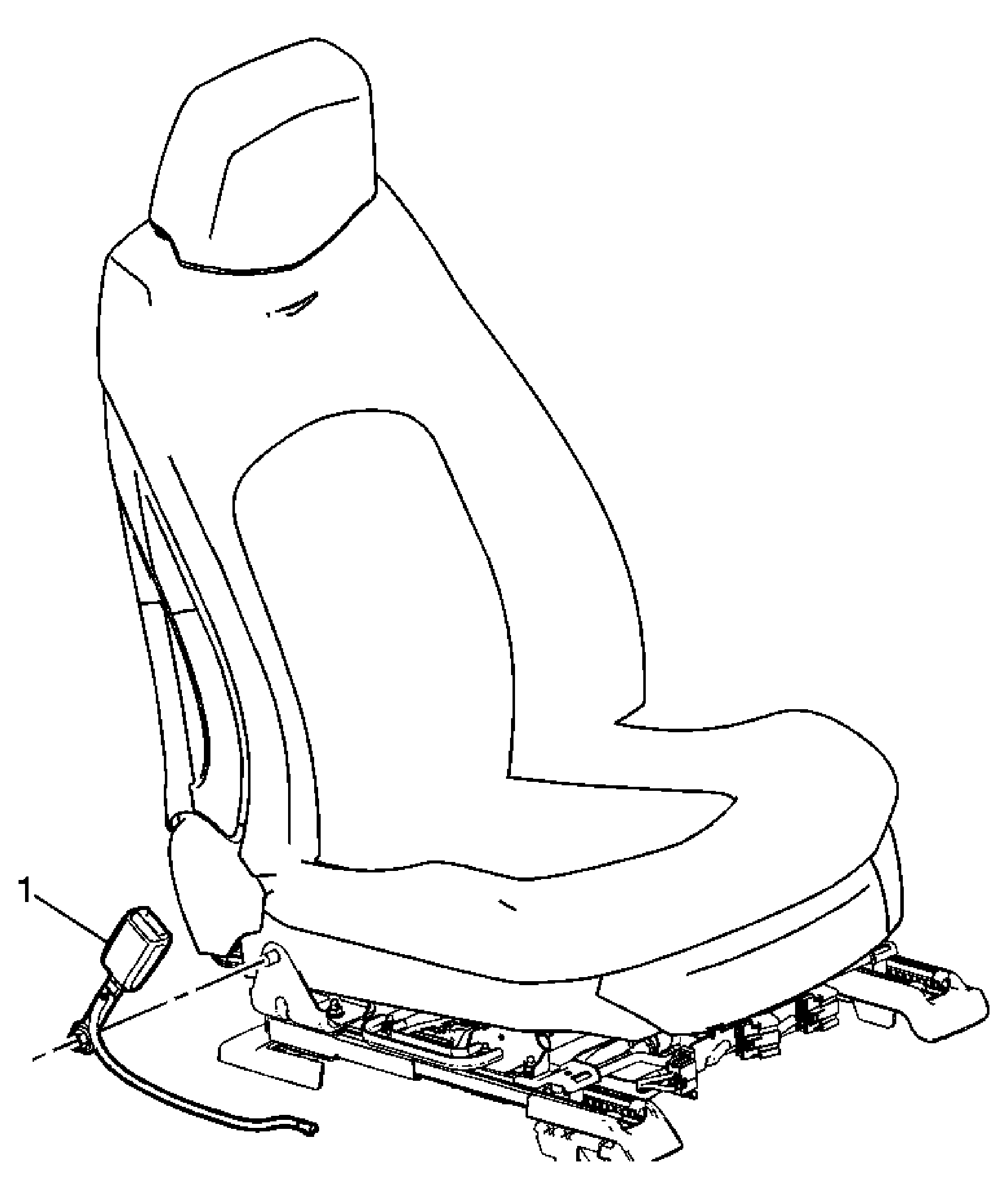

Fig 1: Identifying Front Seat Belt Buckle Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Seat Belt Buckle Assembly NOTE: Refer to Fastener Notice . Procedure Disconnect the electrical connector. Remove the buckle assembly by loosening the integral nut. Tighten: 40 N.m (30 lb ft)
