Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the transfer case from the vehicle. Refer to TRANSFER CASE .
  3. Remove the mounting bolts from the adapter to the transmission. See Fig 1.
  4. Remove the adapter from the transmission.
  5. Remove the seal between the transfer case and the adapter.
  6. Remove the transfer case to the adapter gasket.

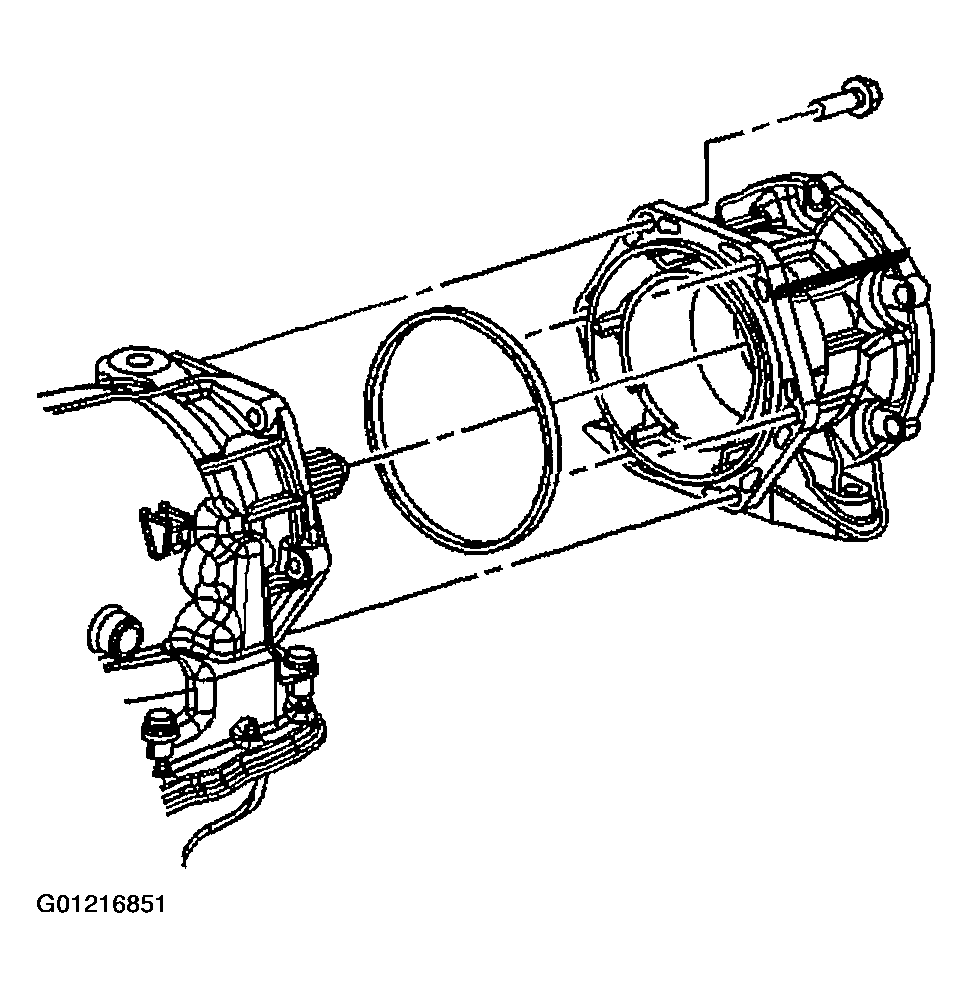

    Fig 1: Removing/Installing Adapter & Seal
    G01216851Courtesy of GENERAL MOTORS CORP.
