WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

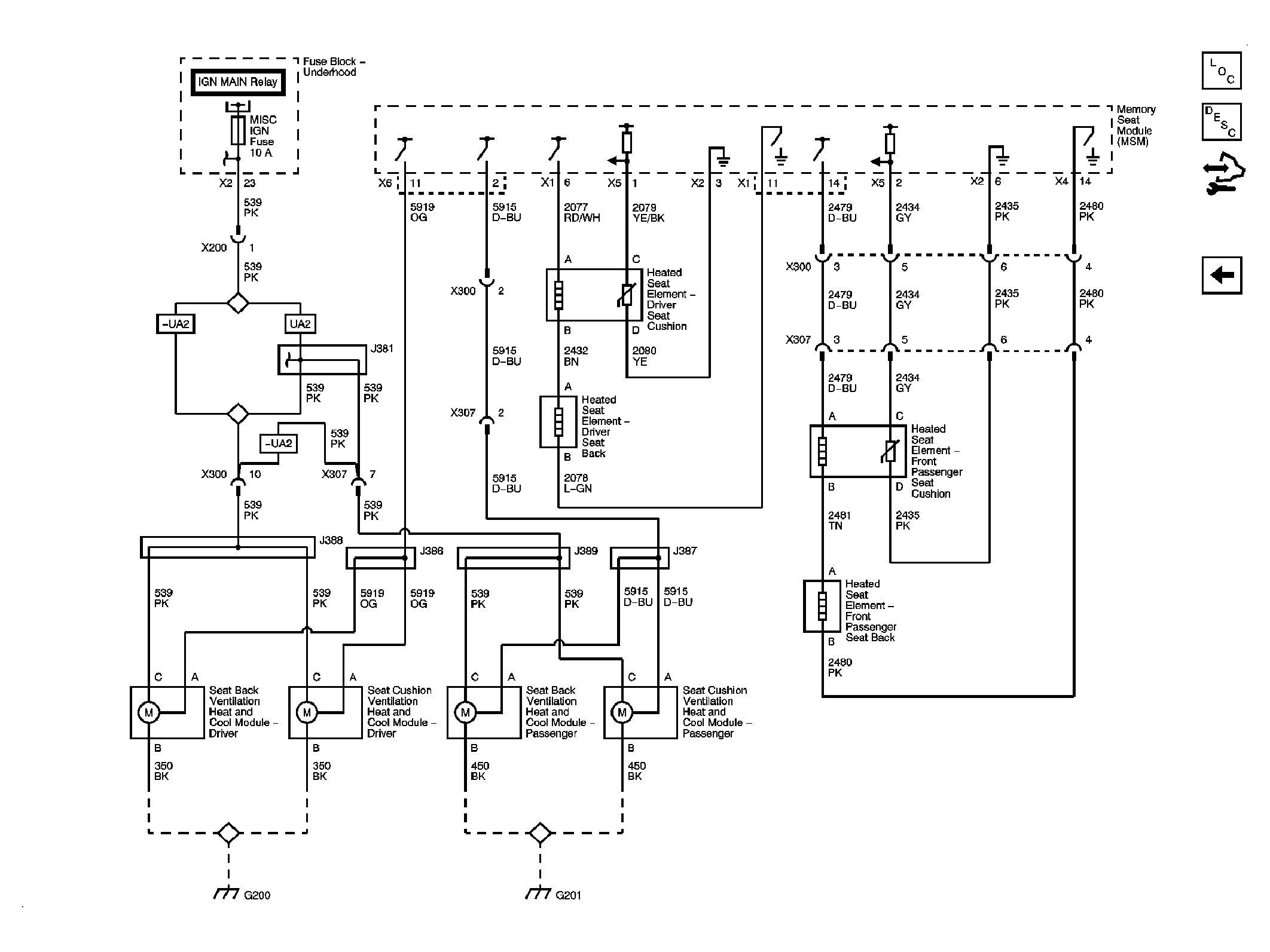

Fig 1: Heated/Cooled Seat Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 2: Heating Elements and Cooling Modules Schematic
