Driver Seat and Passenger Seat Cushion Ventilation Heating and Cooling Blower Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

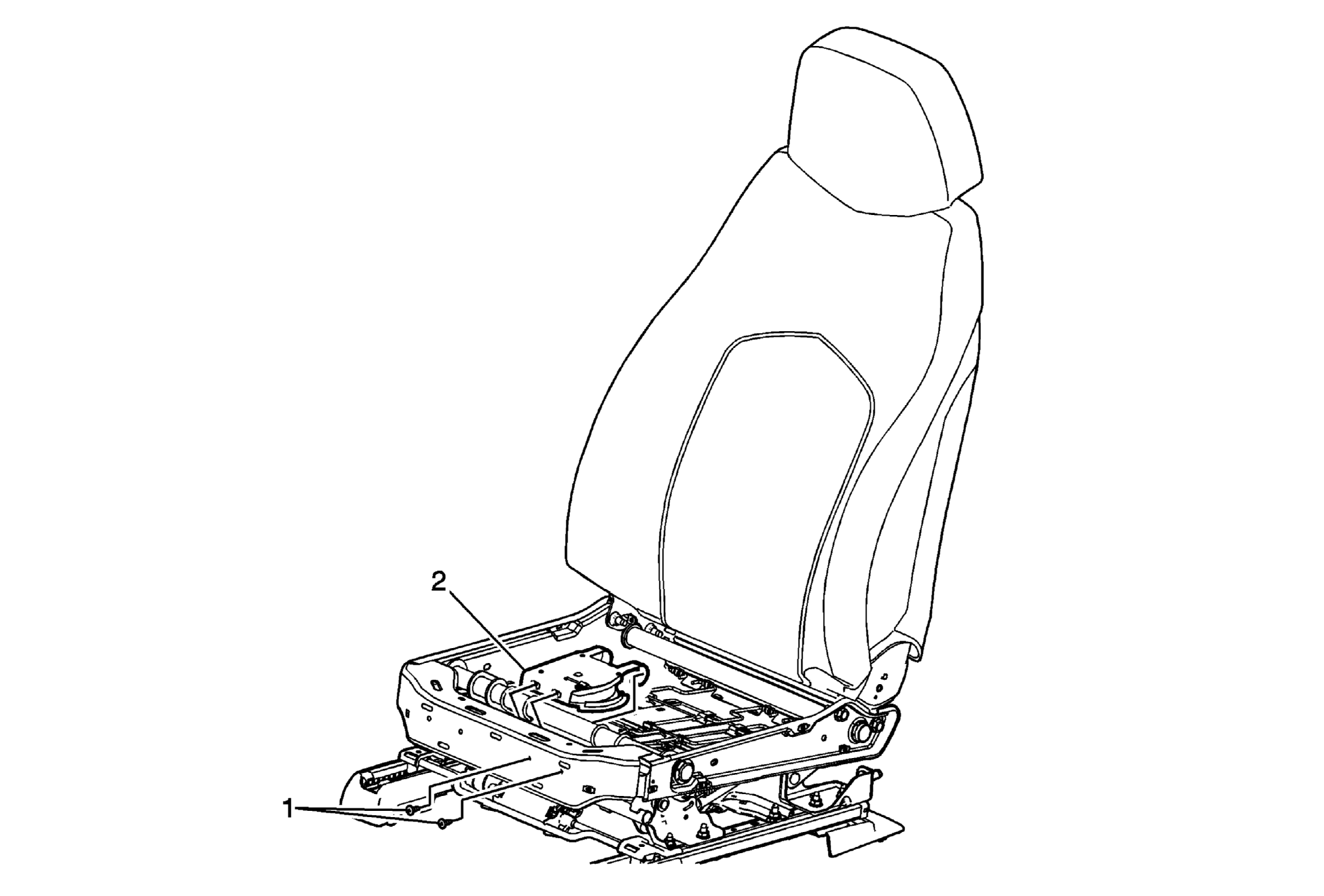

Fig 1: Driver Seat and Passenger Seat Cushion Ventilation Heating and Cooling Blower Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to Front Seat Replacement - Bucket . Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .
1	Front Seat Cushion Ventilation Heating and Cooling Blower Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 3 N.m (27 lb in)
2	Front Seat Cushion Ventilation Heating and Cooling Blower Procedure: Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure

Remove the front seat. Refer to Front Seat Replacement - Bucket .
Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .

Front Seat Cushion Ventilation Heating and Cooling Blower Screw (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 3 N.m (27 lb in)

Front Seat Cushion Ventilation Heating and Cooling Blower
Procedure:
Disconnect the electrical connector.
