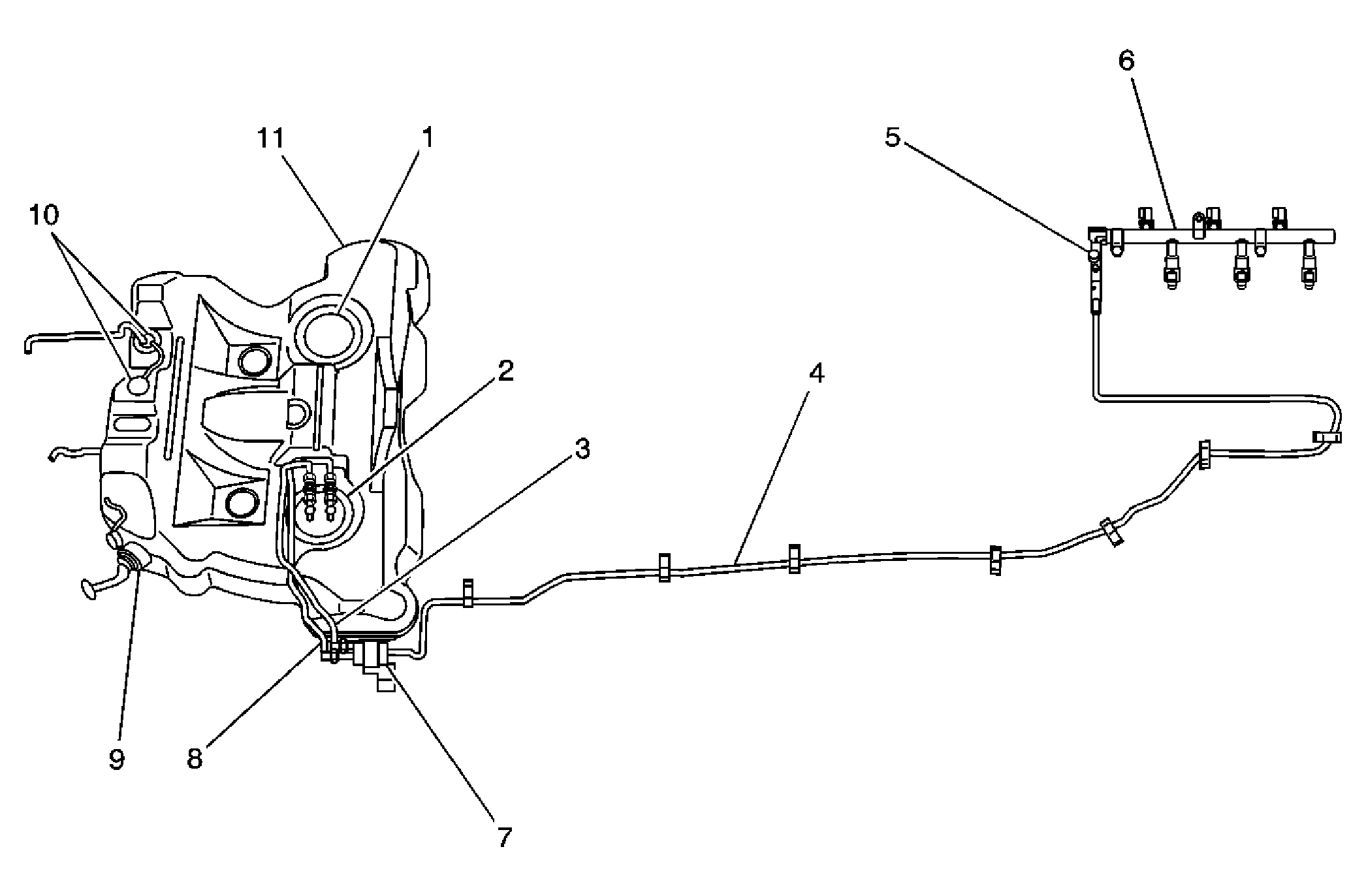

Fuel Hose/Pipes Routing Diagram (w/o LLT)
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Secondary Fuel Sender Assembly - Left |
| 2 |
Primary Fuel Sender Assembly - Right |
| 3 |
Fuel Feed Hose |
| 4 |
Fuel Feed Pipe |
| 5 |
Fuel Pressure Test Connection |
| 6 |
Fuel Rail and Injectors |
| 7 |
Fuel Filter |
| 8 |
Fuel Return Hose |
| 9 |
Fuel Filler Tube |
| 10 |
Fill Limit Vent Valve (FLVV) |
| 11 |
Fuel Tank |
