Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to Gasoline/Gasoline Vapors Caution .

Remove the primary fuel tank module. Refer to Fuel Tank Fuel Pump Module Replacement - Right Side .

Fig 1: View Of Primary Fuel Level Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Do not pull on the connector wires.

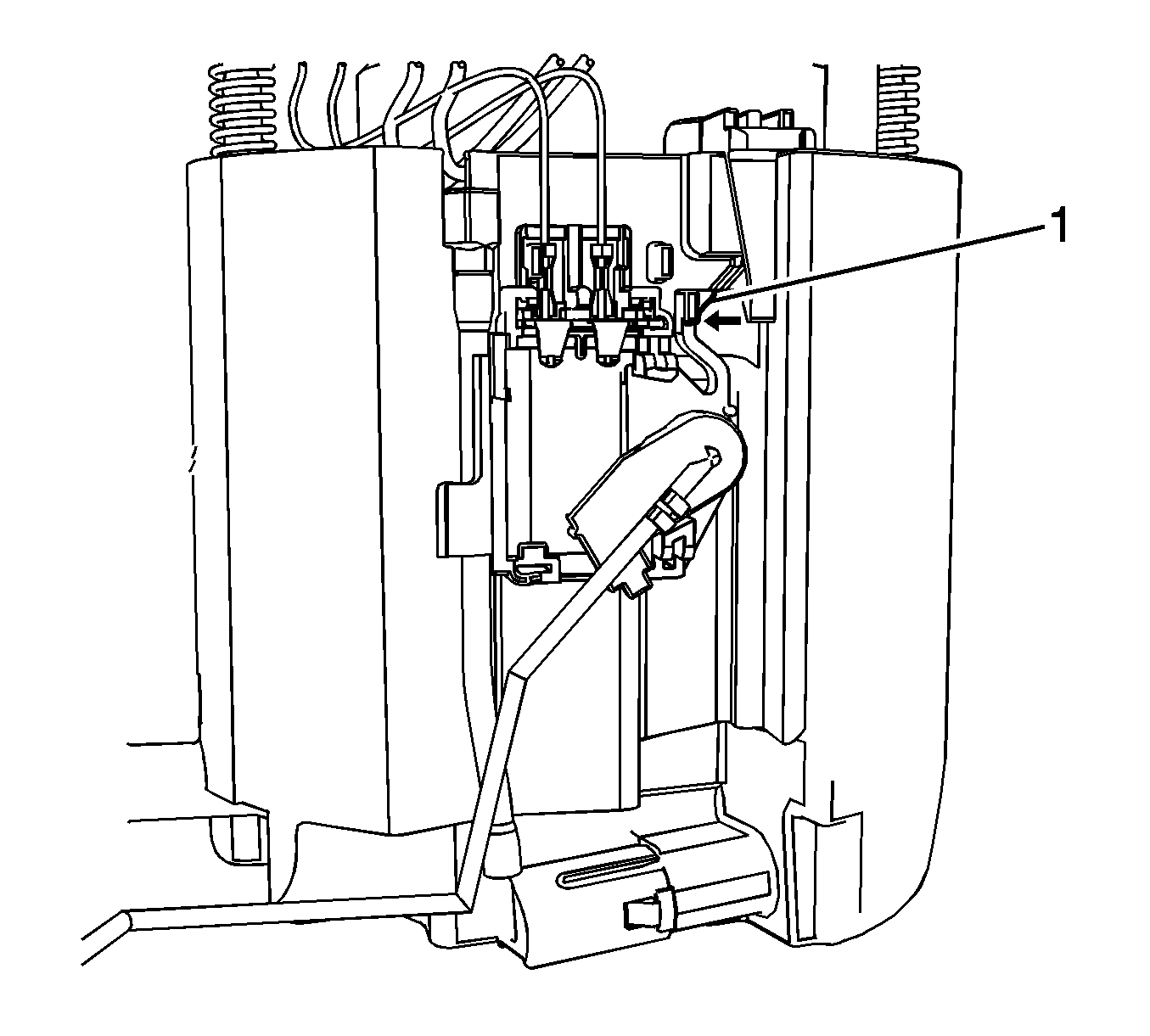

Press in the locking tab (1) and disconnect the fuel level sensor electrical connector.
Courtesy of GENERAL MOTORS CORP.

Disconnect the fuel level sensor electrical connector (1).
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Do not touch the resistor circuit board.

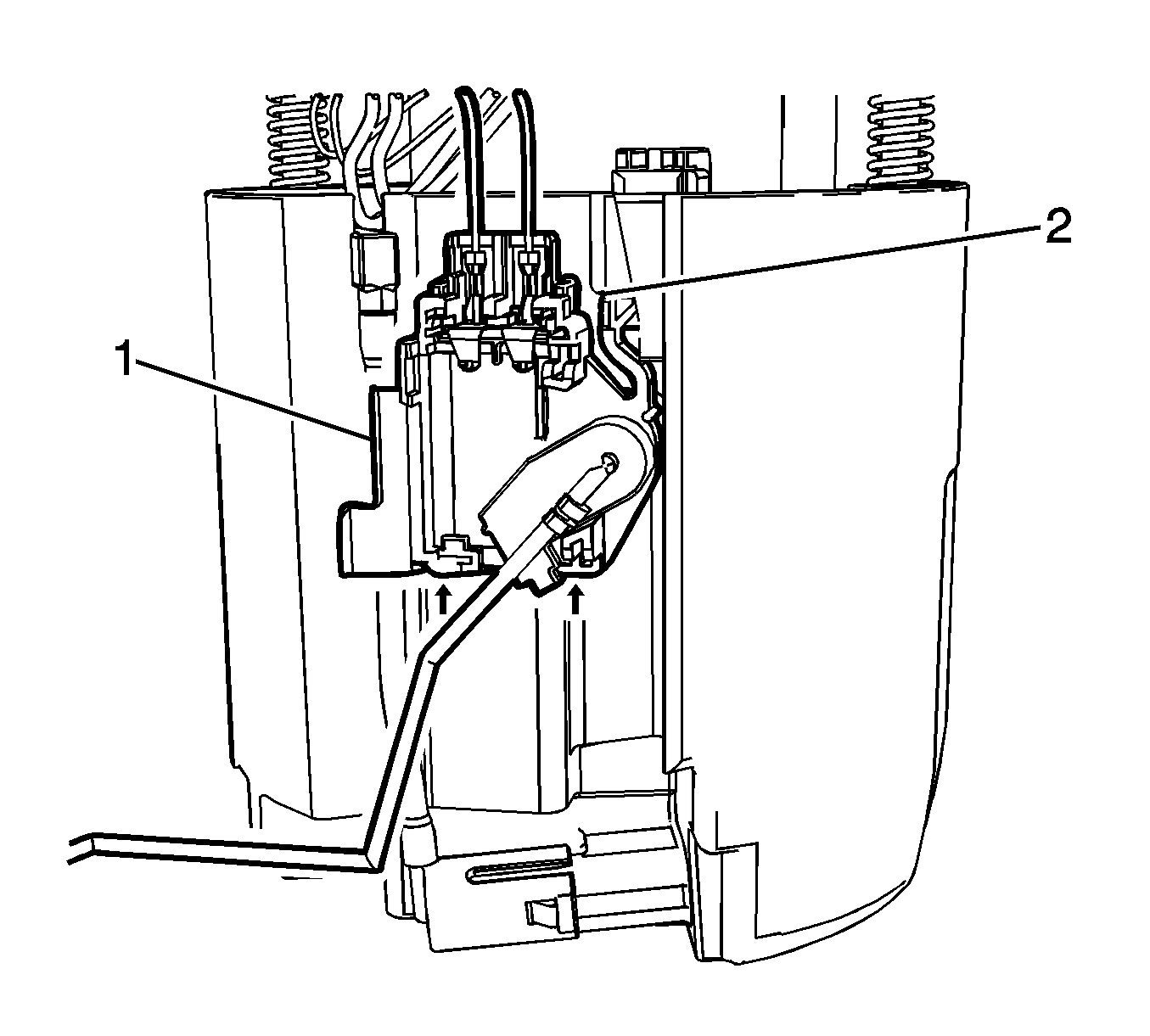

Disengage the locking tab (1) on the fuel level sensor by pushing inward.
Courtesy of GENERAL MOTORS CORP.

Slide the fuel level sensor (1) upward to the stationary lock (2).
Courtesy of GENERAL MOTORS CORP.

Remove the fuel level sensor (1).
