Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
GM2029178Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel level sensor (1).

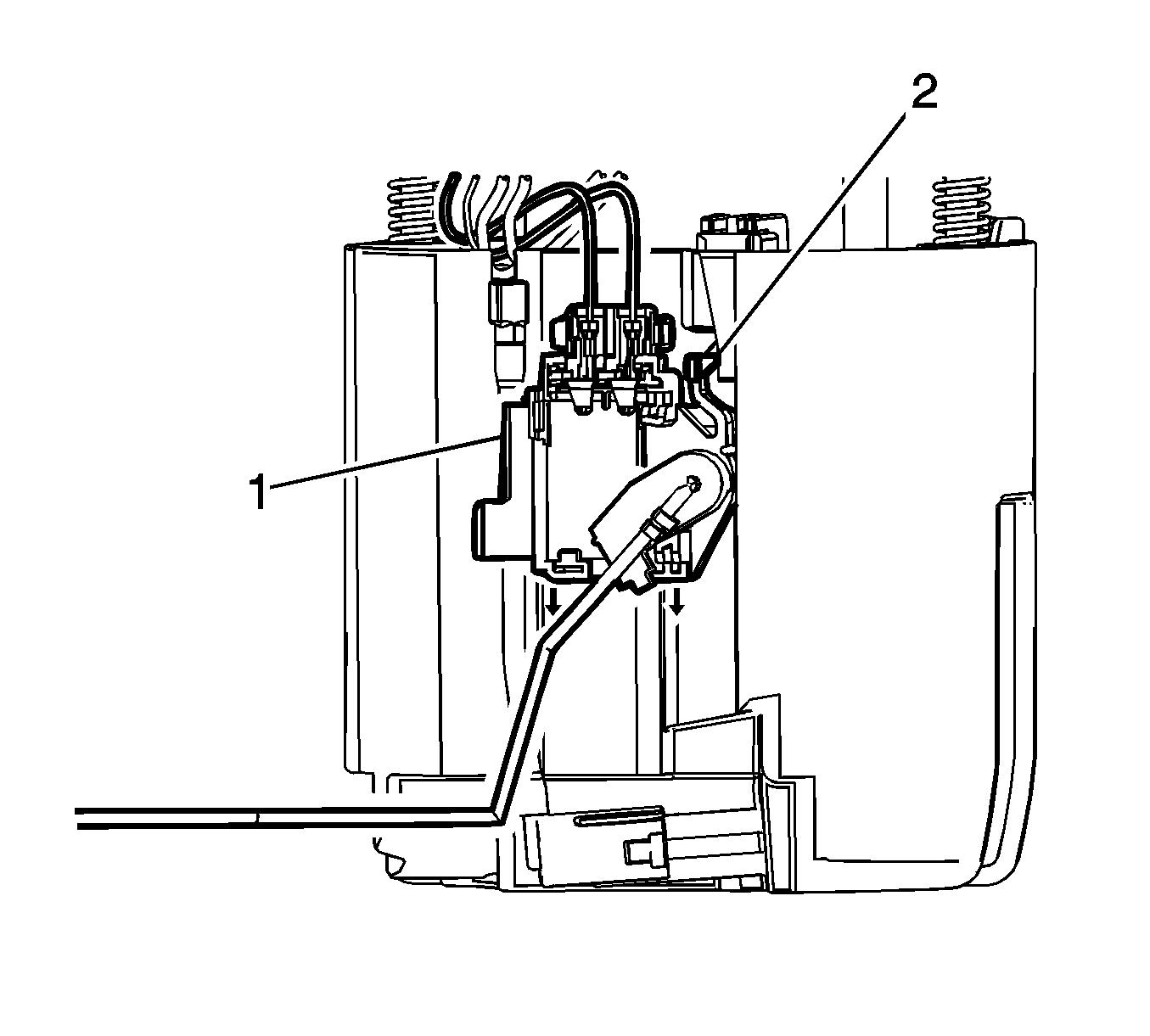

  2. GM2029209Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not push on the electrical terminals.

    Slide the fuel level sensor (1) downward until the locking tab (2) locks into place.

  3. IMPORTANT: Do not push on the electrical wires.
    IMPORTANT: Ensure the connector locking tab is fully seated into the flange.

    Connect the fuel level sensor electrical connector (1).

  4. Install the right fuel tank pump module. Refer to Fuel Tank Fuel Pump Module Replacement - Right Side
