Fuel Feed Rear Pipe Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

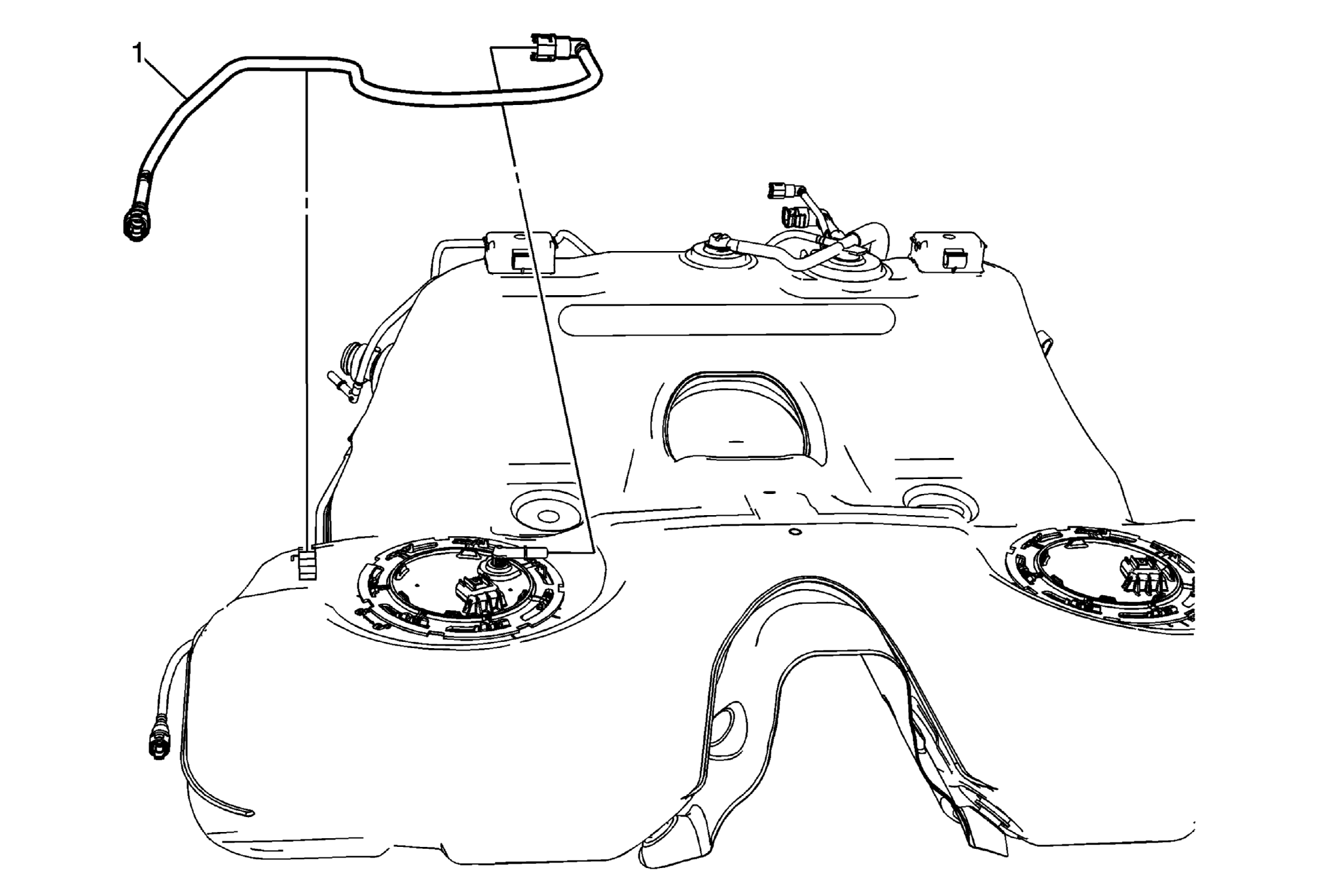

Fig 1: Fuel Feed Rear Pipe
GM2238152Courtesy of GENERAL MOTORS CORP.
Fuel Feed Rear Pipe Replacement

Callout  Component Name
Preliminary Procedure
  1. Remove the fuel tank. Refer to Fuel Tank Replacement
  2. Disconnect the quick connect connector. Refer to Plastic Collar Quick Connect Fitting Service
1 Fuel Feed Rear Pipe
