WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

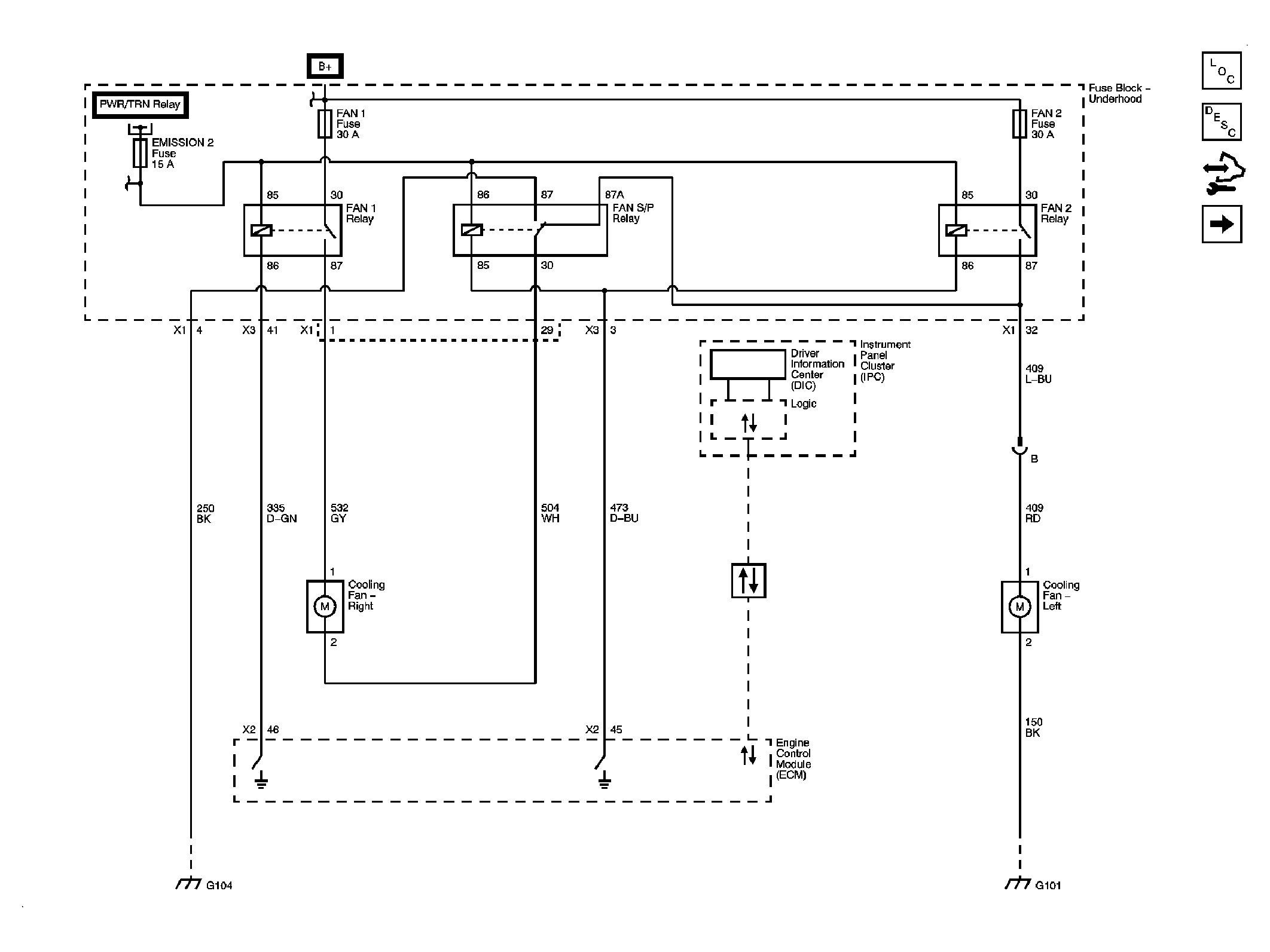

Fig 1: Cooling Fan System Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 2: Engine Cooling After Boil Pump (LLT) Schematic
