Radiator Surge Tank Outlet Hose/Pipe Replacement (LLT)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

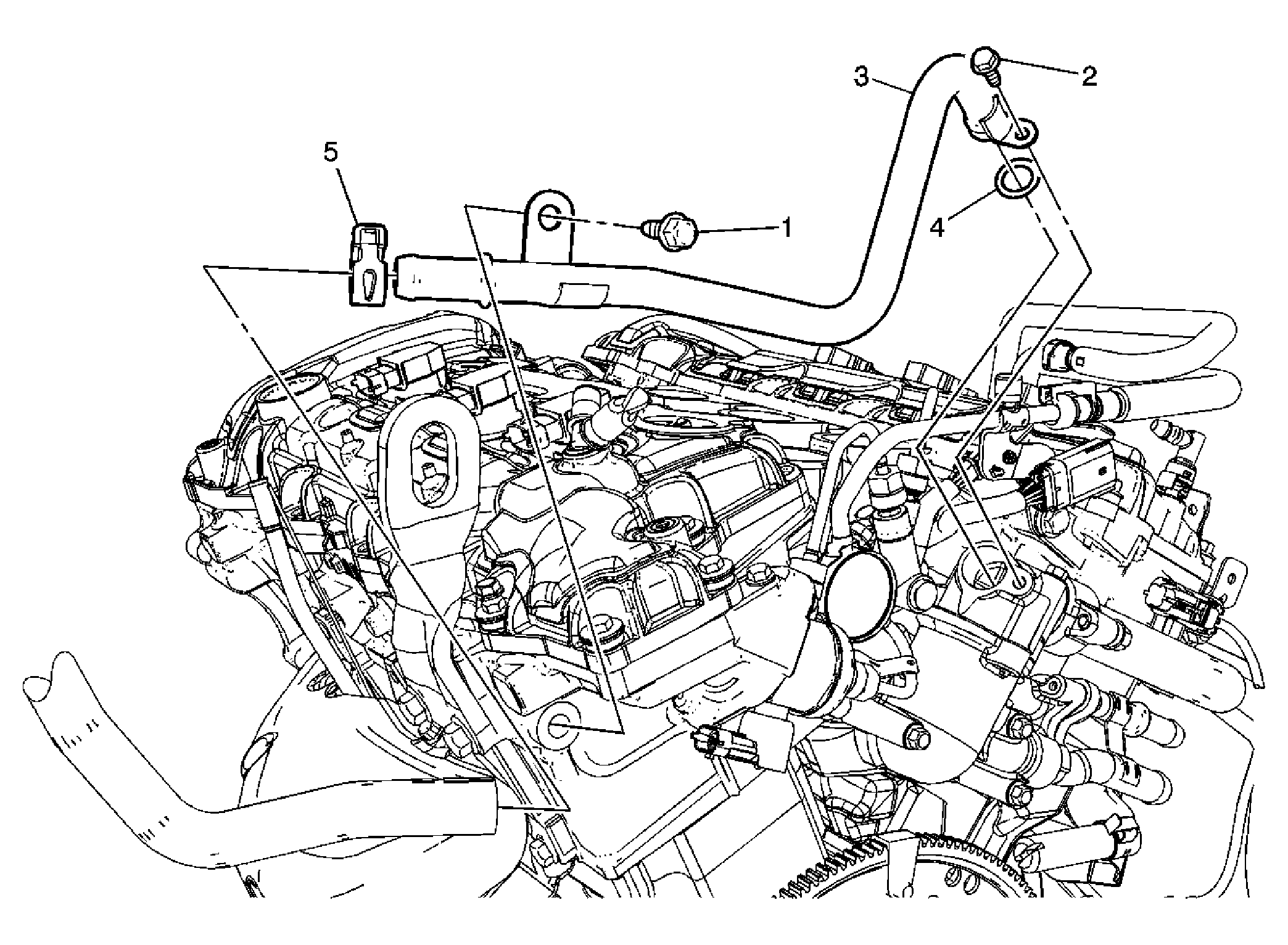

Fig 1: Radiator Surge Tank Outlet Hose/Pipe Replacement (LLT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Partially drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) or Cooling System Draining and Filling (Static Fill) . Remove the fuel pipe shield. Refer to Fuel Pipe Shield Replacement (LLT) .
1	Outlet Pipe Bolt (Attached to Head) NOTE: Refer to Fastener Notice . Tighten: 23 N.m (17 lb ft)
2	Outlet Pipe Bolt (Attached to Thermostat Housing) Tighten: 10 N.m (89 lb in)
3	Radiator Surge Tank Outlet Pipe
4	O-ring Procedure: Apply a small amount of lubricant to the surge tank pipe O-ring to allow the O-ring to seal properly.
5	Spring Clamp
