Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cooling fan assembly. Refer to Engine Cooling Fan Replacement .

Fig 1: Locating Fan Blade Retaining Nuts

Courtesy of GENERAL MOTORS CORP.

Remove the fan blade retaining nut (1) from the motor.

Fig 2: View Of Motor Shaft Fan Blade

Courtesy of GENERAL MOTORS CORP.

Remove the fan blade from the motor shaft.

Fig 3: Locating Motor Retaining Screws

Courtesy of GENERAL MOTORS CORP.

Remove the motor retaining screws (1).

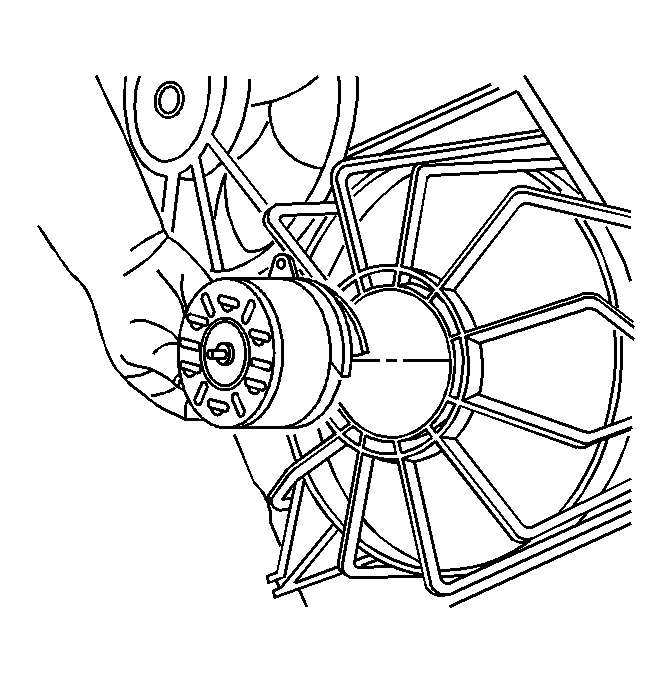

Fig 4: View Of Cooling Fan Motor

Courtesy of GENERAL MOTORS CORP.

Remove the motor from the shroud.
