Coolant Heater Cord Replacement (LLT First Design)
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

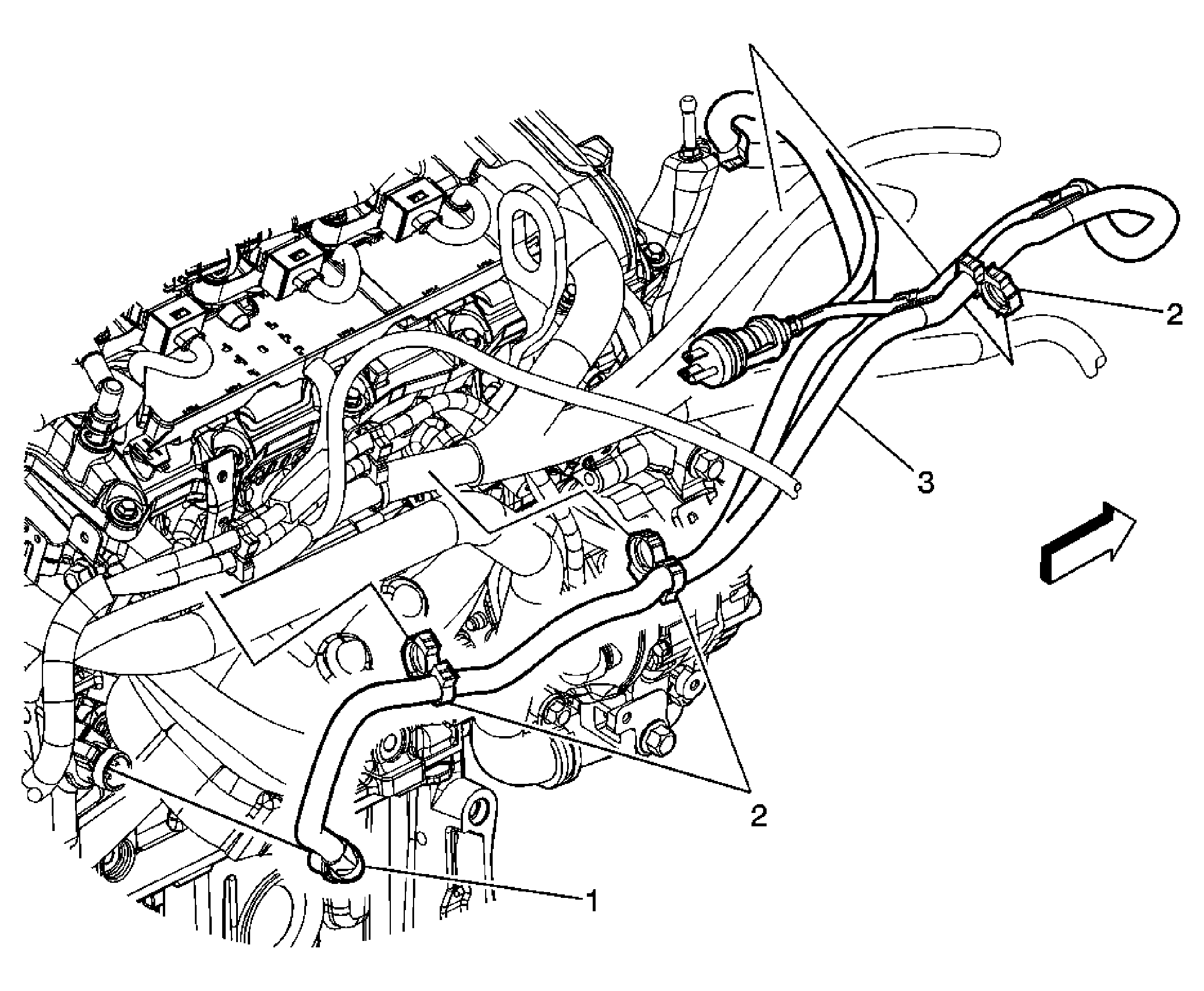

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Engine Heater Cord Female Connector |
| 2 | Plastic Clip (Qty: 3) |
| 3 | Coolant Heater Cord |
