Auxiliary Water Pump Replacement (LLT)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

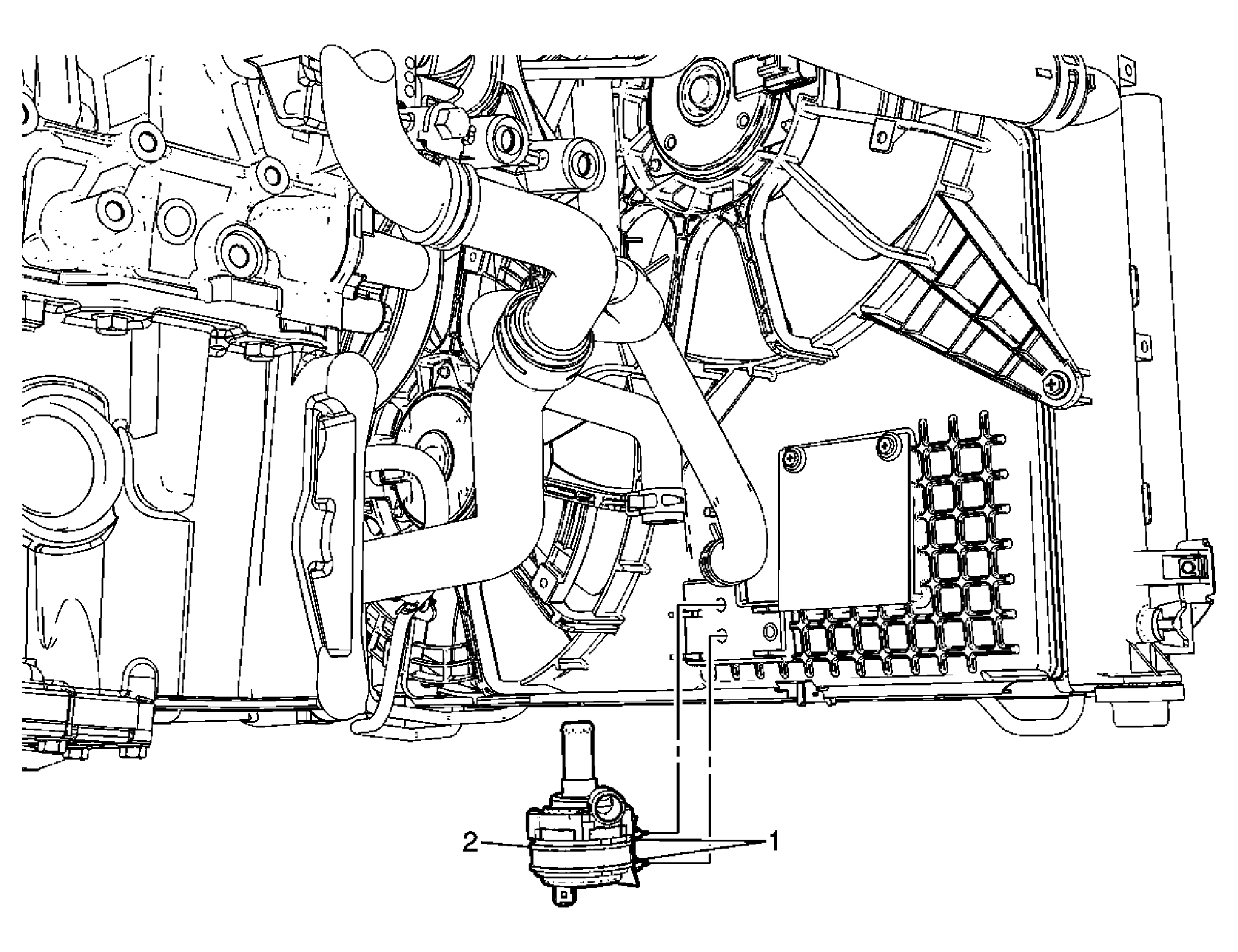

Fig 1: Auxiliary Water Pump Replacement (LLT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the coolant. Refer to Cooling System Draining and Filling (GE 47716) or Cooling System Draining and Filling (Static Fill) . Disengage auxiliary water pump inlet hose from auxiliary water pump. Refer to Auxiliary Water Pump Inlet Hose Replacement . Disengage auxiliary water pump outlet hose from auxiliary water pump. Refer to Auxiliary Water Pump Outlet Hose Replacement . Disconnect the auxiliary water pump electrical connector. Remove the lower fan shroud bolts. Push fan shroud rearward of vehicle. Press the auxiliary water pump push retainers and pull auxiliary water pump rearward of vehicle.
1	Auxiliary Water Pump Push Retainers
2	Auxiliary Water Pump

Callout

Component Name

Preliminary Procedures

Drain the coolant. Refer to Cooling System Draining and Filling (GE 47716) or Cooling System Draining and Filling (Static Fill) .
Disengage auxiliary water pump inlet hose from auxiliary water pump. Refer to Auxiliary Water Pump Inlet Hose Replacement .
Disengage auxiliary water pump outlet hose from auxiliary water pump. Refer to Auxiliary Water Pump Outlet Hose Replacement .
Disconnect the auxiliary water pump electrical connector.
Remove the lower fan shroud bolts.
Push fan shroud rearward of vehicle.
Press the auxiliary water pump push retainers and pull auxiliary water pump rearward of vehicle.

Auxiliary Water Pump Push Retainers

Auxiliary Water Pump
