Front Seat Adjuster Actuator Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

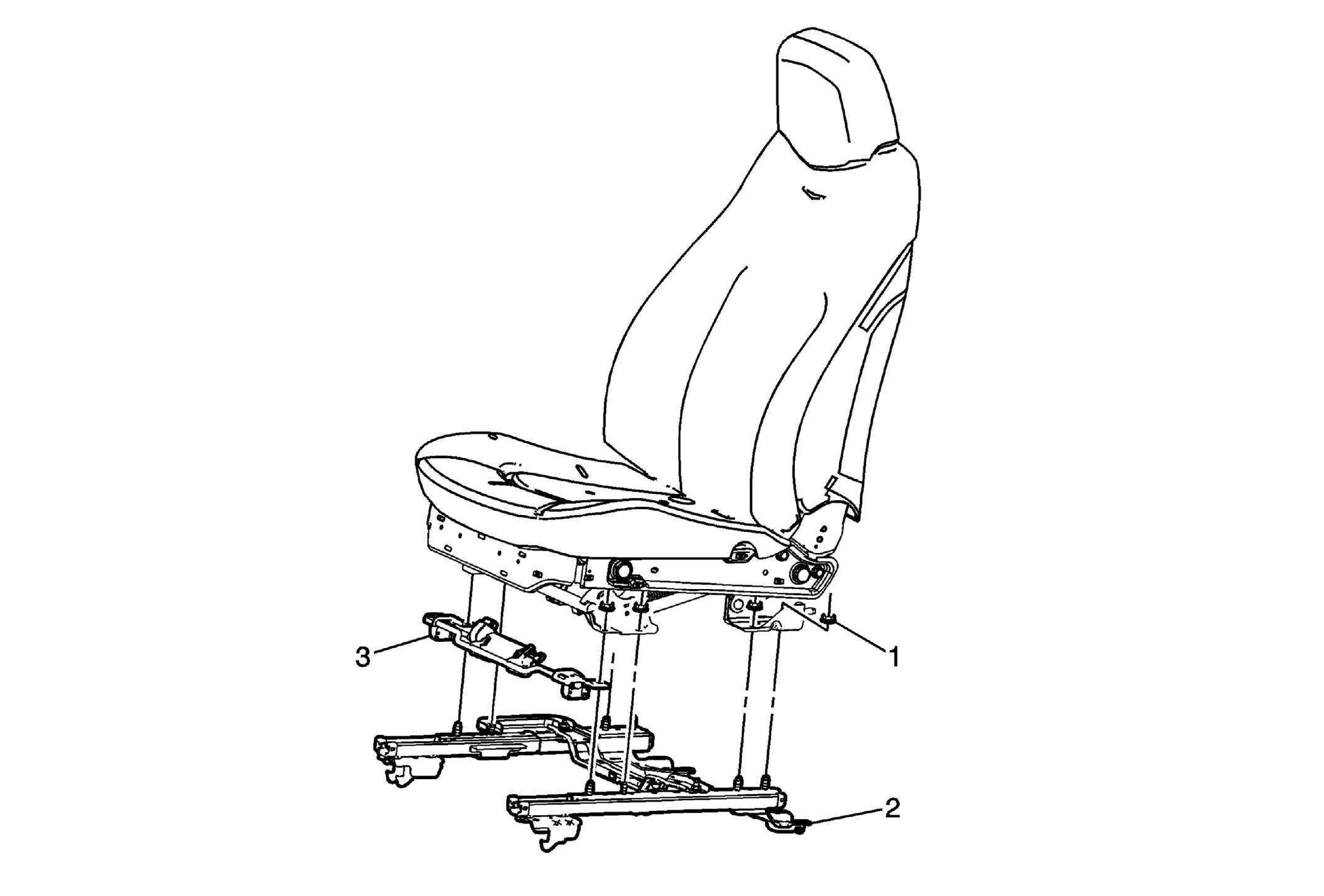

Fig 1: Front Seat Adjuster Actuator Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front seat. Refer to Front Seat Replacement - Bucket .
1	Front Seat Adjuster Track Nut (Qty: 8) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Front Seat Adjuster Track Assembly
3	Front Seat Adjuster Actuator Procedure Disconnect the electrical connector. Remove the stops on the front of the seat tracks and slide the actuator assembly forward to remove. Refer to Control Module References for programing and setup information.
