Driver Seat Outer Adjuster Rear Vertical Actuator Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

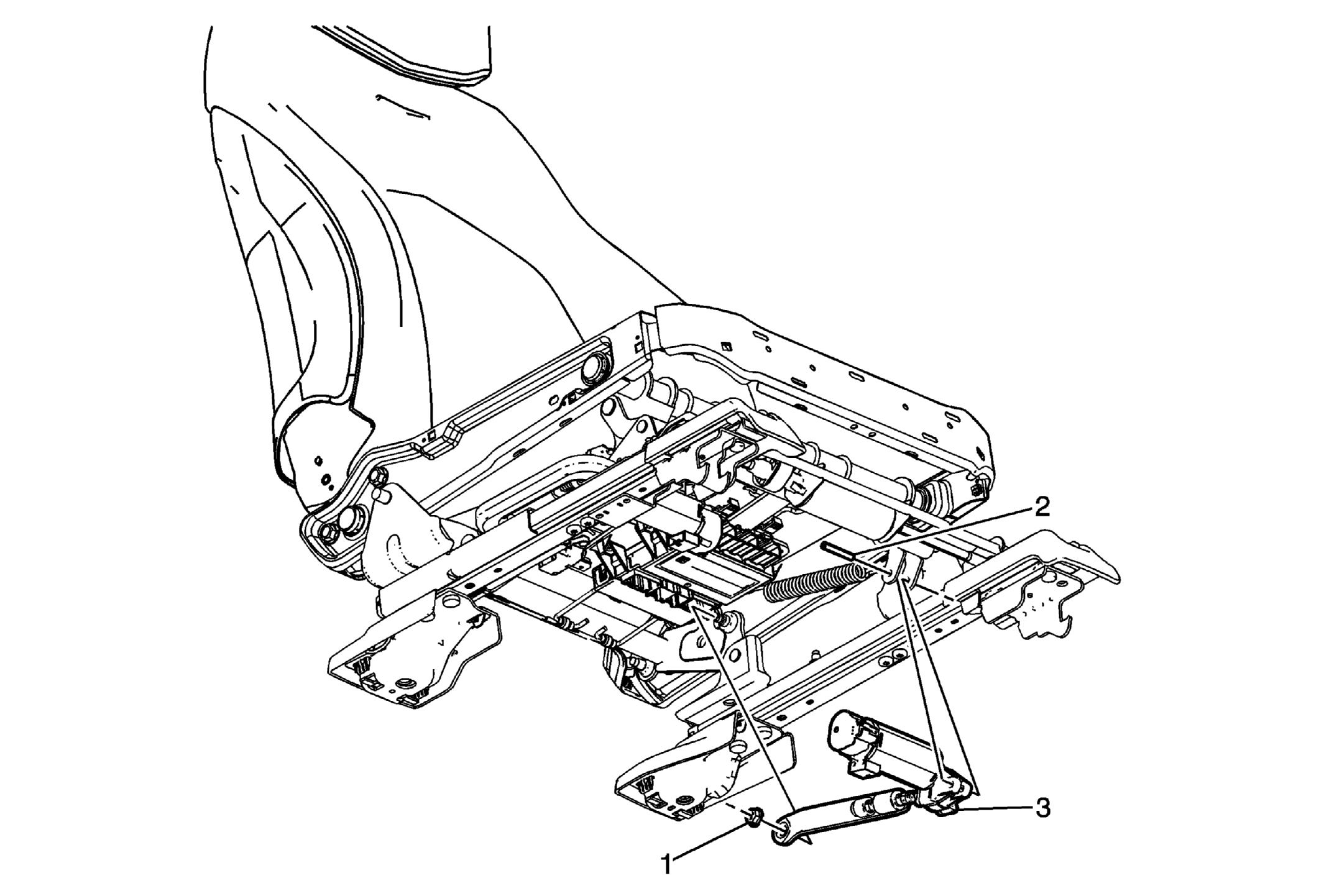

Fig 1: Driver Seat Outer Adjuster Rear Vertical Actuator Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front seat. Refer to Front Seat Replacement - Bucket .
1	Front Seat Outer Adjuster Rear Vertical Actuator Nut NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Roll Pin Tip: Use a hammer and small round tool to tap the roll pin out.
3	Front Seat Outer Adjuster Rear Vertical Actuator Procedure Disconnect the electrical connector. Refer to Control Module References for programing and setup information.
