Sunroof Window Replacement - Rear

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

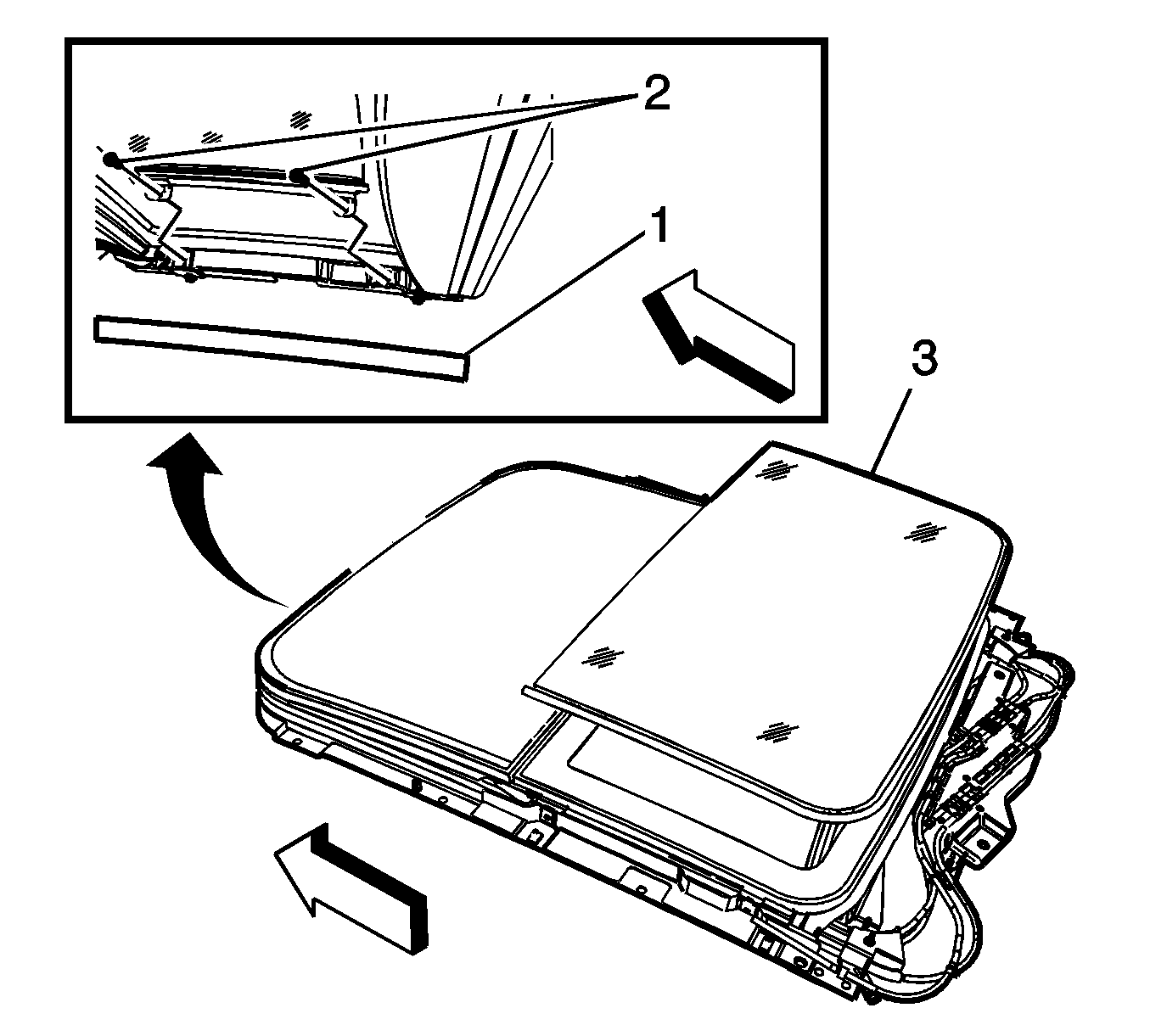

Fig 1: Sunroof Window Replacement - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Window Panel Closeout Panel Cover (Qty: 2) Tip: It is not necessary to remove the sunroof window panel closeout panel cover push downward to expose the screws.
2	Rear Sunroof Window Panel Bolt (Qty: 4) NOTE: Refer to Fastener Notice . Procedure Open the sunshade. Place the sunroof in the vent position to access the screws. Tighten: 6 N.m (53 lb in).
3	Rear Sunroof Window Panel Procedure Sunroof window height and opening fit adjustment. Refer to Sunroof Window Height and Opening Fit Adjustment . Inspect sunroof for proper operation.

Callout

Component Name

Sunroof Window Panel Closeout Panel Cover (Qty: 2)
Tip: It is not necessary to remove the sunroof window panel closeout panel cover push downward to expose the screws.

Rear Sunroof Window Panel Bolt (Qty: 4)

NOTE: Refer to Fastener Notice .

Procedure

Open the sunshade.
Place the sunroof in the vent position to access the screws.

Tighten: 6 N.m (53 lb in).

Rear Sunroof Window Panel

Procedure

Sunroof window height and opening fit adjustment. Refer to Sunroof Window Height and Opening Fit Adjustment .
Inspect sunroof for proper operation.
