Sunroof Water Gutter Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

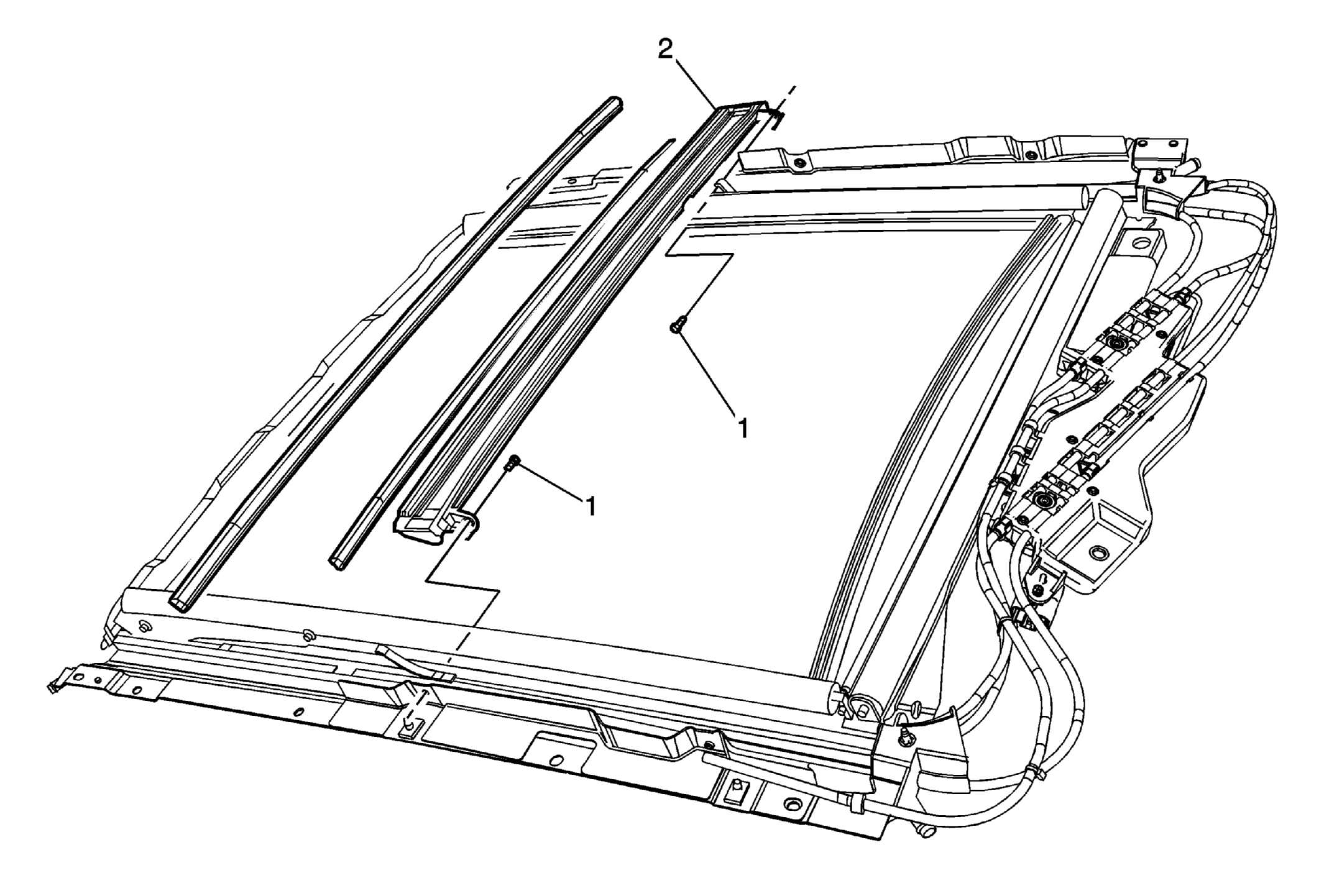

Fig 1: Sunroof Water Gutter Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Water Gutter Housing Drain Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tip: Push downward on the sunroof panel side opening cover to view the sunroof water gutter housing drain screws. Tighten: 4 N.m (35 lb in)
2	Sunroof Water Gutter Housing Drain
