Sunroof Sunshade Switch Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

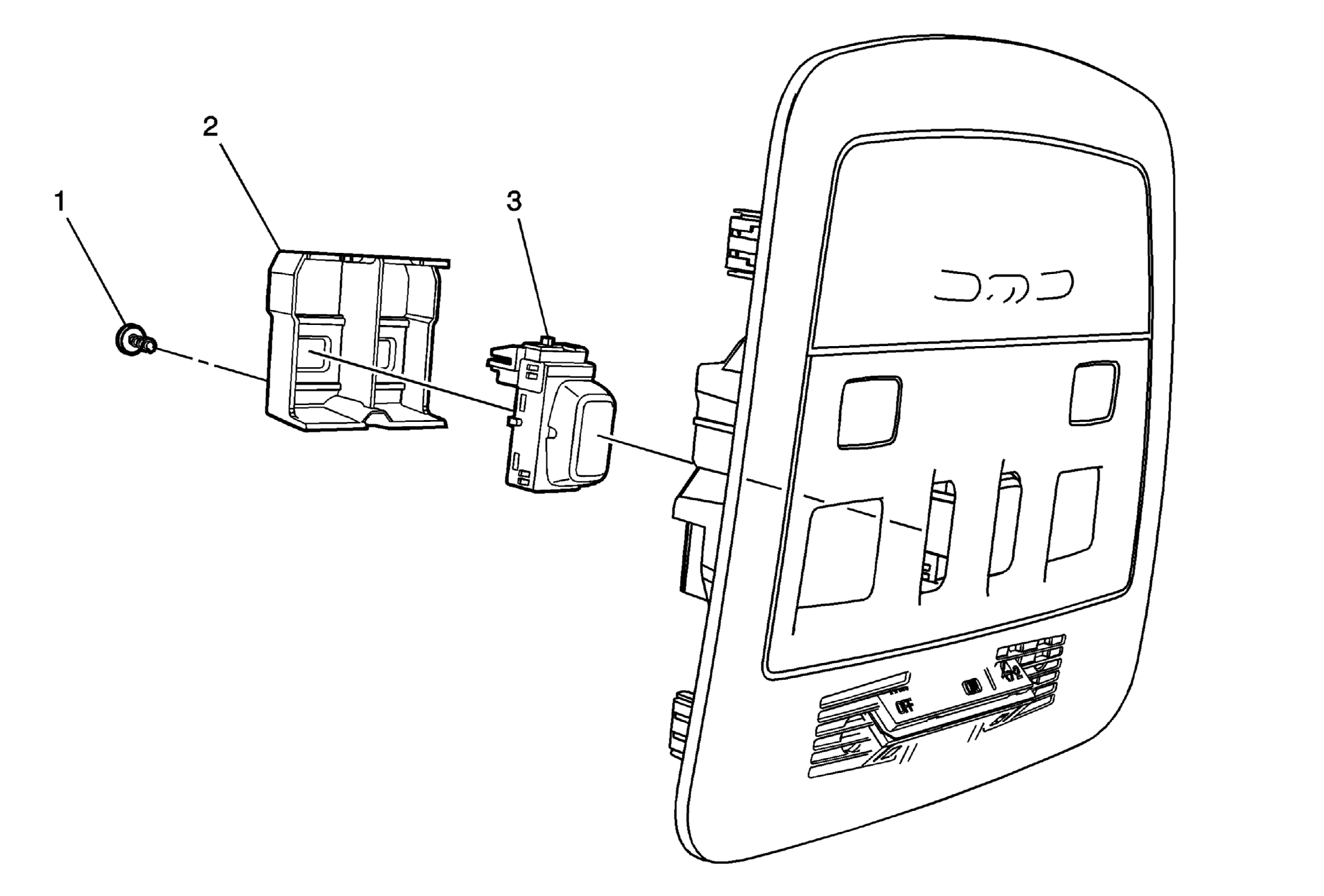

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the roof console. Refer to Roof Console Replacement . |
|
| 1 | Sunroof Switch Bracket Screw
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 2 | Sunroof Switch Bracket |
| 3 | Sunroof Sunshade Switch Procedure: Unsnap the switch from the roof console. |
