Sunroof Air Deflector Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

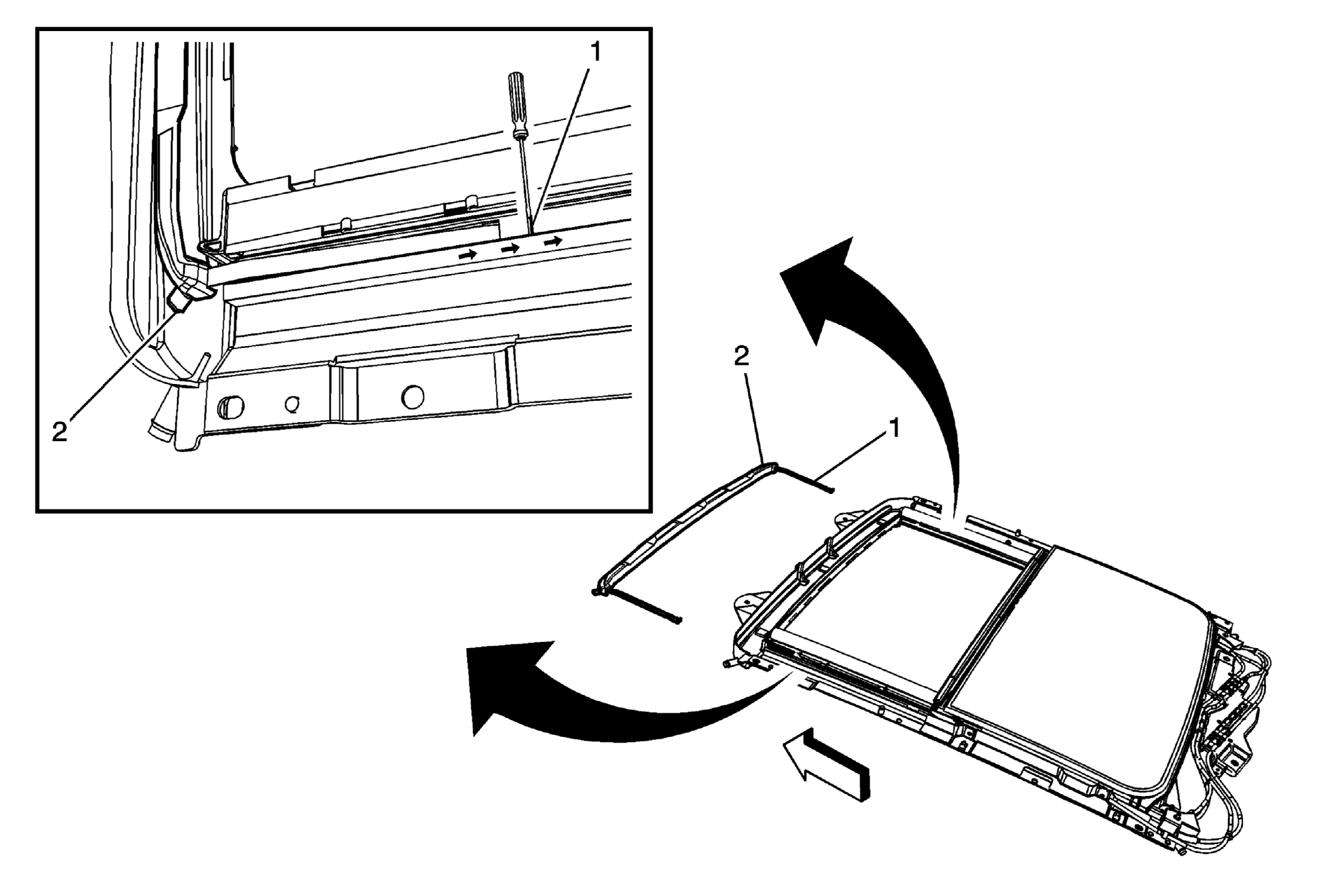

Fig 1: Sunroof Air Deflector Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Air Deflector Support Procedure Cycle the sunroof window to the fully open position. Using a suitable tool push down on the left or right of the air deflector support hooks. This will release the hooks from the left/right sides of the module. Swing the air deflector (2) in a vertical position, slide rearward, in order to disengage the air deflector from the hooks (1). Remove the sunroof air deflector module.
2	Sunroof Air Deflector

Callout

Component Name

Sunroof Air Deflector Support

Procedure

Cycle the sunroof window to the fully open position.
Using a suitable tool push down on the left or right of the air deflector support hooks. This will release the hooks from the left/right sides of the module.
Swing the air deflector (2) in a vertical position, slide rearward, in order to disengage the air deflector from the hooks (1).
Remove the sunroof air deflector module.

Sunroof Air Deflector
