Horn Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

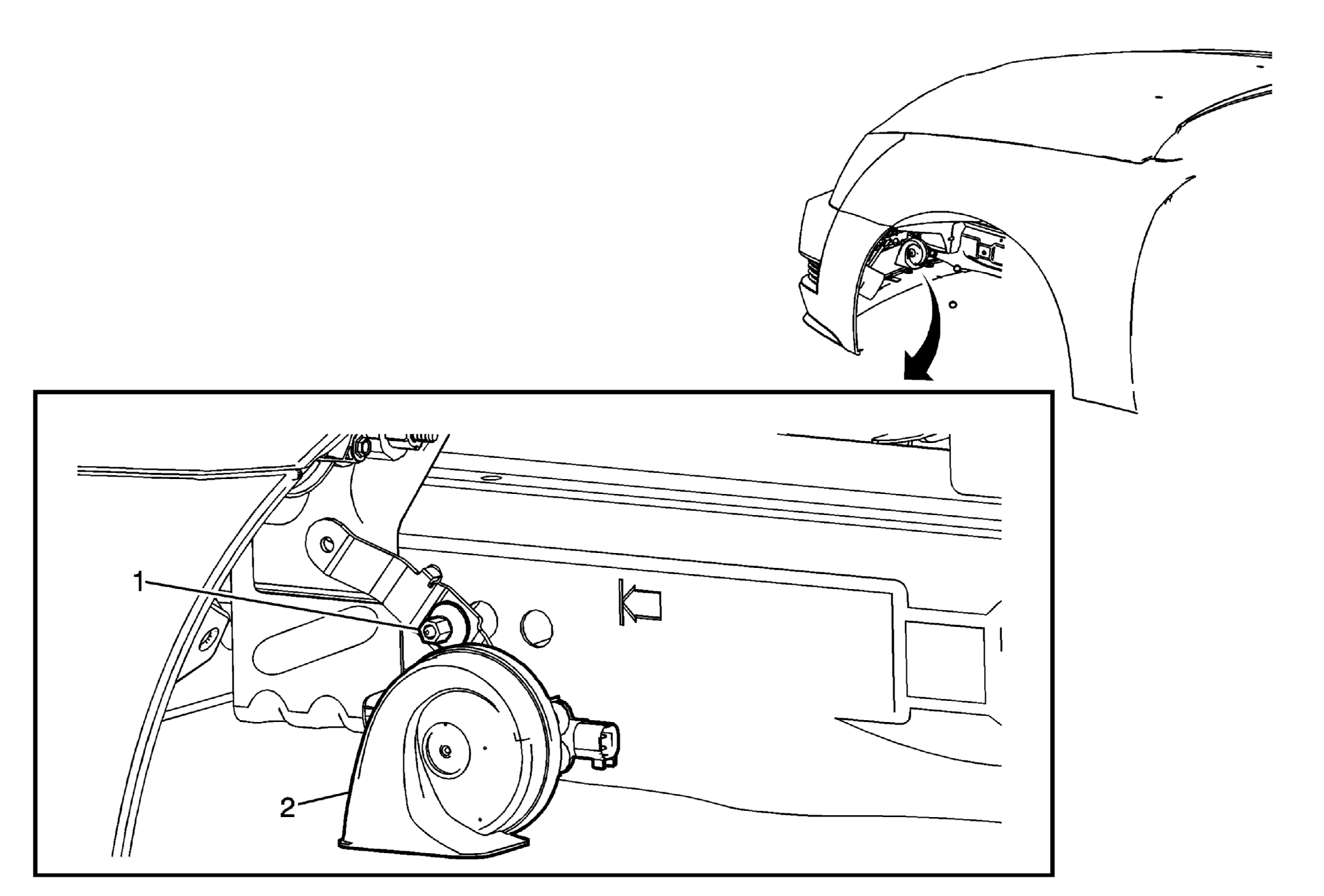

Fig 1: View of Horn Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Horn Bolt NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Horn Procedure: Disconnect the electrical connector.
