Wheels/Vehicle Underbody Component Views
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

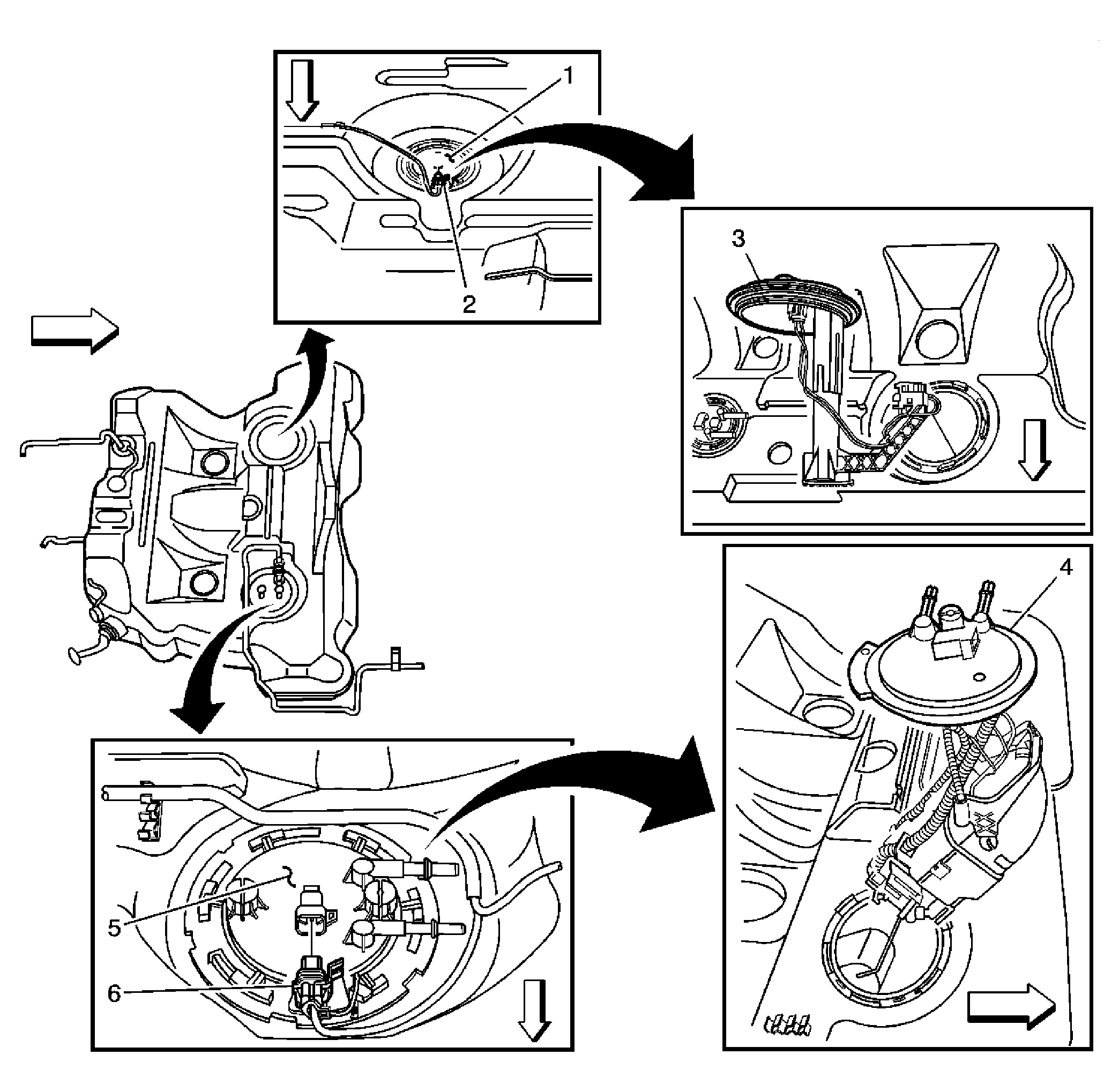

| Callout |
Component Name |
| 1 |
Secondary Fuel Sender Assembly |
| 2 |
Secondary Fuel Sender Assembly Connector |
| 3 |
Secondary Fuel Sender Assembly (Removed from Fuel Tank) |
| 4 |
Fuel Pump and Sender Assembly (Removed from Fuel Tank) |
| 5 |
Fuel Pump and Sender Assembly |
| 6 |
Fuel Pump and Sender Assembly Connector |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 |
| 2 |
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 |
| 3 |
Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 |
| 4 |
Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 |
