Luggage Compartment/Rear of Vehicle Component Views

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

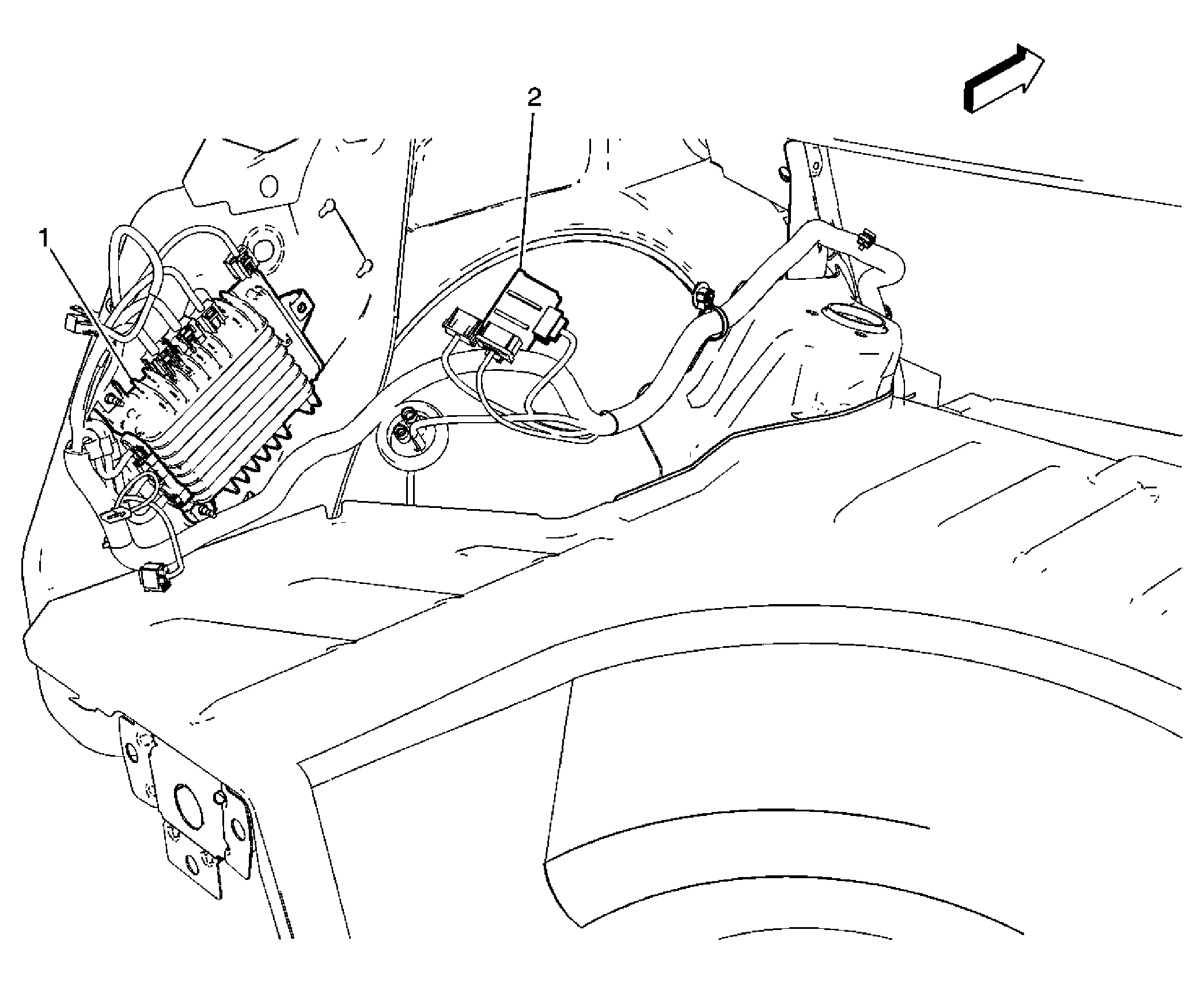

Fig 1: View Of Left Rear Luggage Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Audio Amplifier
2	Tire Pressure Monitor (TPM) Module (UH3)

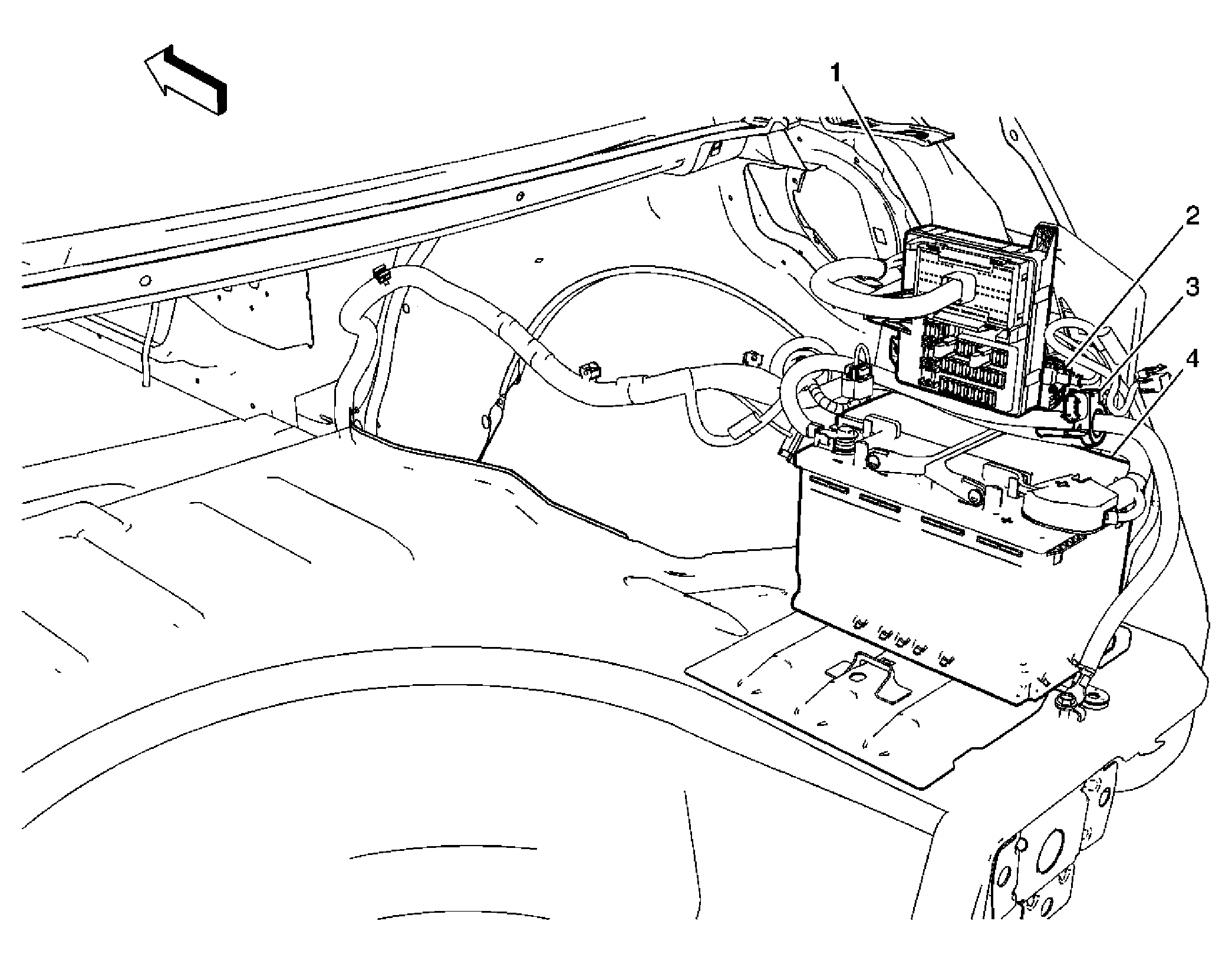

Fig 2: View Of Right Rear Luggage Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Rear
2	Fuel Door Release Actuator (N08/UA2)
3	Battery Current Sensor
4	Battery

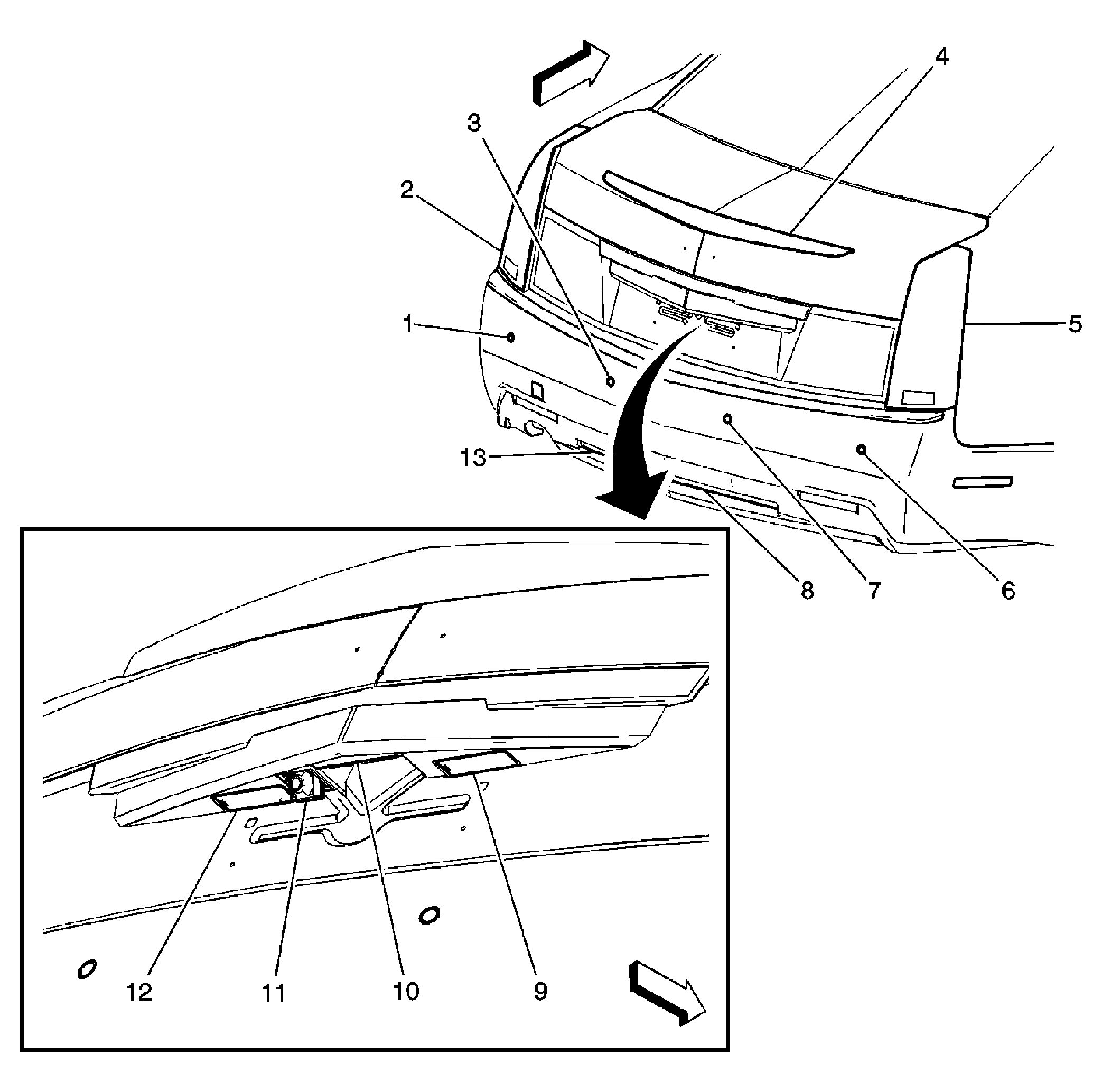

Fig 3: View Of Rear Fascia

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Object Sensor - Left Rear Corner (UD7)
2	Tail Lamp - Left
3	Object Sensor - Left Rear Middle (UD7)
4	Center High Mounted Stop Lamp (CHMSL)
5	Tail Lamp - Right
6	Object Sensor - Right Rear Corner (UD7)
7	Object Sensor - Right Rear Middle (UD7)
8	Fog Lamp - Right Rear (T79)
9	License Lamp - Right
10	Rear Compartment Lid Release Latch
11	Rearview Camera
12	License Lamp - Left
13	Fog Lamp - Left Rear (T79)
