Fuse Block - Underhood X1
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

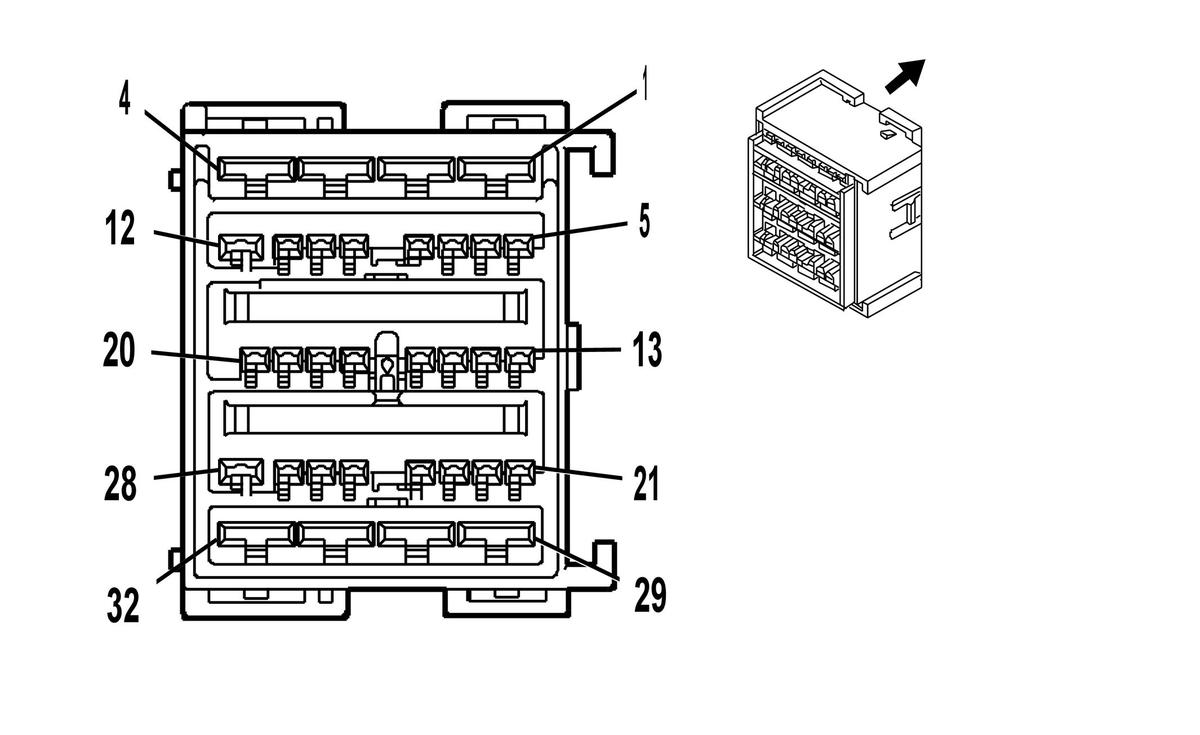

Fuse Block - Underhood X1
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | 3 GY | 532 | Cooling Fan Motor Supply Voltage |
| 2-3 | - | - | Not Used |
| 4 | 3 BK | 250 | Ground |
| 5 | - | - | Not Used |
| 6 | 0.5 OG | 2140 | Battery Positive Voltage (TT6/TT7/TT8/TR7) |
| 7 | 0.8 D-GN | 1329 | Horn Fuse Supply Voltage |
| 8 | 0.35 D-BU/WH | 1315 | Right Front Turn Signal Lamp Supply Voltage/Right Turn Signal Indicator Lamp Supply Voltage |
| 9 | 0.35 D-BU | 5364 | Left DRL/Turn Supply Voltage (TT6/TT7/TT8) |
| 9 | 0.5 GY | 589 | DRL Resistor Supply Voltage (-TT6/TT7/TT8) |
| 10 | 0.35 L-BU/WH | 1314 | Left Front Turn Signal Lamp Supply Voltage/Left Turn Signal Indicator Lamp Supply Voltage |
| 11-13 | - | - | Not Used |
| 14 | 0.5 TN/WH | 312 | Right Headlamp Low Beam Supply Voltage (-TT6/TT7/TT8) |
| 15 | 0.5 PU | 34 | Roof Off-Road Lamps Supply Voltage 2 (T96) |
| 16 | 0.35 D-GN | 5365 | Right DRL/Turn Supply Voltage (TT6/TT7/TT8) |
| 17 | 0.5 YE | 712 | Left Headlamp Low Beam Supply Voltage (-TT6/TT7/TT8) |
| 18 | 0.35 L-GN/BK | 311 | Right Headlamp High Beam Supply Voltage |
| 19 | - | - | Not Used |
| 20 | 0.35 D-GN/WH | 711 | Left Headlamp High Beam Supply Voltage |
| 21 | 1 TN/WH | 312 | Right Headlamp Low Beam Supply Voltage (TT6/TT7/TT8) |
| 22 | 1 YE | 712 | Left Headlamp Low Beam Supply Voltage (TT6/TT7/TT8) |
| 22 | 0.5 GY | 589 | DRL Resistor Supply Voltage (-TT6/TT7/TT8) |
| 23 | 0.5 PU | 34 | Roof Off-Road Lamps Supply Voltage 2 (T96) |
| 24 | - | - | Not Used |
| 25 | 0.5 BK | 250 | Ground |
| 26-28 | - | - | Not Used |
| 29 | 3 WH | 504 | Cooling Fan Low Reference |
| 30-31 | - | - | Not Used |
| 32 | 3 L-BU | 409 | Cooling Fan Motor Supply Voltage |
Connector Part Information
|
Terminal Part Information
|
