Keyless Entry Antenna - Active (UHA/UHF)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

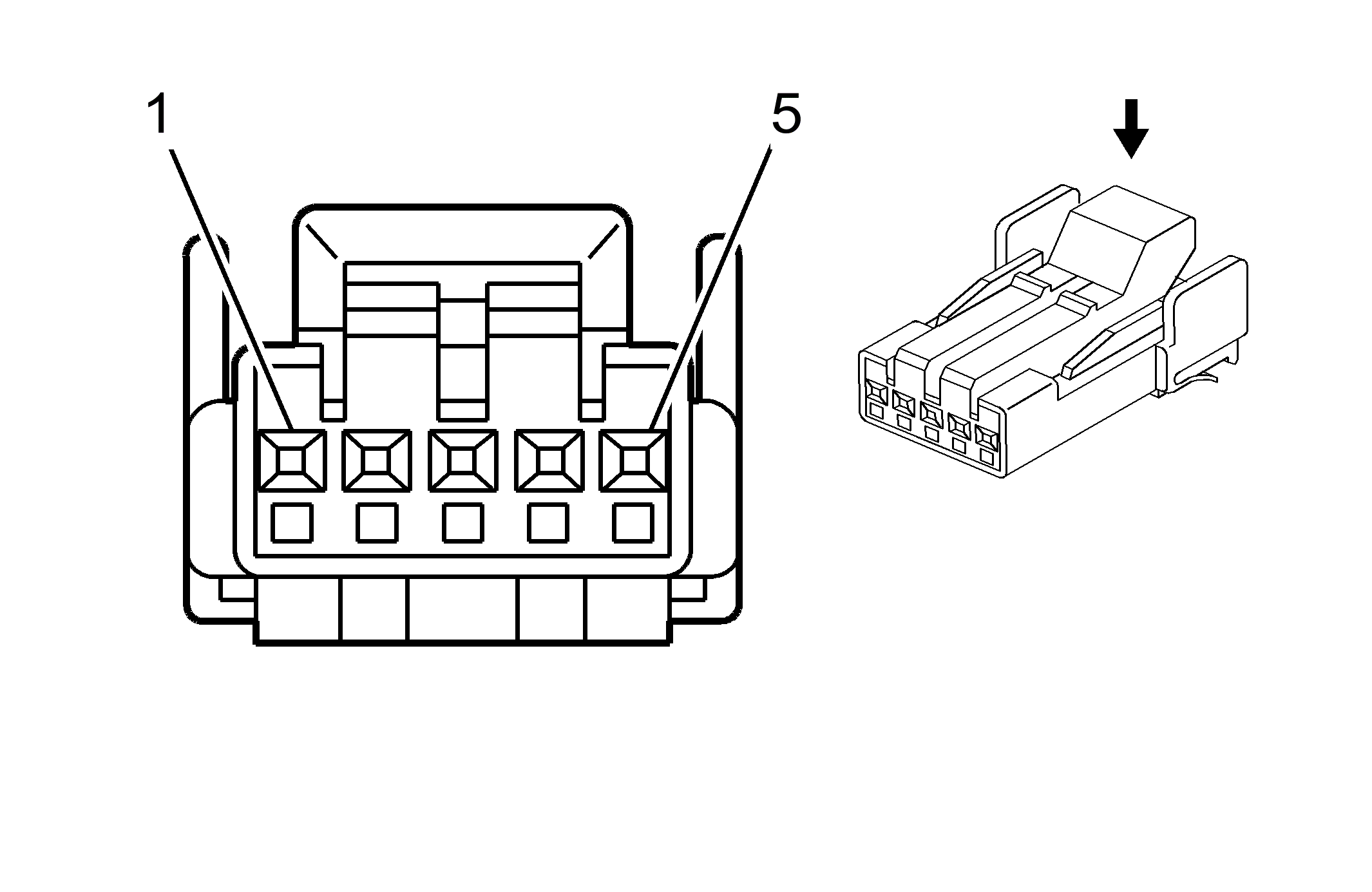

Fig 1: Keyless Entry Antenna - Active (UHA/UHF) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	-	-	Not Used
2	0.35 PU/WH	5715	Keyless Entry Active Antenna Supply Voltage
3	0.35 GY	5717	Keyless Entry Active Antenna Data Signal
4	0.35 L-BU	5716	Keyless Entry Active Antenna Clock Signal
5	0.35 OG/BK	5718	Keyless Entry Active Antenna Low Reference

Connector Part Information

OEM: IL-AG5-5S-S3C9
Service: See Catalog
Description: 5-Way F (GY)

Terminal Part Information

Pins: 2-5
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
