Headlamp Actuator - Right (TT6/TT7/TT8)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

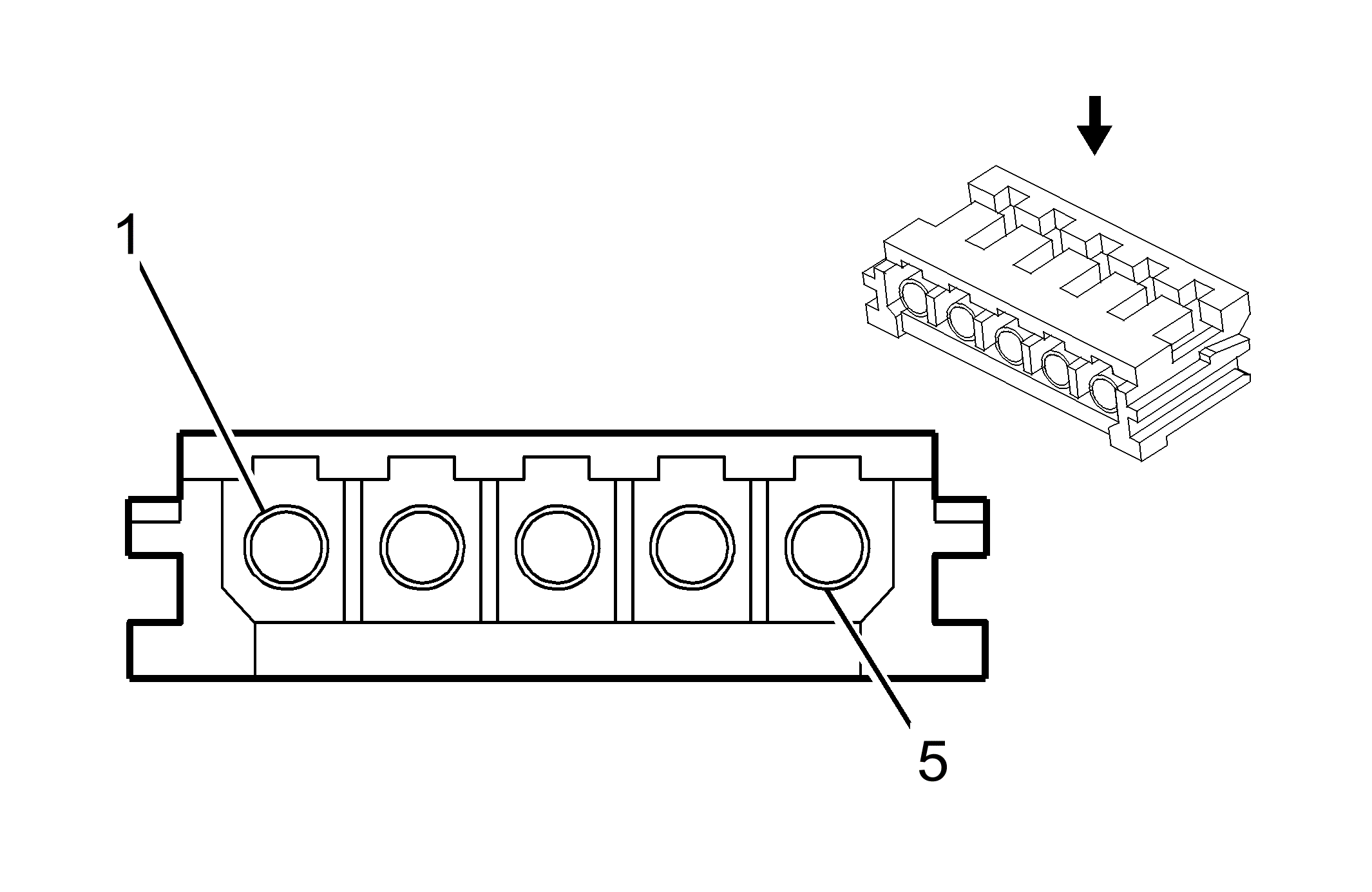

Fig 1: Headlamp Actuator - Right (TT6/TT7/TT8) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 OG	7133	Right Front Headlamp Adaptive Forward Lighting System (AFS) Motor Signal 1 (-TR7)
2	0.35 TN	7135	Right Front Headlamp Adaptive Forward Lighting System (AFS) Motor Signal 3 (-TR7)
3	0.35 PK	7134	Right Front Headlamp Adaptive Forward Lighting System (AFS) Motor Signal 2 (-TR7)
4	0.35 YE	7136	Right Front Headlamp Adaptive Forward Lighting System (AFS) Motor Signal 4 (-TR7)
5	0.35 BK	714	Steering Wheel Module Force - High Control

Connector Part Information

OEM: EHR-5
Service: See Catalog
Description: 5-Way F (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
