Active Hood Hinge Actuator - Right (B3T)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

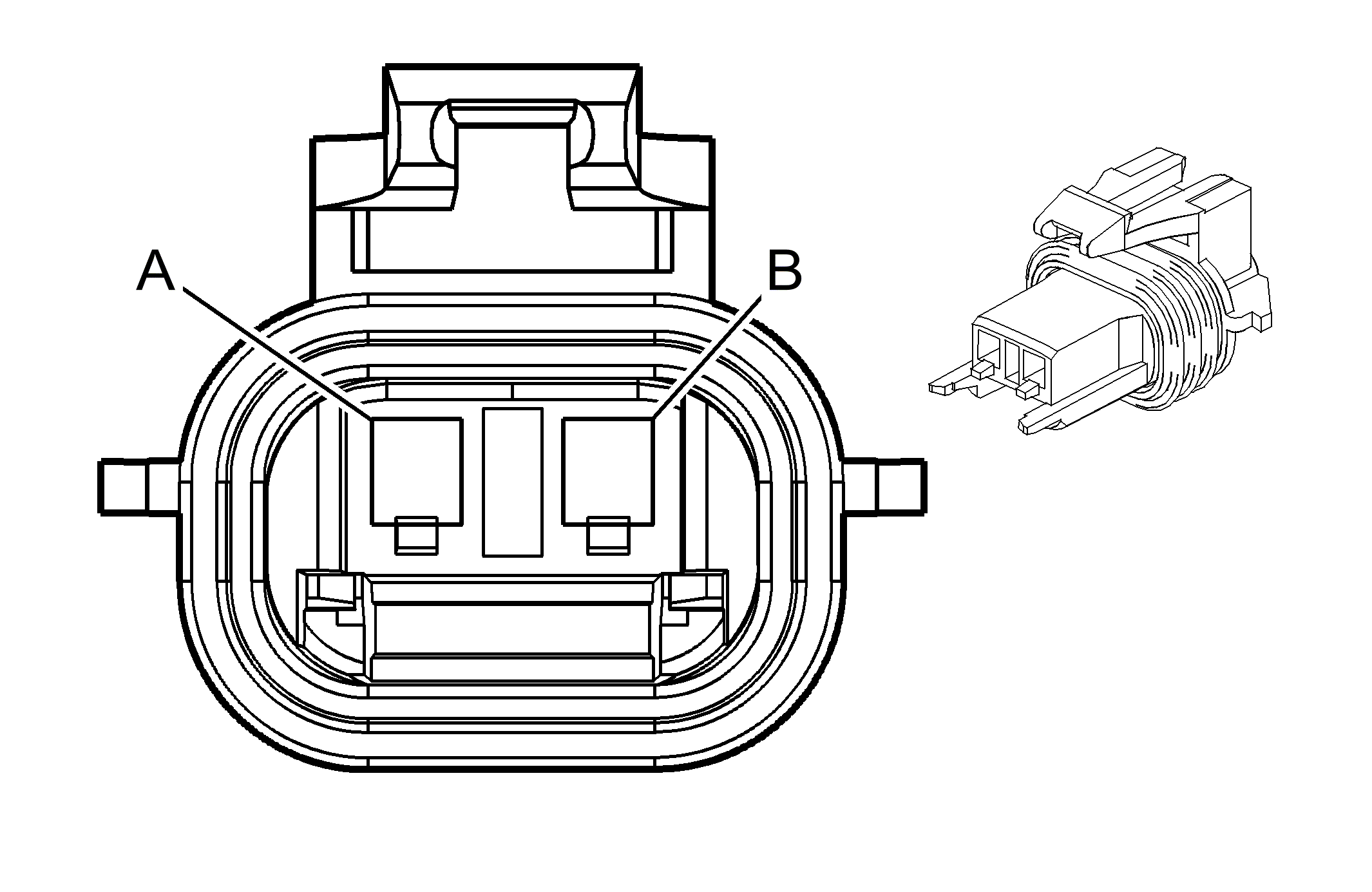

Fig 1: Active Hood Hinge Actuator - Right (B3T) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
A	0.35 PK	7490	Hood Actuator Hood High Reference
B	0.35 OG	7489	Actuator Hood Low Reference

Connector Part Information

OEM: 12191468
Service: See Catalog
Description: 2-Way F Metri-Pack 150 Sealed (YE)

Terminal Part Information

Terminal/Tray: 12160223/3
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-14 (GN)
