Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Auxiliary Pump Insulator Sleeves, Pump Insulators & Pump Electrical Harness Connector
    GM1919955Courtesy of GENERAL MOTORS CORP.
  1. Assemble the power brake booster pump sleeves (1) to the insulators (2).
  2. Install the power brake booster pump insulators.
  3. Position the power brake booster pump to the bracket and secure the electrical harness connector (3).
    4. NOTE: Refer to Fastener Notice .
    Fig 2: Identifying Auxiliary Pump Bolts & Nuts
    GM1919947Courtesy of GENERAL MOTORS CORP.
  4. Install the power brake booster pump bolts (1) and nuts (2).

    Tighten:  Tighten the bolts and nuts to 7 N.m (62 lb in).

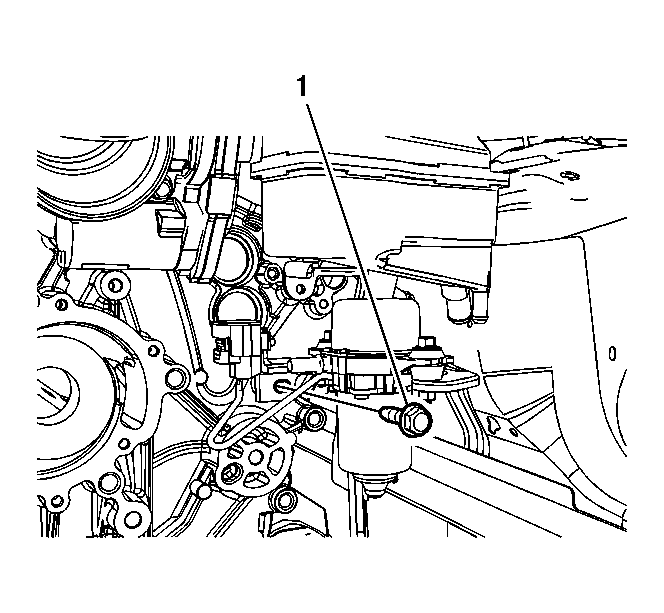

    5. Fig 3: Identifying Auxiliary Pump Bracket Bolt
    GM1919941Courtesy of GENERAL MOTORS CORP.
  5. Install the power brake booster pump to the engine.
  6. Install the power brake booster pump bracket bolt (1).

    Tighten:  Tighten the bolt to 22 N.m (16 lb ft).

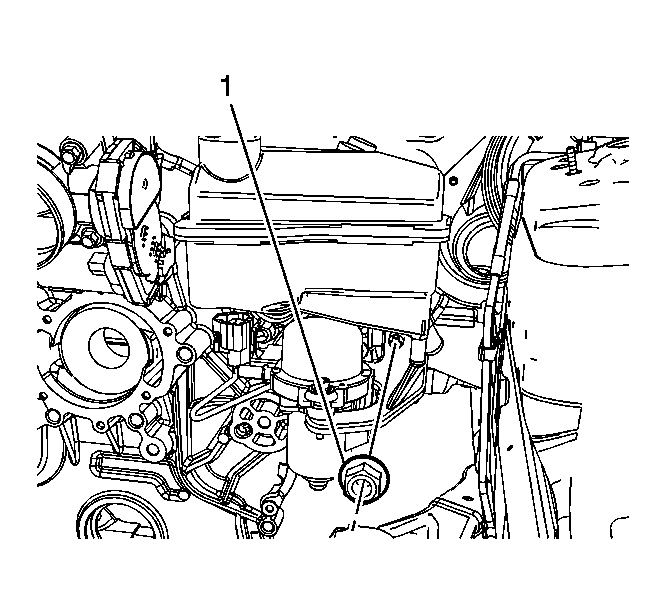

    7. Fig 4: View Of Auxiliary Pump Bracket Nut
    GM1919939Courtesy of GENERAL MOTORS CORP.
  7. Install the power brake booster pump bracket nut (1).

    Tighten:  Tighten the bolt to 70 N.m (52 lb ft).

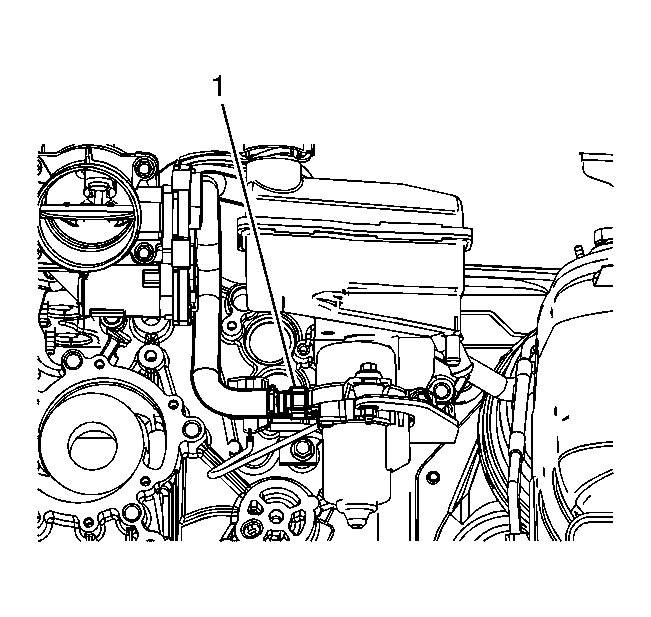

    8. Fig 5: Identifying Vacuum Brake Booster Hose Quick Connect
    GM1919936Courtesy of GENERAL MOTORS CORP.
  8. Connect the power brake booster pump electrical connector.
  9. Connect the power brake booster pump hose from the auxiliary pump.
  10. Install the power brake booster pump hose quick connect (1).
