Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to Brake Dust Caution .

CAUTION: Refer to Brake Fluid Irritant Caution .

NOTE: Refer to Brake Fluid Effects on Paint and Electrical Components Notice .

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .

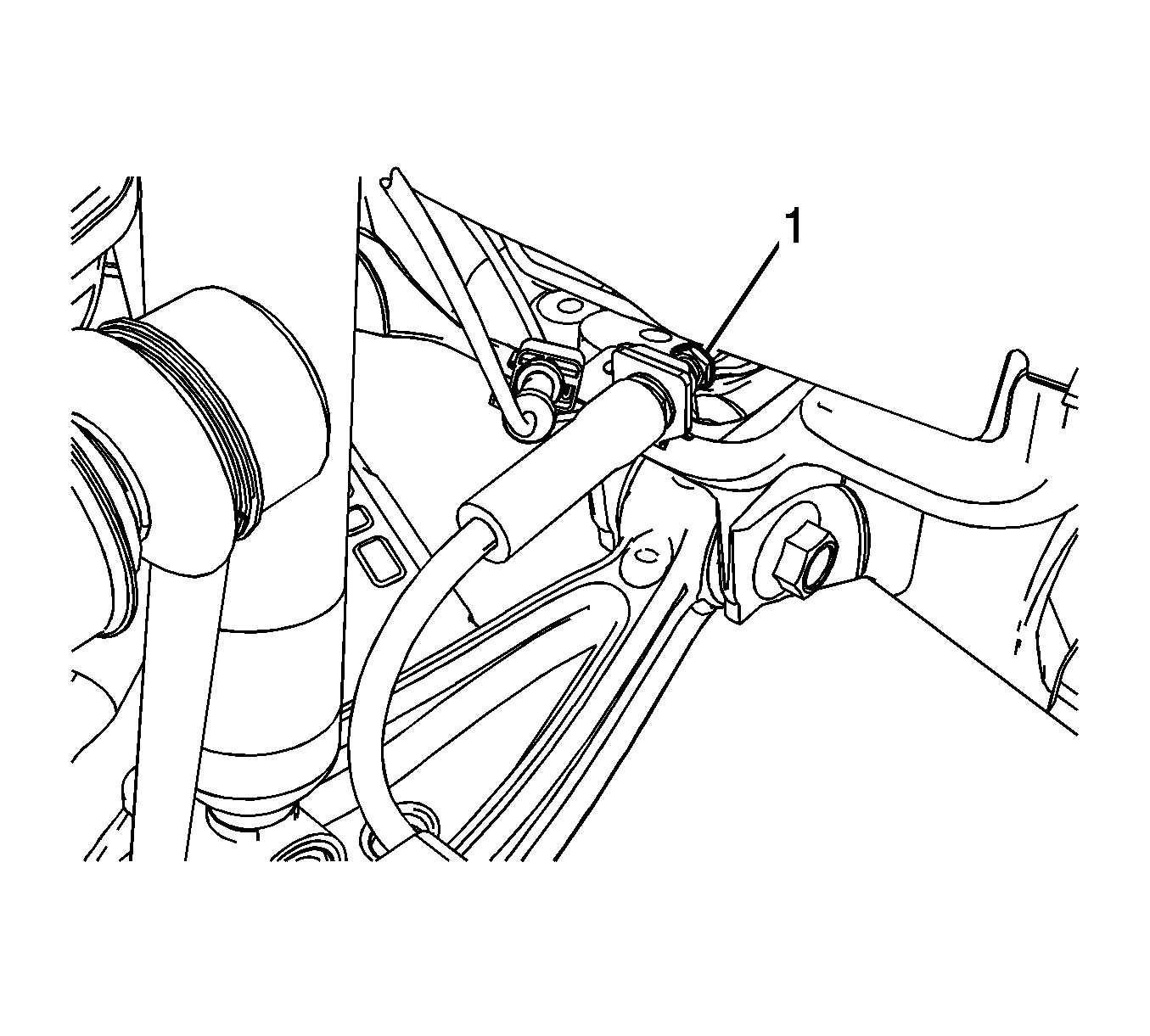

Fig 1: View Front Brake Pipe Fitting

Courtesy of GENERAL MOTORS CORP.

Disconnect the front brake pipe fitting (1).
Cap the brake pipe fitting to prevent brake fluid loss and contamination.

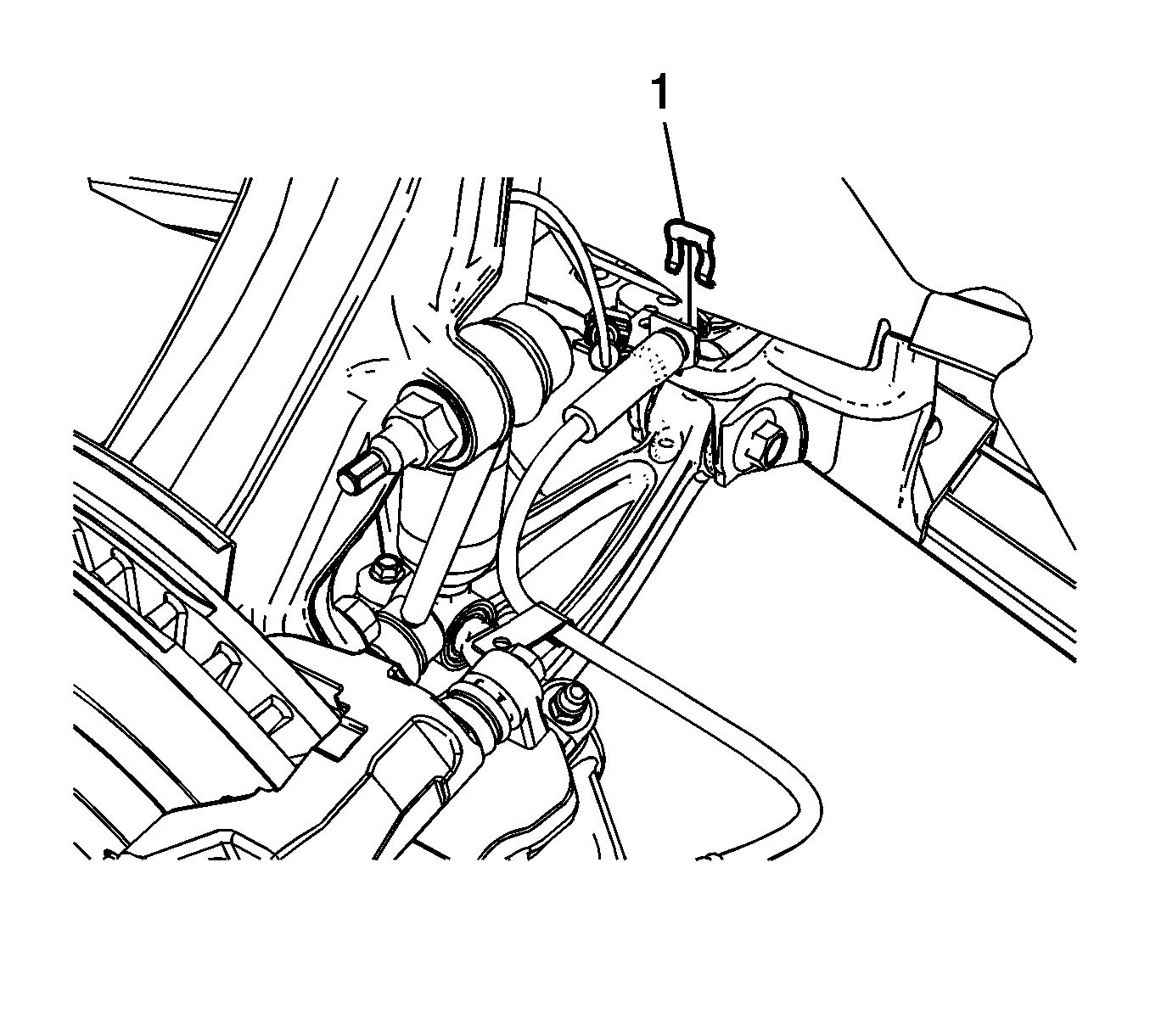

Fig 2: View of Front Brake Hose Retainer Clip

Courtesy of GENERAL MOTORS CORP.

Remove the front brake hose retainer clip (1).

Fig 3: View of Rear Lower Shock Module Bolt

Courtesy of GENERAL MOTORS CORP.

Remove the rear lower shock module bolt (1).

Fig 4: Identifying Brake Hose Fitting Bolt

Courtesy of GENERAL MOTORS CORP.

Remove the brake hose fitting bolt (1).
Remove the brake hose fitting gaskets (2) from the brake hose (3).
Discard the brake hose fitting gaskets.
Remove the brake hose.
