Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the vacuum brake booster. Refer to Power Vacuum Brake Booster Replacement .
  2. Without disconnecting the front park brake cable, remove the park brake pedal assembly and position aside. Refer to Parking Brake Lever Pedal Assembly Replacement .
  3. Without disconnecting the steering column from the intermediate shaft, lower and support the steering column. Refer to Steering Column Replacement .

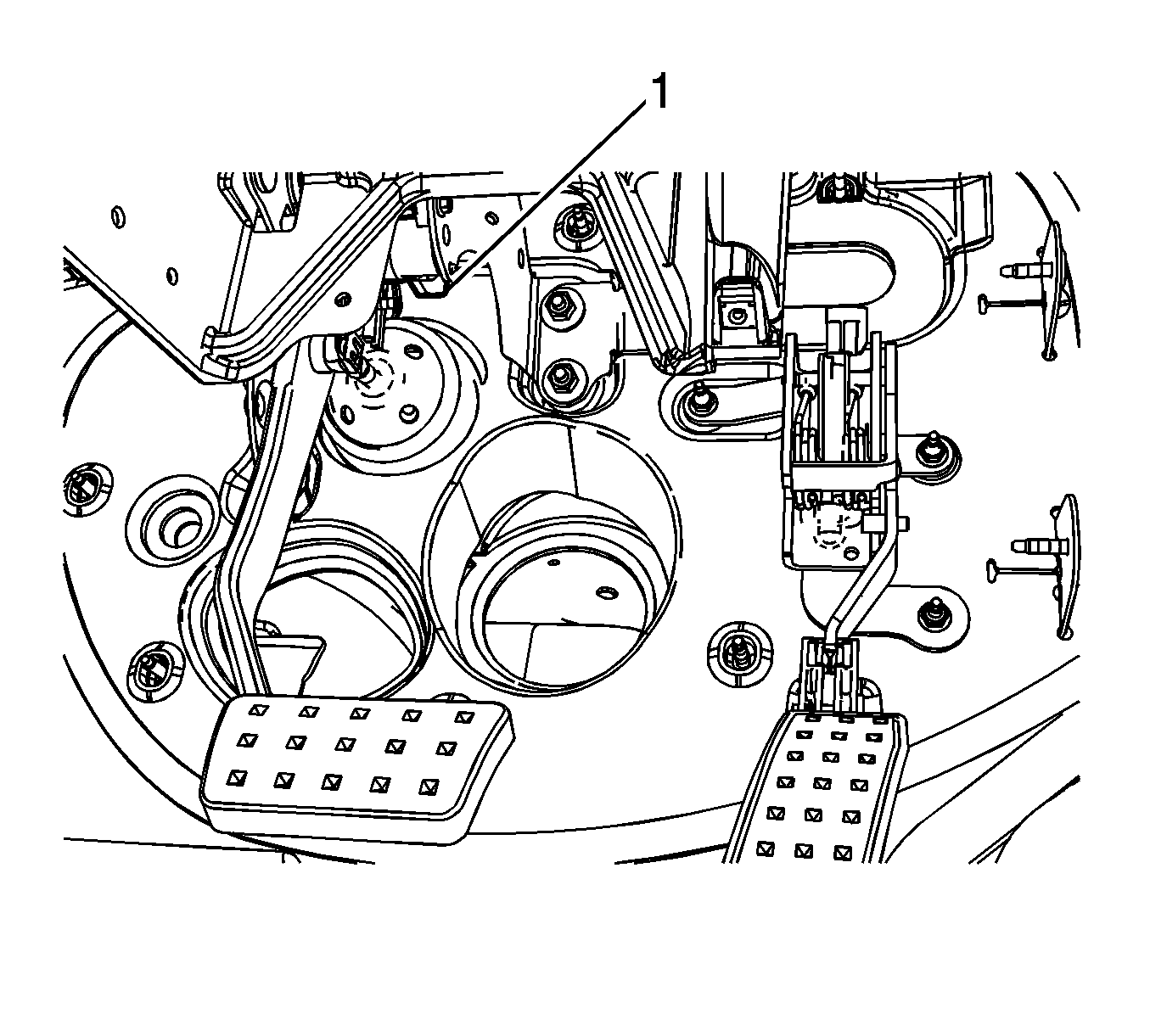

    4. Fig 1: Identifying Brake Pedal Position Sensor
    GM1919797Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the brake pedal position sensor (1) electrical connector.

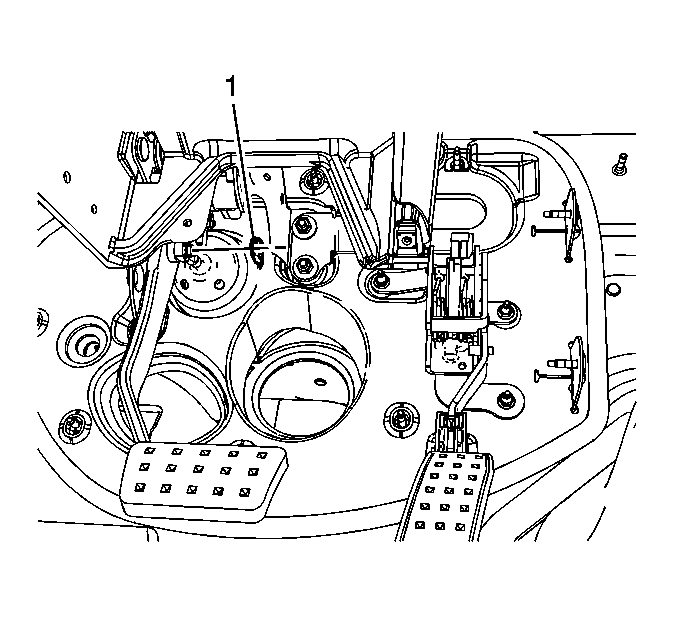

    5. Fig 2: Identifying Vacuum Brake Booster Pushrod Retaining Clip
    GM1919805Courtesy of GENERAL MOTORS CORP.
  5. Remove the vacuum brake booster pushrod nut (1).

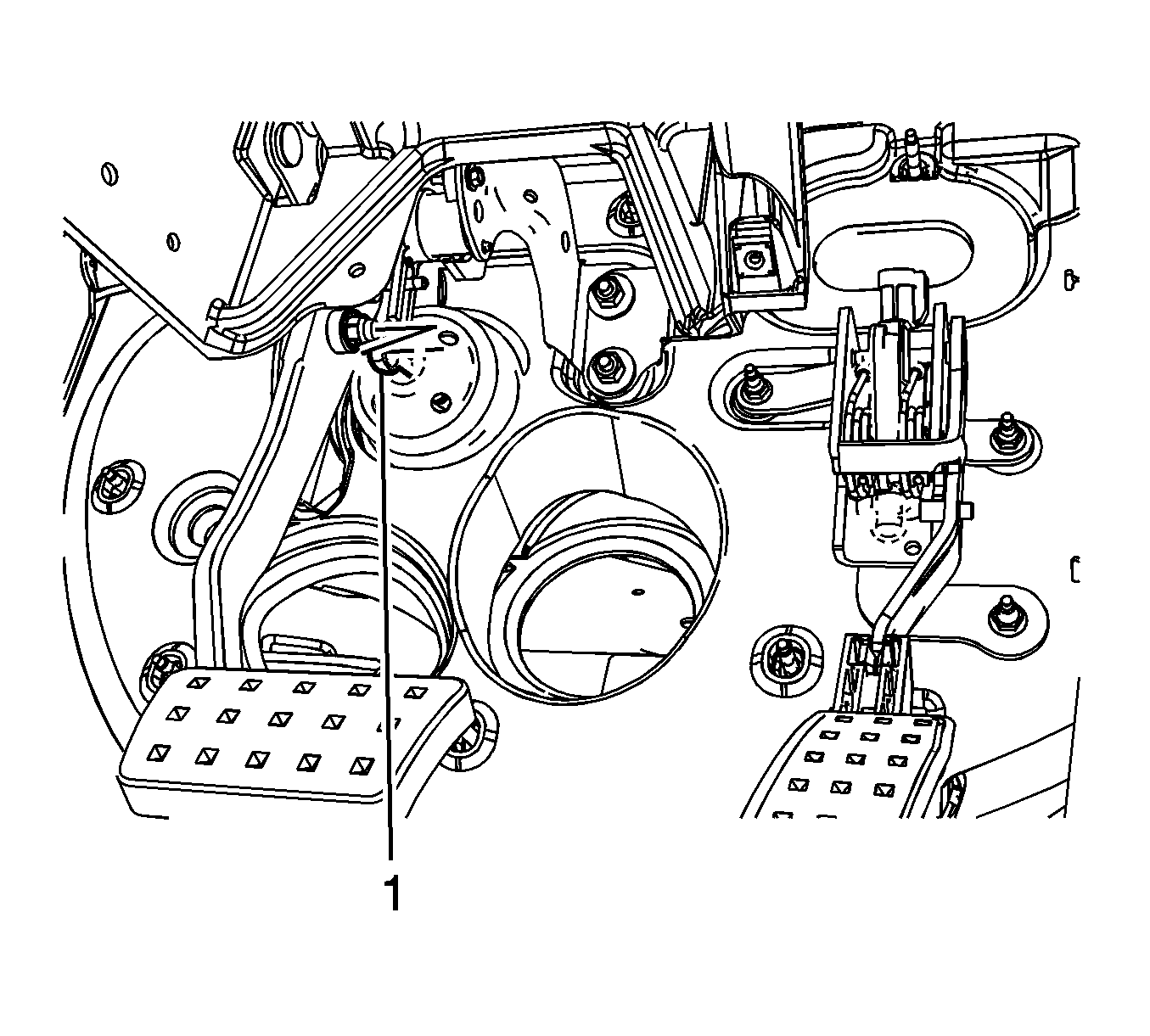

    6. Fig 3: View Of Vacuum Brake Booster Pushrod
    GM1919807Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the vacuum brake booster pushrod (1) from the brake pedal pivot.

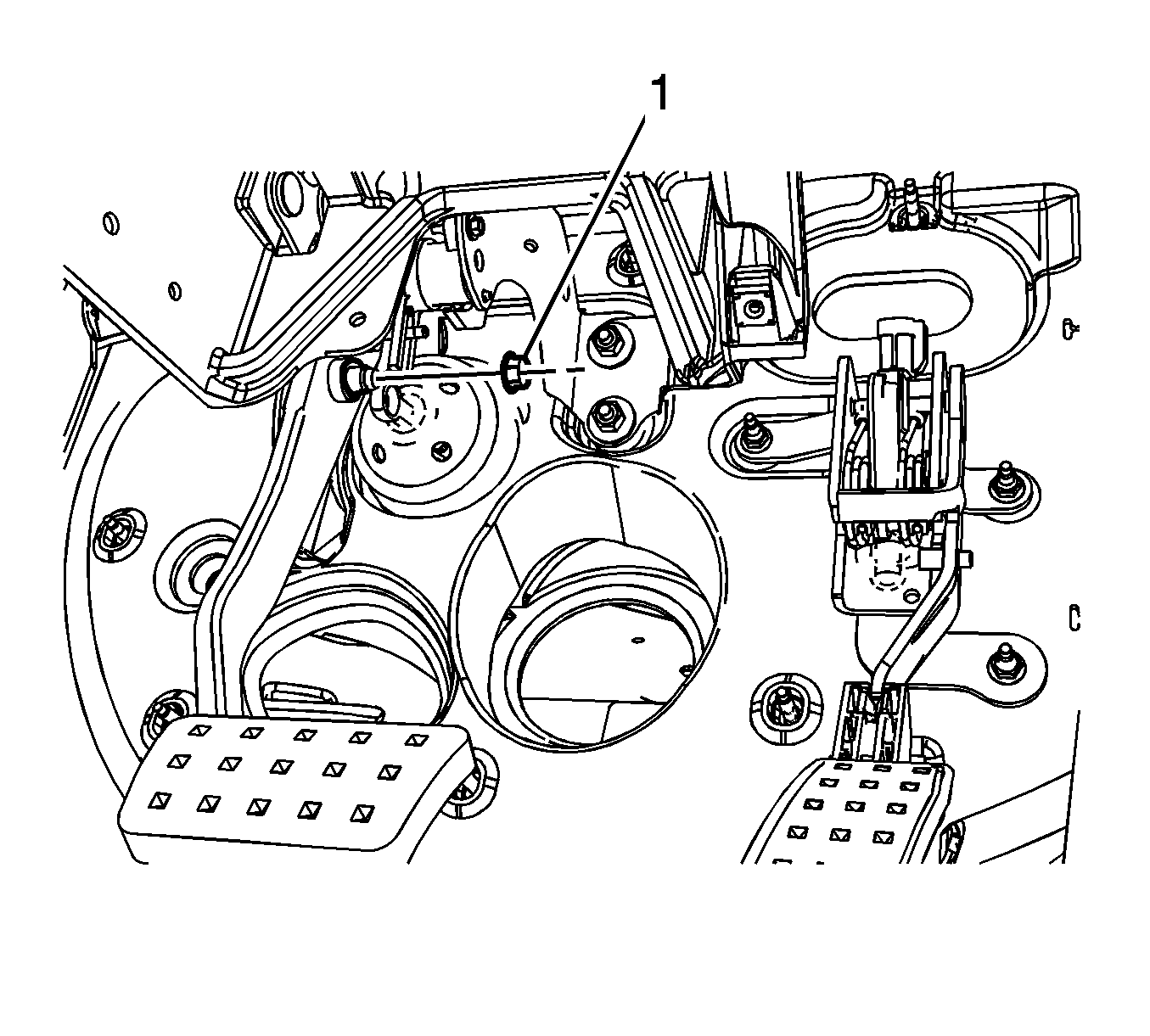

    7. Fig 4: View Of Vacuum Brake Booster Pushrod Bushing
    GM1919812Courtesy of GENERAL MOTORS CORP.
  7. Remove the vacuum brake booster pushrod bushing (1).

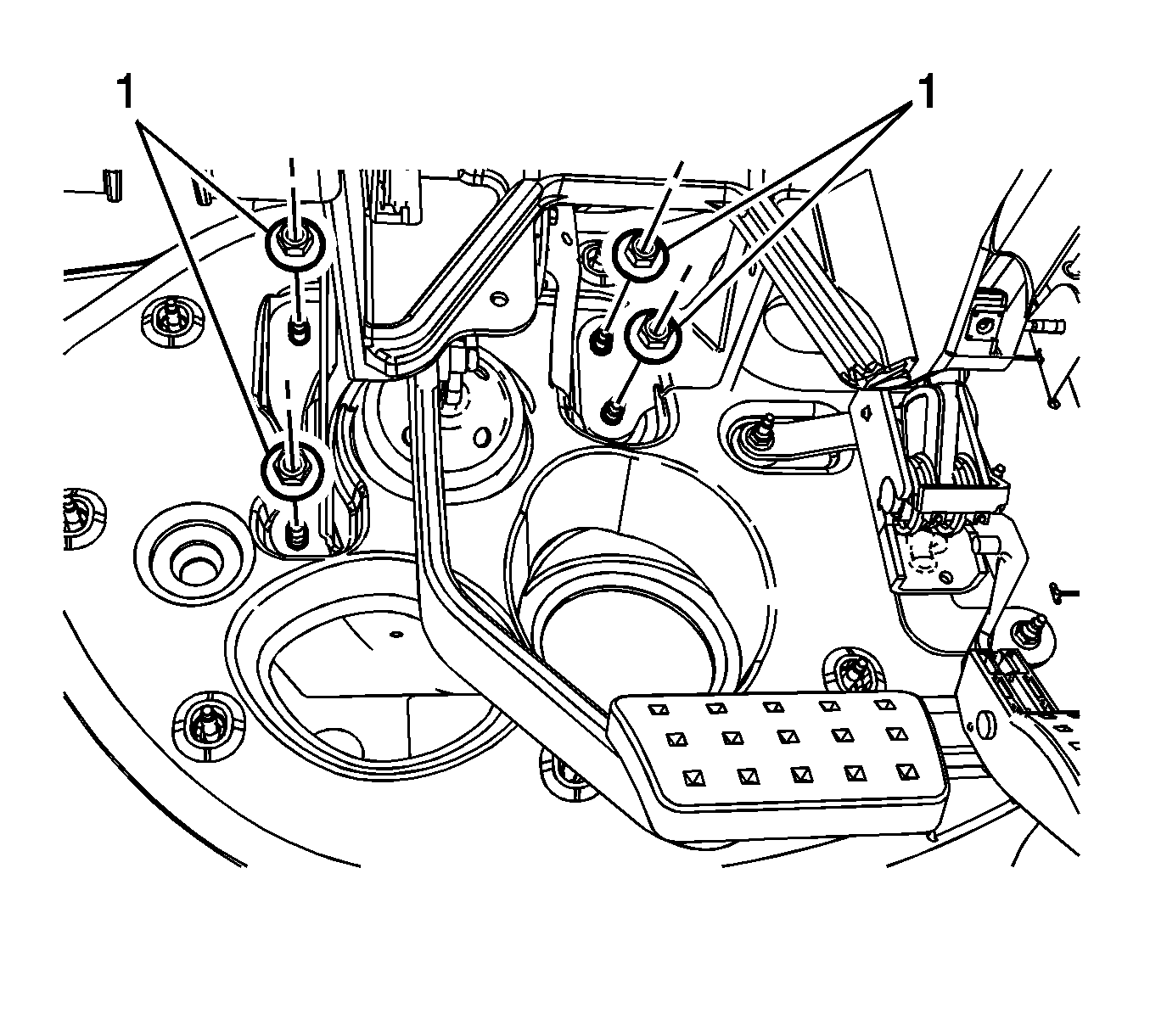

    8. Fig 5: Identifying Vacuum Brake Booster Bracket Nuts
    GM1919816Courtesy of GENERAL MOTORS CORP.
  8. Remove the vacuum brake booster bracket nuts (1).

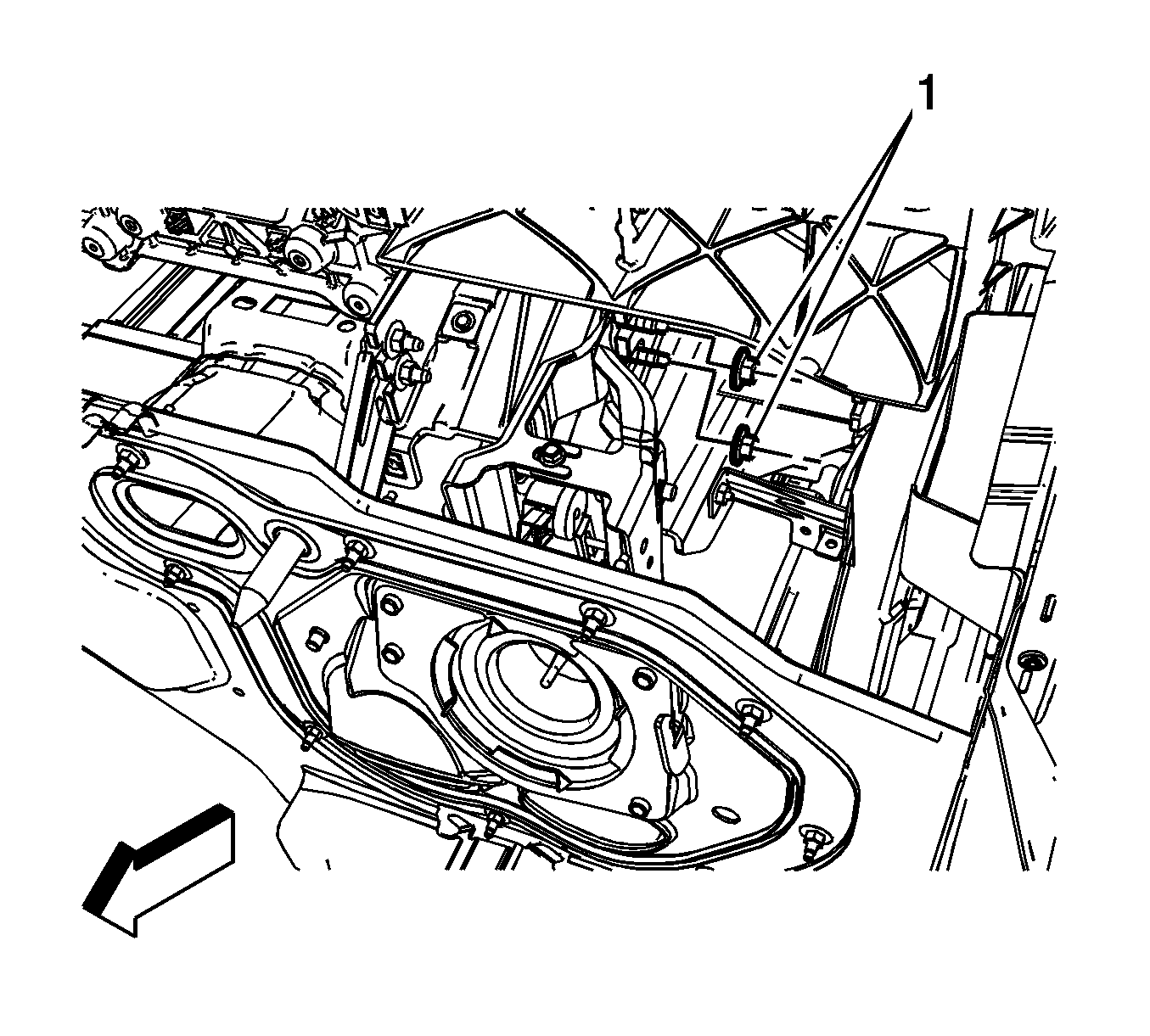

    9. Fig 6: Identifying Brake Pedal Bracket Nuts
    GM1970021Courtesy of GENERAL MOTORS CORP.
  9. Remove the brake pedal bracket nuts (1).

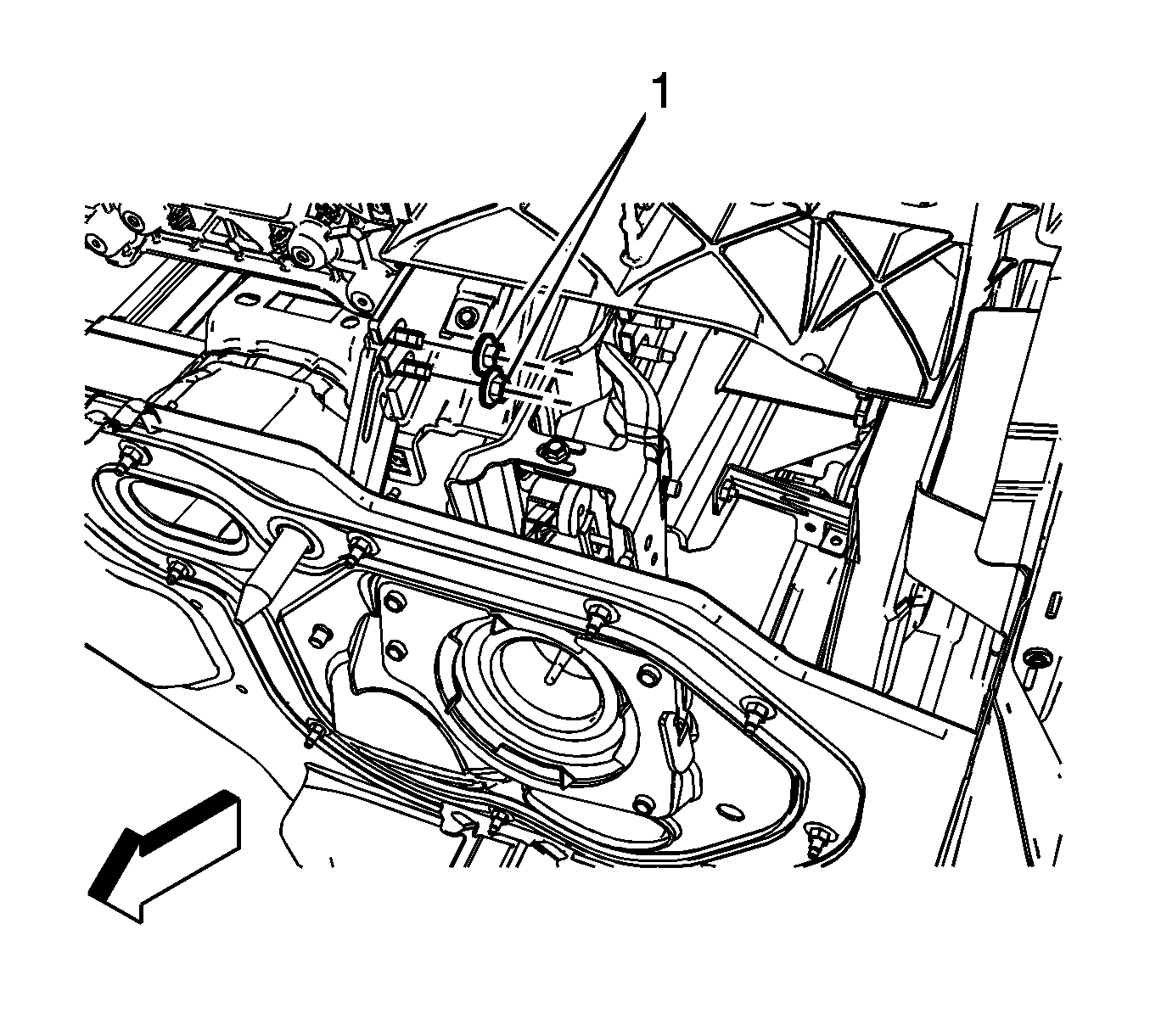

    10. Fig 7: Identifying Upper Steering Column Support Bracket Nuts
    GM1970022Courtesy of GENERAL MOTORS CORP.
  10. Remove the upper steering column support bracket nuts (1).

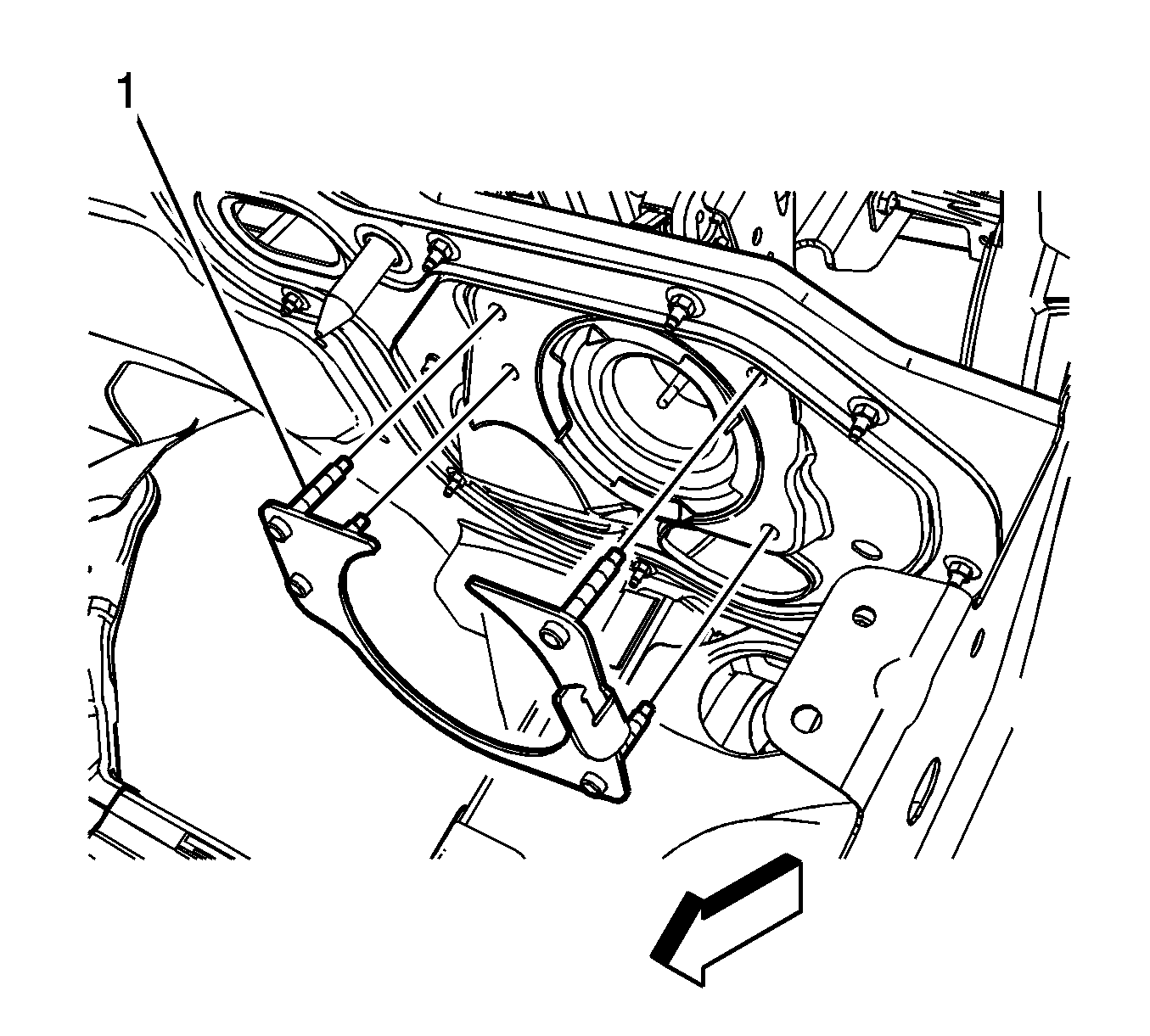

    11. Fig 8: View of Vacuum Brake Booster Bracket
    GM1970023Courtesy of GENERAL MOTORS CORP.
  11. Remove the vacuum brake booster bracket (1).

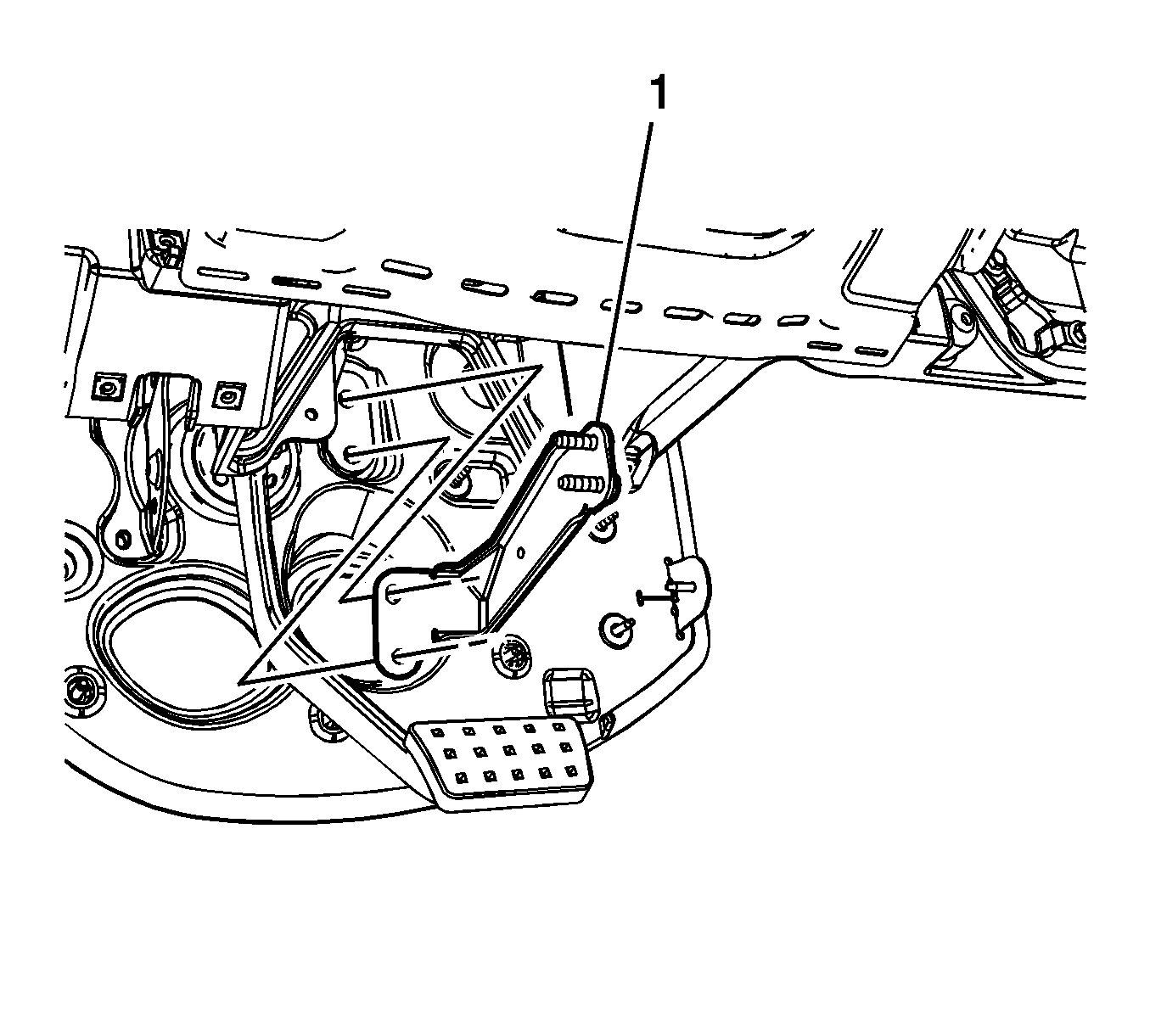

    12. Fig 9: Removing/Installing Steering Column Support Bracket
    GM1919839Courtesy of GENERAL MOTORS CORP.
  12. Remove the steering column support bracket (1).

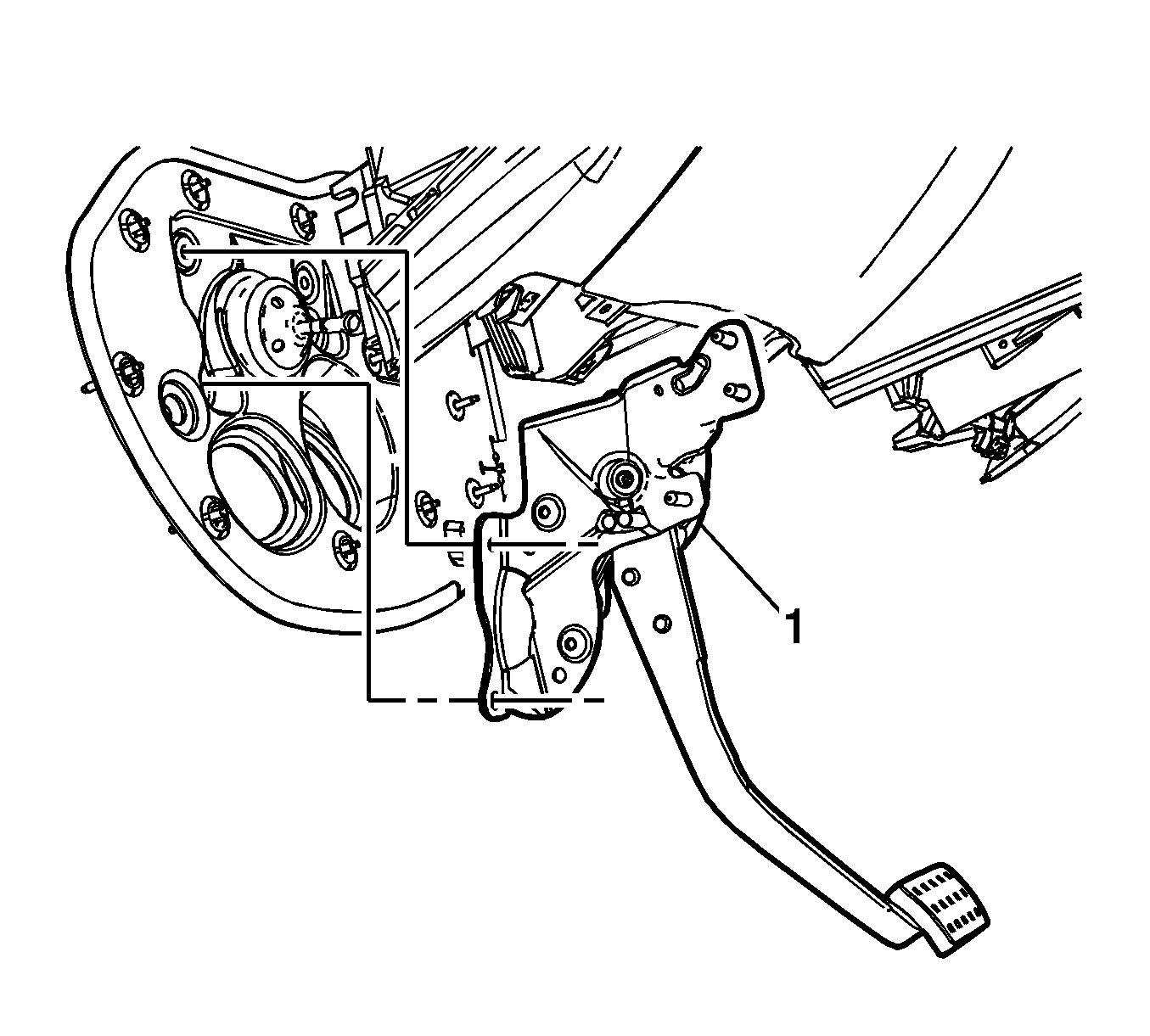

    13. Fig 10: Removing/Installing Brake Pedal Assembly
    GM1919858Courtesy of GENERAL MOTORS CORP.
  13. Remove the brake pedal assembly (1) from the vehicle.
