Ring Gear and Differential Housing Assemble

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

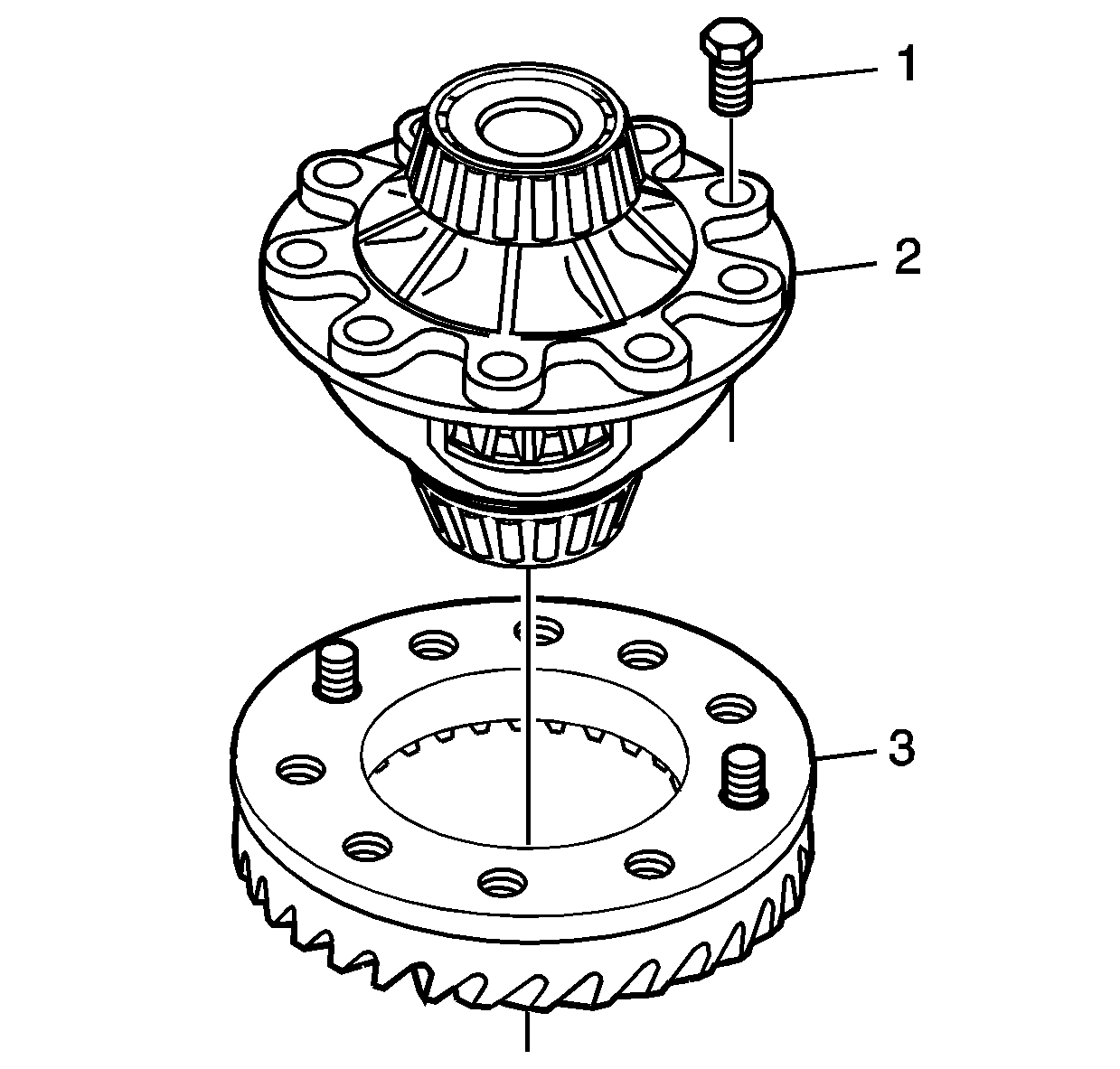

Fig 1: View of Ring Gear, Bolts and Differential Carrier

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the ring gear (2) onto the differential carrier (3).
Install the 10 NEW ring gear bolts (1) in order to align the gear to the hub.
Tighten: Tighten the 10 ring gear bolts slowly in a criss-cross pattern to 190 N.m (140 lb ft).
