Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the rear wheel drive shaft. Refer to Rear Propeller Shaft Replacement (RWD) or Rear Propeller Shaft Replacement (AWD) .

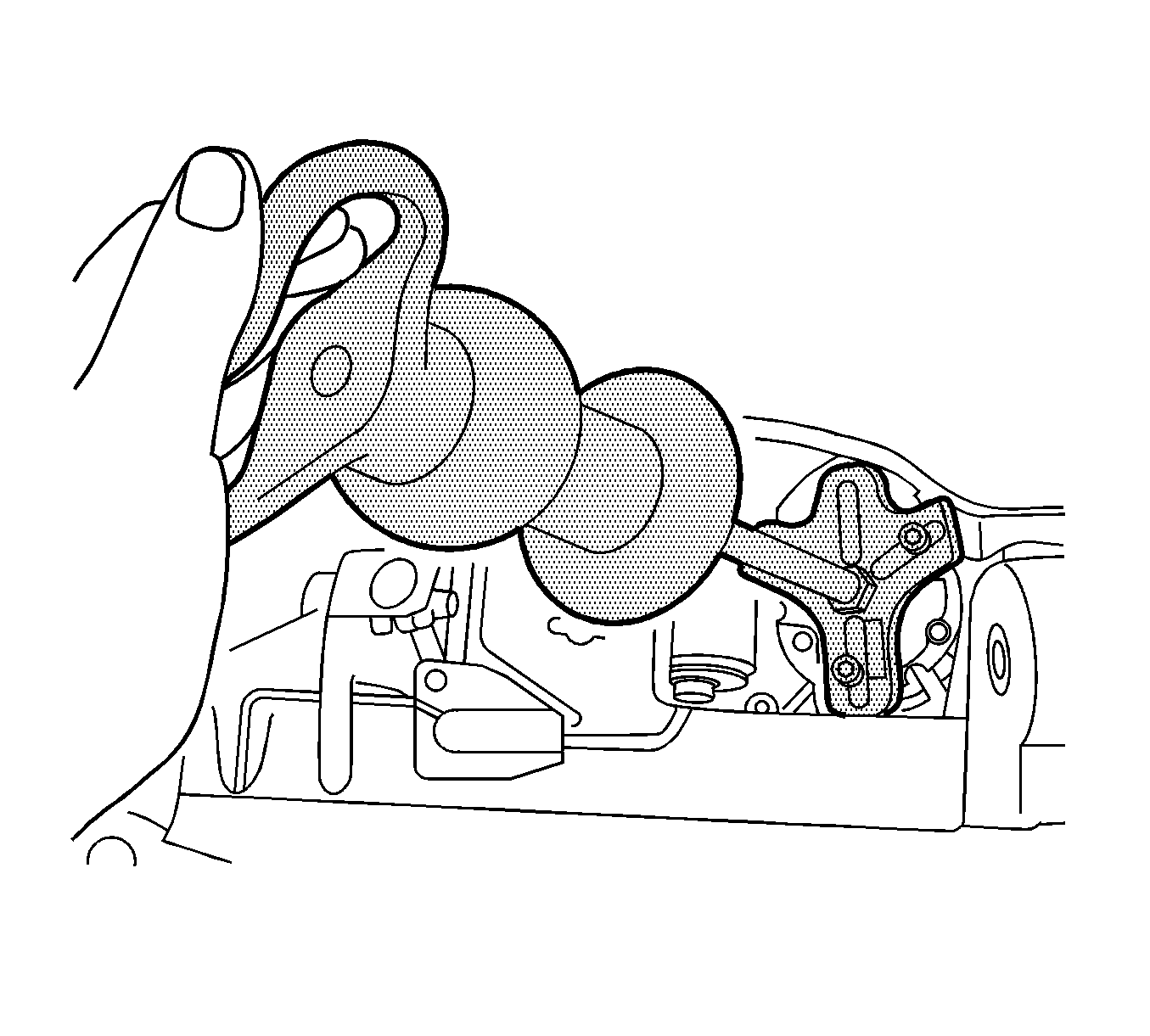

    3. Fig 1: View of Tool J 24420-C
    GM1973600Courtesy of GENERAL MOTORS CORP.
  3. Using the J 24420-C  and the J 2619-01  , remove the rear drive axle flange.

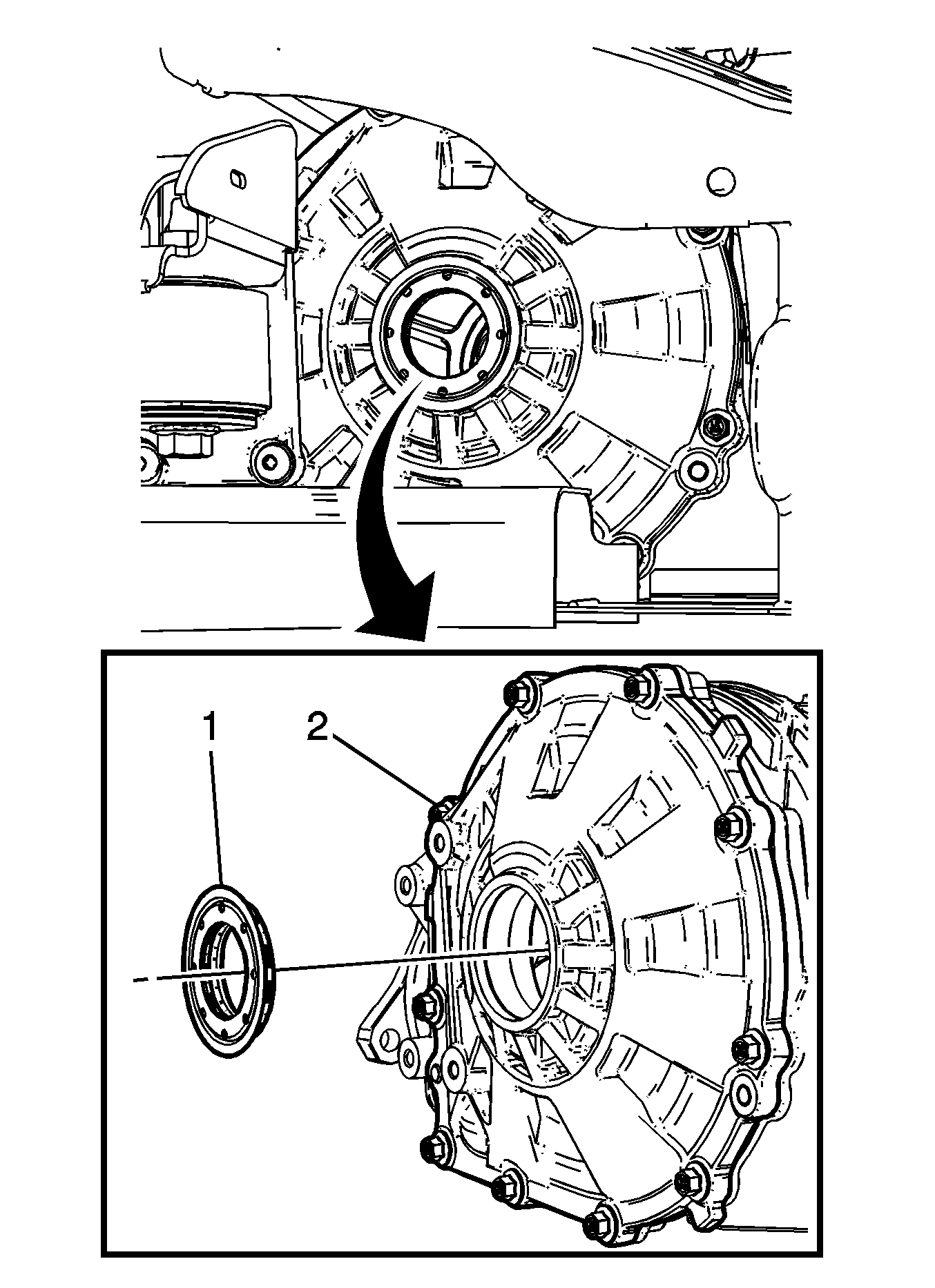

    4. Fig 2: View of Drive Axle Flange and Seal
    GM1979714Courtesy of GENERAL MOTORS CORP.
  4. Using a flat-bladed screwdriver, remove the drive axle flange axle seal (1) from the differential side cover (2).
