Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a small amount of clean 75W-90 synthetic gear lube, GM P/N 12378261 (Canadian P/N 10953455) to the sealing lips of the seal.

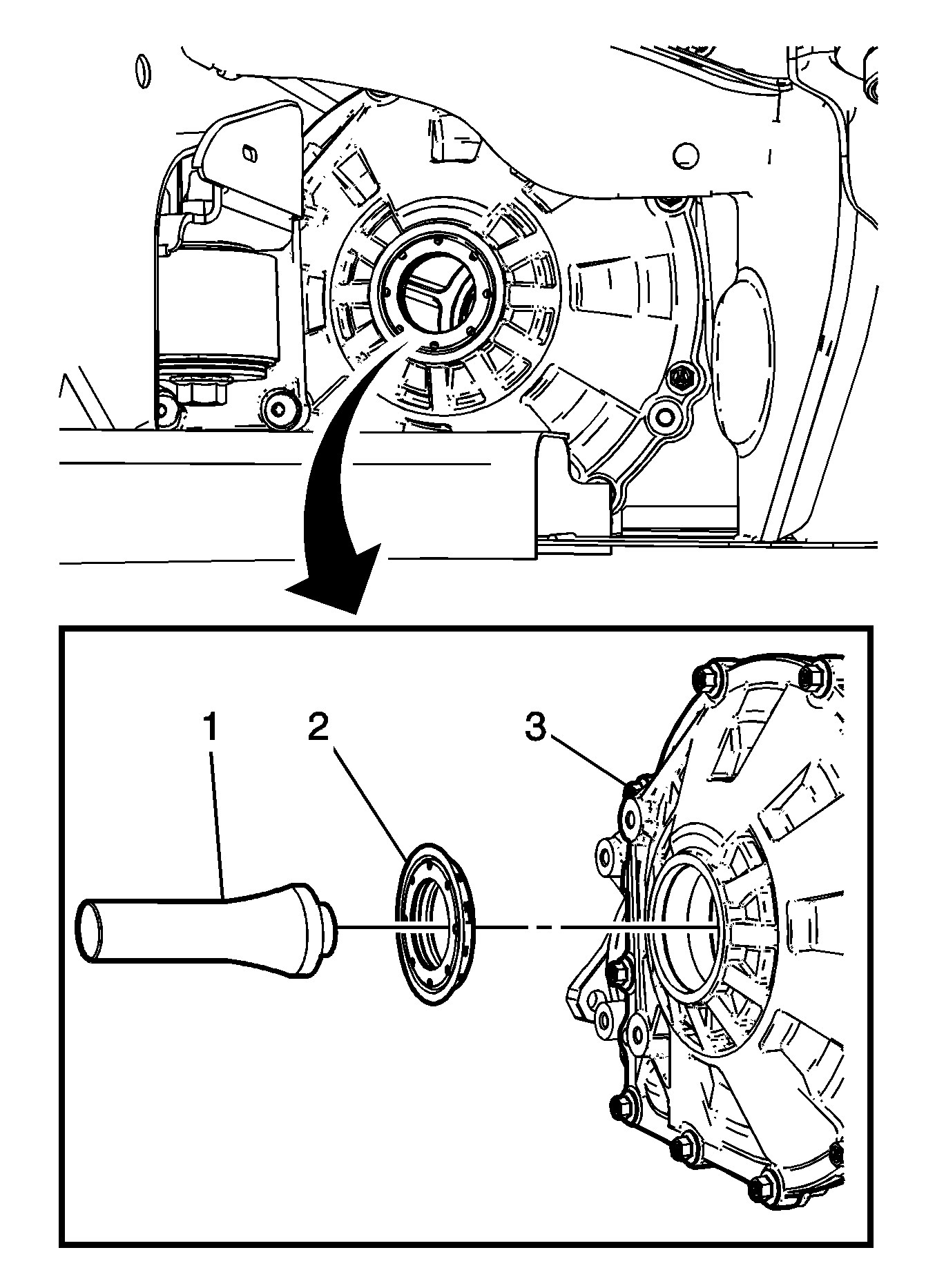

    2. Fig 1: View of Drive Axle Flange Seal
    GM1979737Courtesy of GENERAL MOTORS CORP.
  2. Using the J 45017  (1) and a hammer, install the drive axle flange seal (2) in the differential side cover (3).

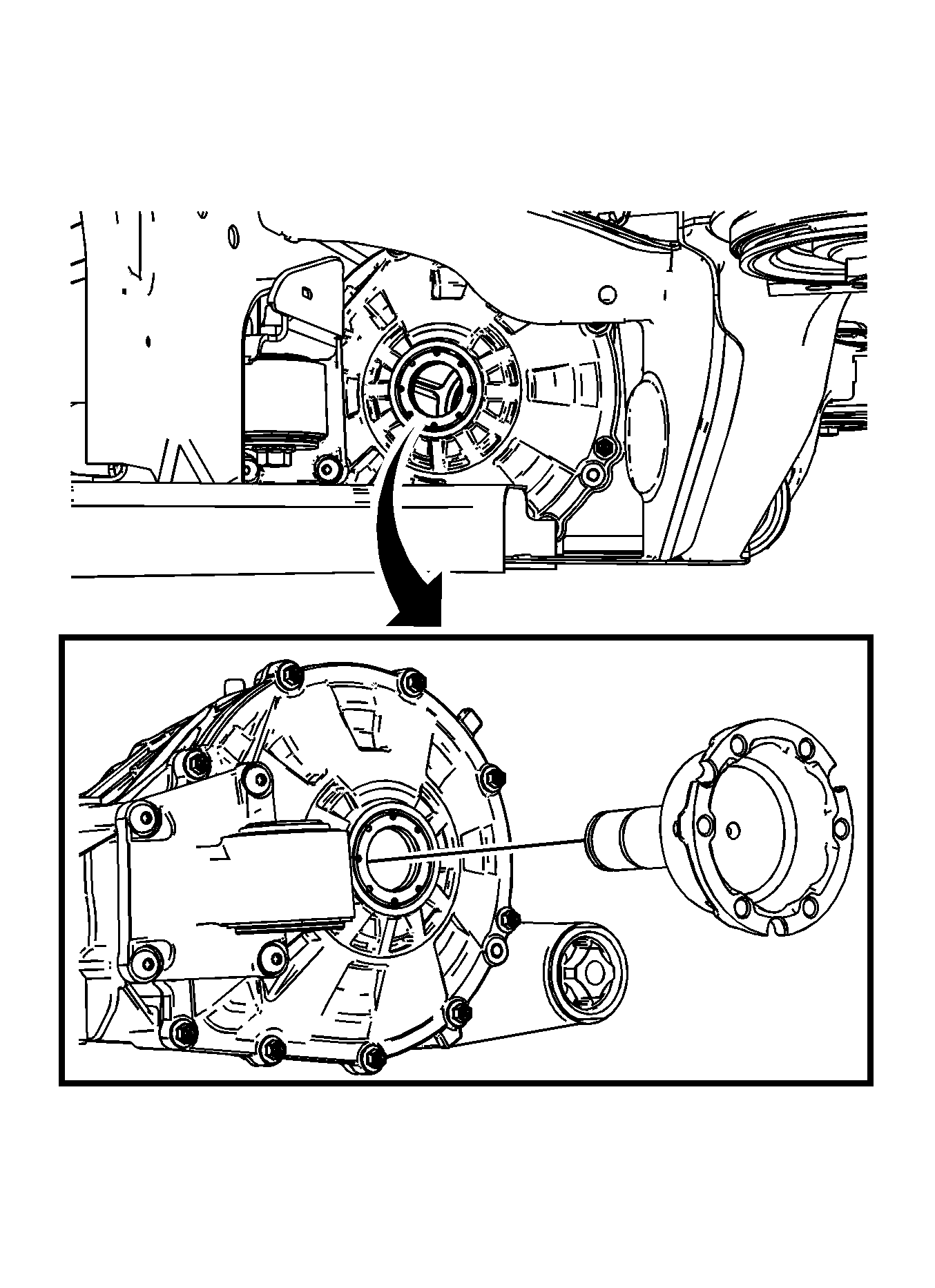

    3. Fig 2: View of Wheel Drive Flange
    GM1979978Courtesy of GENERAL MOTORS CORP.
  3. Using the appropriate tool, install the wheel drive flange in the rear differential.
  4. Install the rear wheel drive shaft. Refer to Rear Propeller Shaft Replacement (RWD) or Rear Propeller Shaft Replacement (AWD) .
  5. Inspect the fluid level of the rear drive axle. Refer to Rear Axle Lubricant Level Inspection .
  6. Remove the support and lower the vehicle.
